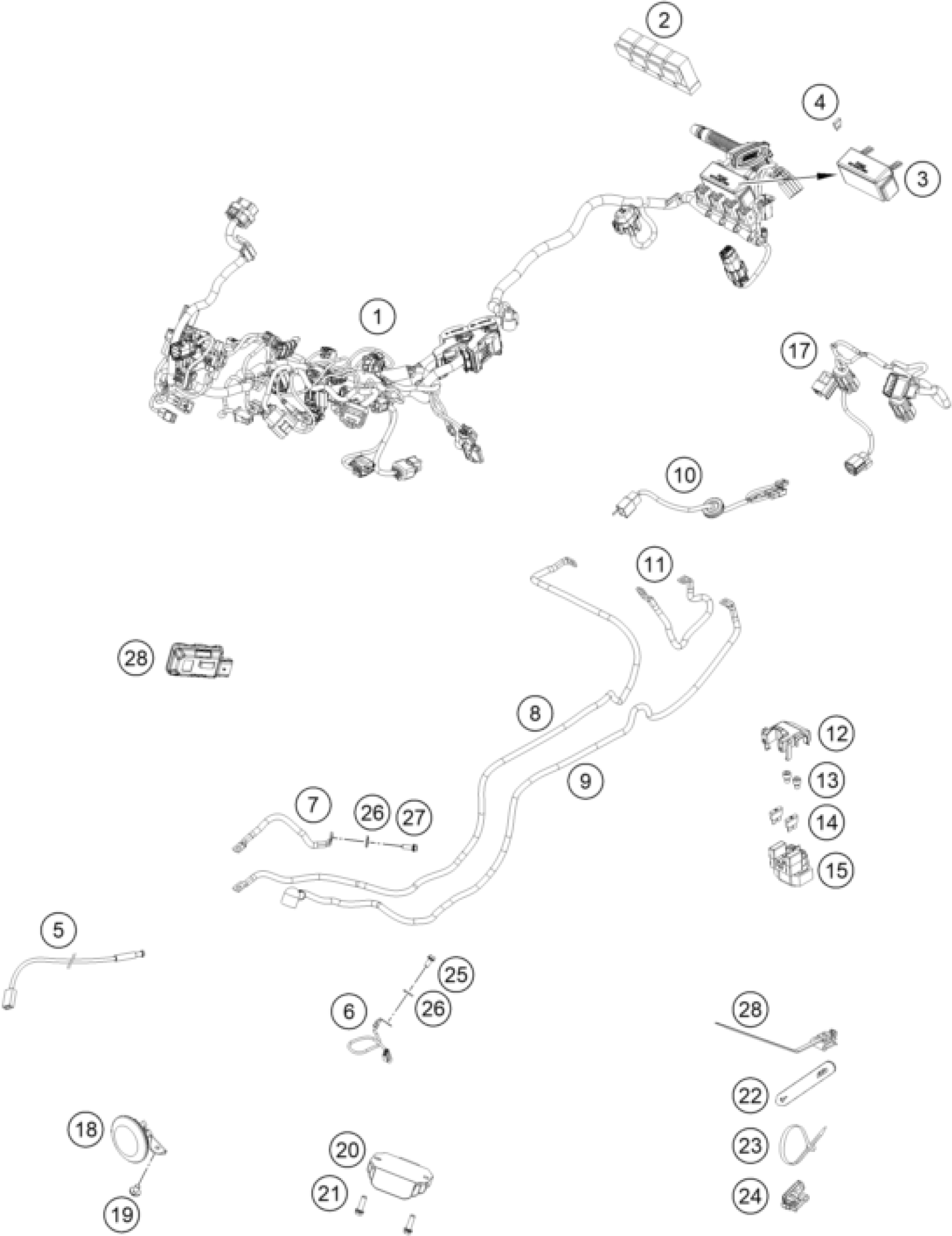

KTM 790 DUKE L, black 2025 WIRING HARNESS Diagram

#

Description

Price

1

Main wiring harness

A66011075000

Unavailable

2

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

3

Fuse Box

61711087050

Unavailable

4

FUSE 10A 07

75011088010

Unavailable

5

TEMPERATURE SENSOR

C61111018100

Unavailable

6

Ground wire tank/frame

C90711197000

Unavailable

7

mass cable starter-frame

C90011096000

Unavailable

8

mass cable starter-battery

C90711097000

Unavailable

9

Starter cable

C90711059000

Unavailable

10

Rear Harness cpl.

C90111076033

Unavailable

11

Battery cable

C90711059050

Unavailable

12

Protection cap starter relay

C90711058010

Unavailable

13

AH OVAL SCREW ISO 7380 M 6X8

C0073800600800

Unavailable

14

FUSE 30 A

C90711109030

Unavailable

15

Starter relay

C66111058000

Unavailable

18

Direct current horn cpl.

C90711060133

Unavailable

19

HH collar screw M6X10 TX30

C0000240601000

Unavailable

20

VOLTAGE REGULATOR

60311034000

Unavailable

21

HH collar screw M6x20 TX30

C0000250602000S

Unavailable

22

RUBBER CABLE TIE 45MM 03

C90711093045

Unavailable

23

CABLE TIE 140/2,5MM BLACK

C90011076140

Unavailable

23

CABLE TIE 250/4,8MM BLACK

C90711076250

Unavailable

24

CABLE TIE W. SOCKET D=6,5

C90711092000

Unavailable

25

HH collar screw M6x12 TX30

C0000250601200

Unavailable

26

Contact washer M6 VSV-K6

C0690000600100

Unavailable

27

HH collar screw M6x16 TX30

C0000250601600

Unavailable

28

UNIT CONNECTIVITY

96314086000

Unavailable

17

Engine wiring harness

63711085000

Unavailable
