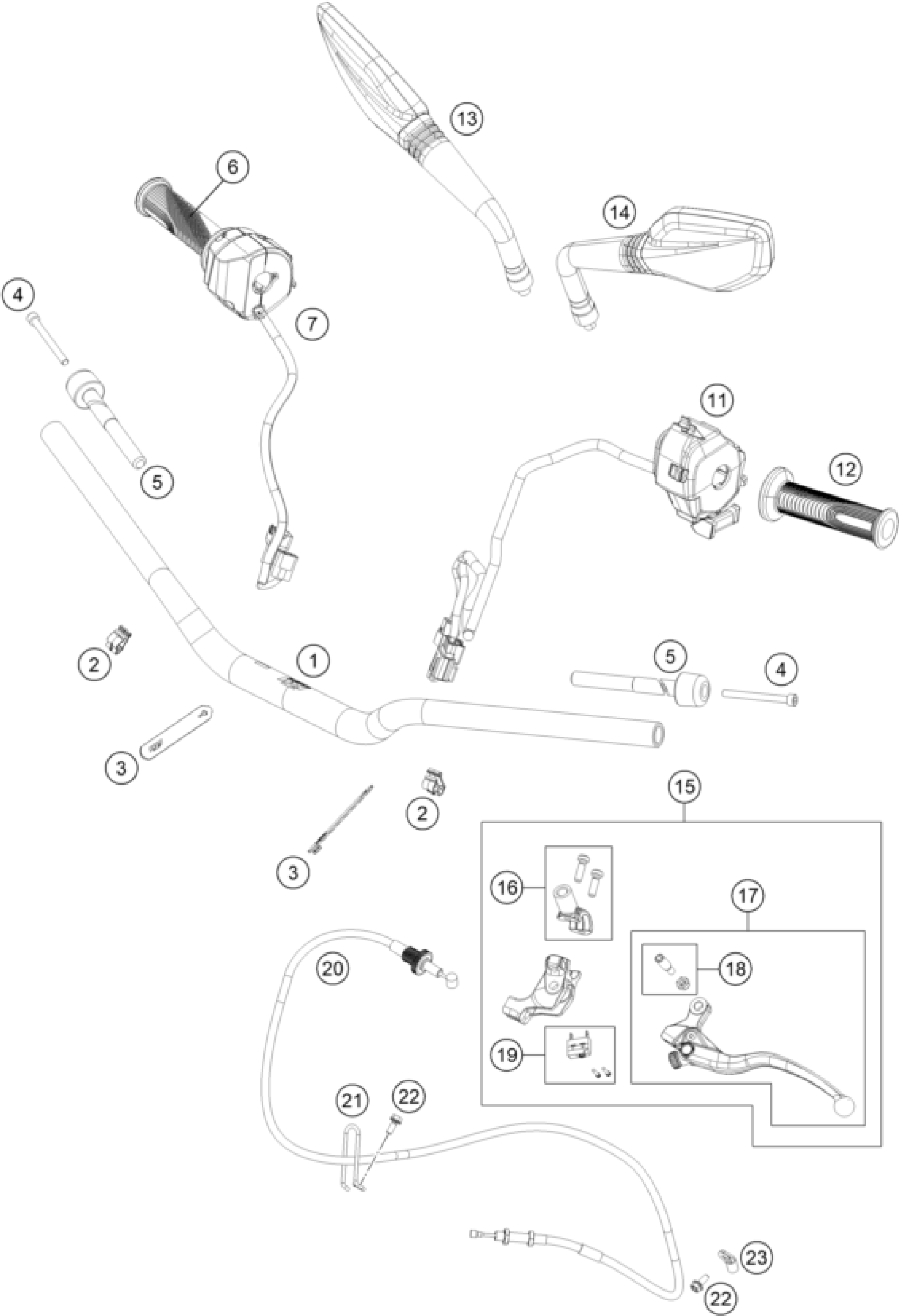

KTM 790 DUKE L, black 2025 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

handlebar L=760mm, Dk=28.5mm

A66002001000C1

Unavailable

2

Line guide

C90713026000

$2.52

3

RUBBER CABLE TIE 45MM 03

C90711093045

$1.49

4

SHCS DIN 912 M6x65

0912060653

$2.05

5

Handlebar weight

C61002004000

Unavailable

6

GRIP ASSEMBLY RH

96302010033

Unavailable

11

Left-hand combination steering

96311170000

$135.99

12

grip left

96302039000

Unavailable

13

Rear view mirror, right

C90712041000

$48.61

14

Rear view mirror, left

C90712040000

$48.61

15

Clutch lever cmpl. Black

A65402131000C1

Unavailable

16

Clamp cpl.

6410204400030

$29.54

17

Clutch lever cpl.

6410204000030

$73.58

18

Kit lever pin

64102038000

$14.39

19

Lever switch

64111049000

$46.93

20

Clutch cable

C66002090000

Unavailable

21

Clutch cable wire guide

C90702097000

$2.05

22

HH collar screw M5x12 TX30

C0000250501200

$1.49

23

PVC clamp 6.4 MM Heyman

64132070000

$1.49

7

E-Throttle set w/o gripheater

96311012044

Unavailable
