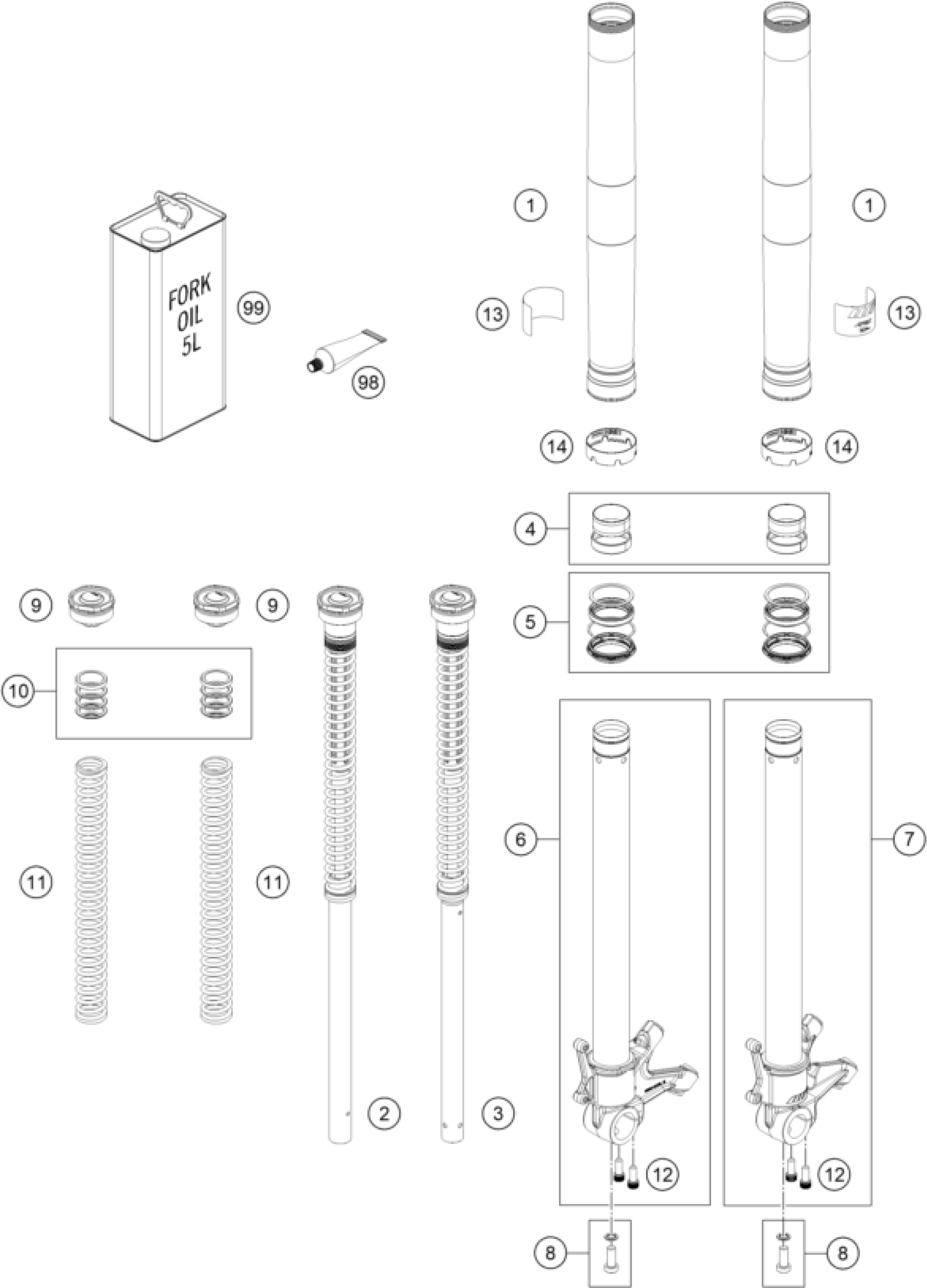

KTM 790 DUKE L, black 2025 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

fork outer tube 44,33x515 dt54

43578257

Unavailable

2

Cartridge right KTM 790 Duke M

43578176S12

Unavailable

3

Cartridge left KTM 790 Duke MY

43578195S12

Unavailable

4

GUIDE BUSHING SET

R14042T

Unavailable

5

Fork sealing kit 43mm

R516T

Unavailable

6

Fork shoe right d43mm cmpl.

43578097S1

Unavailable

7

Fork shoe left d43mm cmpl.

43578096S1

Unavailable

8

HS cylinder-head screw M10x25

43578177S1

Unavailable

9

screw cap M51x1.5 cpl.

43578209S1

Unavailable

10

Shim Kit Fork

RP80002

Unavailable

11

main spring (38,2) 5-7.8-345 s

95020004S

Unavailable

11

mainspring (37) 6-9 345 fork

43578135

Unavailable

11

Main Spring (38.2) 7-10-345 se

95020005S

Unavailable

12

HH collar screw M8x20

0025080206

Unavailable

13

Sticker set, APEX PRO OC 90x40

52000209SET

Unavailable

98

Fuchs grease IPR (250g)

T14034

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

14

Fork protection ring d43

43578206

Unavailable
