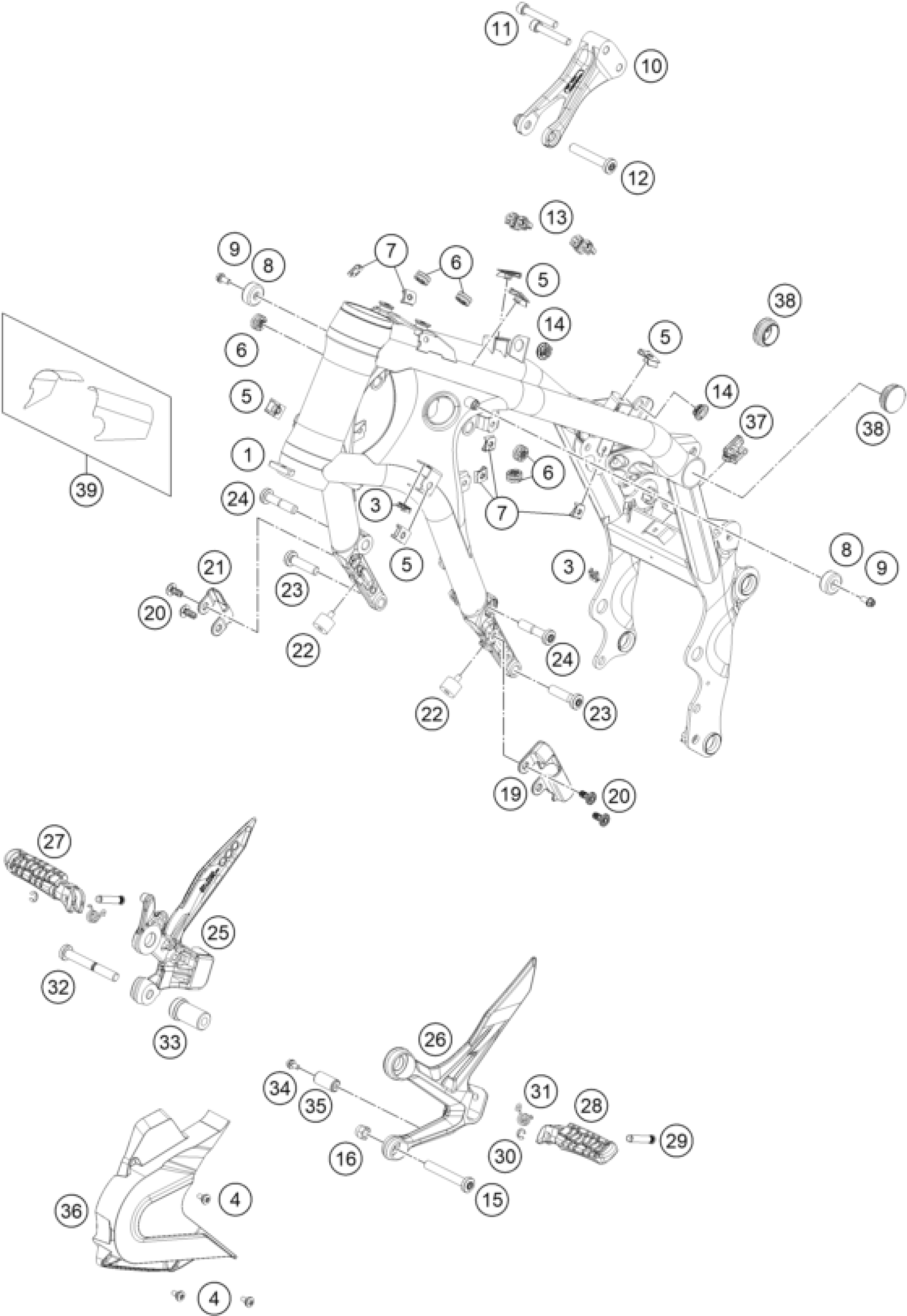

KTM 790 DUKE L, black 2025 FRAME Diagram

#

Description

Price

1

Frame 641 RA black

C90103001000C1

Unavailable

3

clip nut M5

69008021080

Unavailable

4

Special screw M5x12

69008121160

Unavailable

5

clip nut M6

54603048100

Unavailable

6

Damper ABS modulator

C90742041000

Unavailable

7

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

8

Fuel tank role

C90707014000

Unavailable

9

Hex collar screw M6x12 ISA30 s

C0000250601200S

Unavailable

10

Engine strut black

C90703013000C1

Unavailable

11

CYL. SCREW DIN14579 M8X50 SS

C0145790805000S

Unavailable

12

AH-COLLAR SCREW M10X60 ISA45

C0000351006000S

Unavailable

13

Bracket ABS line d7.5

C90742046000

Unavailable

14

Quick-lock coupling

C90706003060

Unavailable

15

ISA screw, M10x65 ISA45

C0000351006500S

Unavailable

16

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

19

Cable guidance left

C90703034000

Unavailable

20

Fastening plug M8

C90703034020

Unavailable

21

Cable guidance right

C90703035000

Unavailable

22

silentbloc 20x15-M6x10-(1)

C90705062000

Unavailable

23

ISA collar screw M10x40 ISA45

C0000351004000S

Unavailable

24

ISA screw M10x45 ISA45

C0000351004500S

Unavailable

25

Front footpeg bracket, right

C90703039000C1

Unavailable

26

Front footpeg bracket left

C90703038000C1

Unavailable

27

FOOTREST FRONT R/S CPL. 05

C90703041000

Unavailable

28

FOOTREST FRONT L/S CPL. 05

C90703040000

Unavailable

29

footrest bolt, rear

C90703044000

Unavailable

30

retaining washer DIN 6799 - 6

0799060003

Unavailable

31

RETURN SPRING FOOTREST

C90703042000

Unavailable

32

ISA collar screw M10x80 ISA45

C0000351008000S

Unavailable

33

Distance piece

C90703039001C1

Unavailable

34

Hex coll. screw M5x10 ISA30 se

0025050106S

Unavailable

35

Roller

C90703038001C1

Unavailable

36

Front sprocket cover

C90703096000

Unavailable

37

Cable holder, attachable

64111059020

Unavailable

38

Locking cap frame

C90703088000

Unavailable

39

Set protection sticker frame

C90703092044

Unavailable
