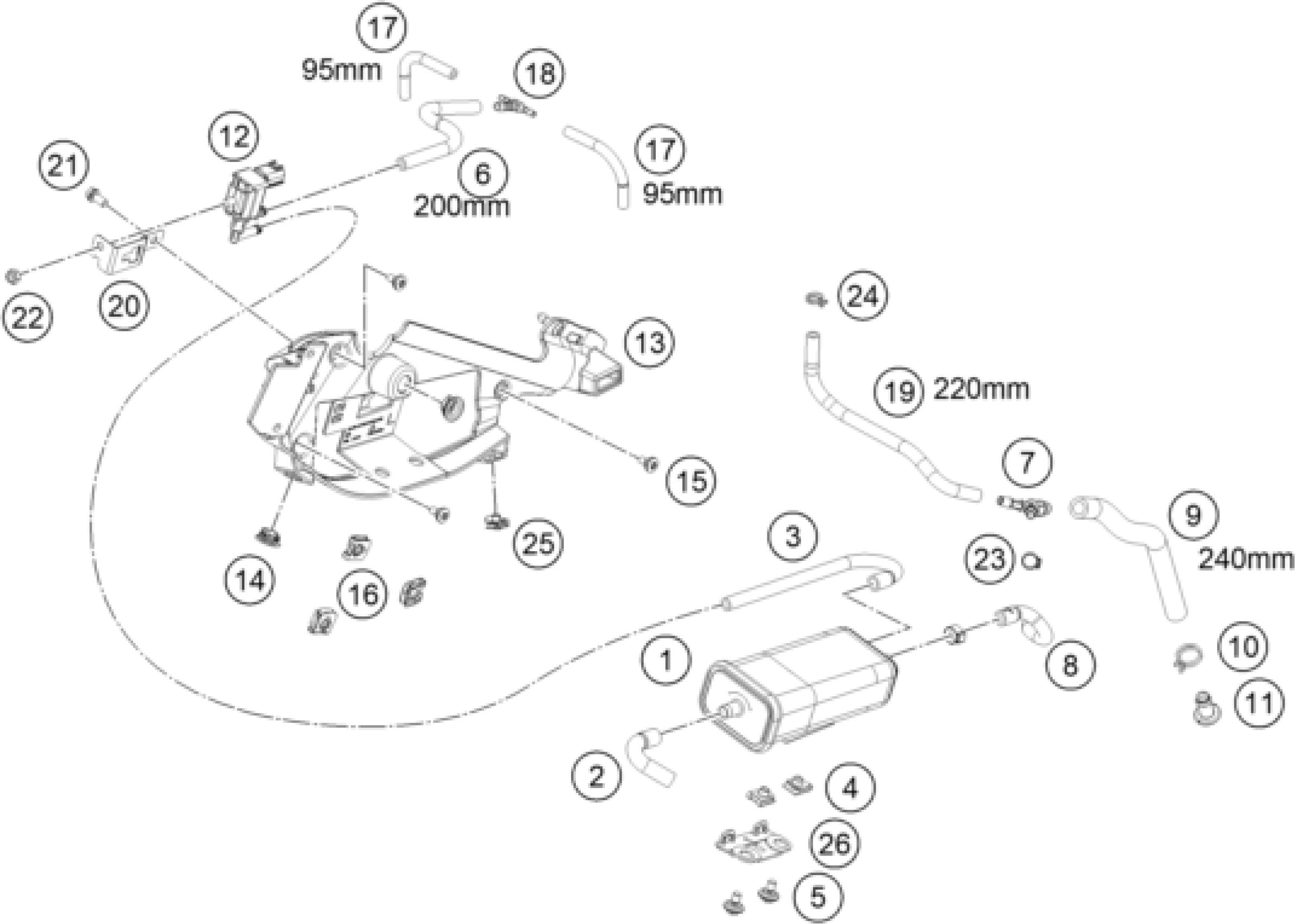

KTM 790 DUKE L, black 2025 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

Evaporative canister

C90715001000

Unavailable

2

Hose evaporative canister blee

C90715021000

Unavailable

3

Pre-formed hose ACF

C67615021000

Unavailable

4

clip nut M5

69008021080

Unavailable

5

Special screw M5x12

69008121160

Unavailable

6

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

7

Y-junction YS 6-10-6

C90715028000

Unavailable

8

C90715023000

Unavailable

9

C90715019240

Unavailable

10

Hose clamp wire D=15.5

C90731082000

Unavailable

11

ACF plug

C90715026000

Unavailable

12

Purge valve

A62415015000

Unavailable

13

Cover left cpl.

C66003081044

Unavailable

14

quick release rubber grommet

47106003160

Unavailable

15

special screw M5x12

69008021160

Unavailable

16

RANGE CHANGE METAL NUT M6 INOX

54603048300

Unavailable

17

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

18

Hose connection nozzles

64115026000

Unavailable

20

Bracket purge valve

C66003081010

Unavailable

21

HH collar screw M6x12 TX30

0025060126

Unavailable

22

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

23

stepless one-ear clamp

00050109706

Unavailable

24

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

25

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

26

3rd o2 conncetor bracket

C66003081020

Unavailable

19

C90715019220

Unavailable
