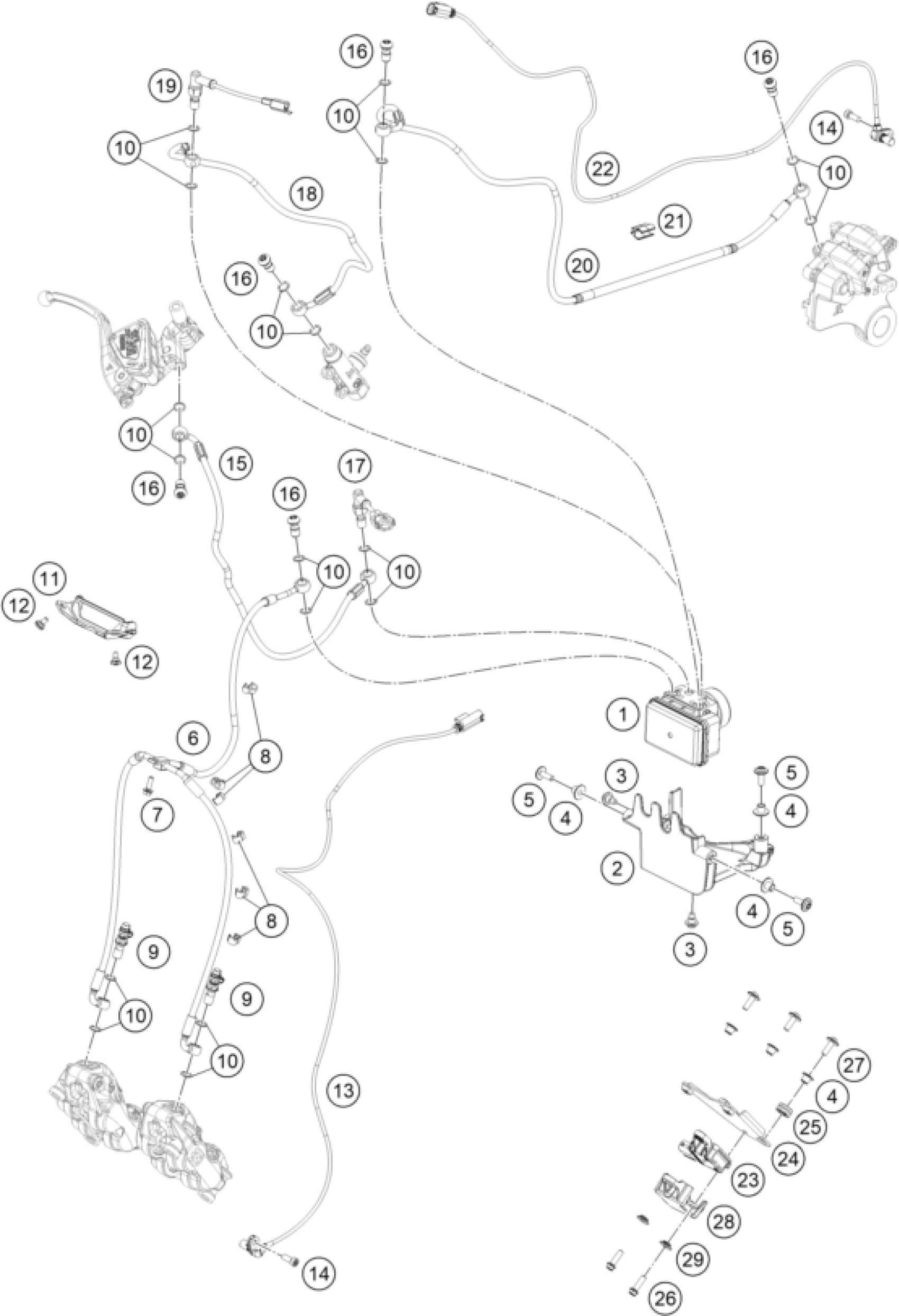

KTM 790 DUKE L, black 2025 ABS Diagram

#

Description

Price

1

ABS module filled

A61042031044

$3,234.62

2

Bracket ABS modulator

C90742040000

$18.78

3

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

4

Collar bushing 6,5x9x18x8.5

61342041100

$1.49

5

SPECIAL SCREW M6X18 ISA30 08

C90714017000

$1.49

6

Brake line, front

A65442003000

$44.22

7

HH collar screw M6x12 TX30

C0000250601200

$1.49

8

BAR SPACER 4/7 BLACK

C90711094000

$1.49

9

Bleeder screw cpl. 05

C62513020000

Unavailable

10

sealing ring DIN 7603 10x14x1

0603100141

$2.05

11

Brake line guide

C90742003070

Unavailable

12

HH collar screw M5x12 TX30

C0000250501200

$1.49

13

Wheel speed sensor

A60742025000

$54.32

14

SHCS ISO 14580 M6x16

C0145800601600

$1.49

15

Brake line, front

A65442005000

$125.56

16

banjo bolt M10x1x19.5

C62113020100

$9.53

17

Brake light switch

63711051000

$50.86

18

Brake line, rear

A65442202000

Unavailable

19

BRAKE LIGHT SWITCH REAR

60311051000

$43.66

20

Brake line, rear

A65442204000

Unavailable

21

Hose bracket 10/4

C90713026100

$1.49

22

Wheel speed sensor DF30

A61042025000

$63.57

23

Angle sensor

61542090000

$391.01

24

Retaining bracket 6D sensor

C90742090050

$9.90

25

Damper ABS modulator

C90742041000

$1.49

26

HH collar screw M6x20 TX30

C0000250602000S

$1.49

27

SPECIAL SCREW M6X18 ISA30 08

C90714017000

$1.49

28

COVER SENSOR BOX

C61342090050

$1.49

29

Collar bushing 6x11x16x5 Al

C79608052000

Unavailable
