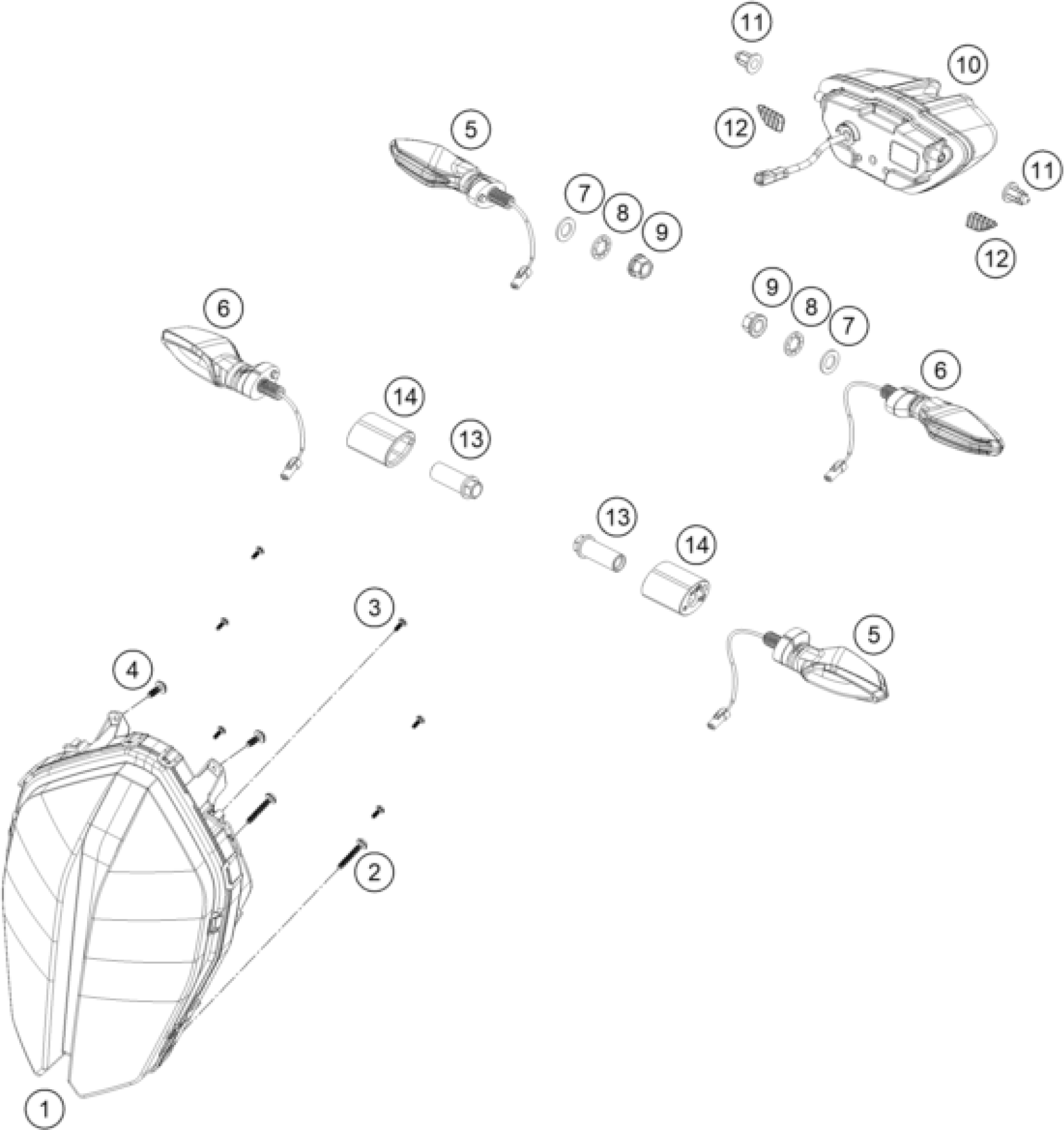

KTM 790 DUKE, grey 2023 LIGHTING SYSTEM Diagram

#

Description

Price

1

Headlight

63614001000

Unavailable

2

Ejot PT screw 4x25 WN 5451

0081040253

Unavailable

3

Ejot PT screw 3x8 WN 5451 blac

0081030081

Unavailable

4

SCREW FOR PLASTIC K45X12 T20

0081045121

Unavailable

5

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

6

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

7

Washer DIN0433-M10

0433100003

Unavailable

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

9

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

10

Tail light

64114040000

Unavailable

11

Rubber damper top

C90708015060

Unavailable

12

Rubber damper bottom

C90708015070

Unavailable

13

Nut indic. Carr. Extension USA

C90714525020

Unavailable

14

Turn signal support adapter US

C90714525010

Unavailable
