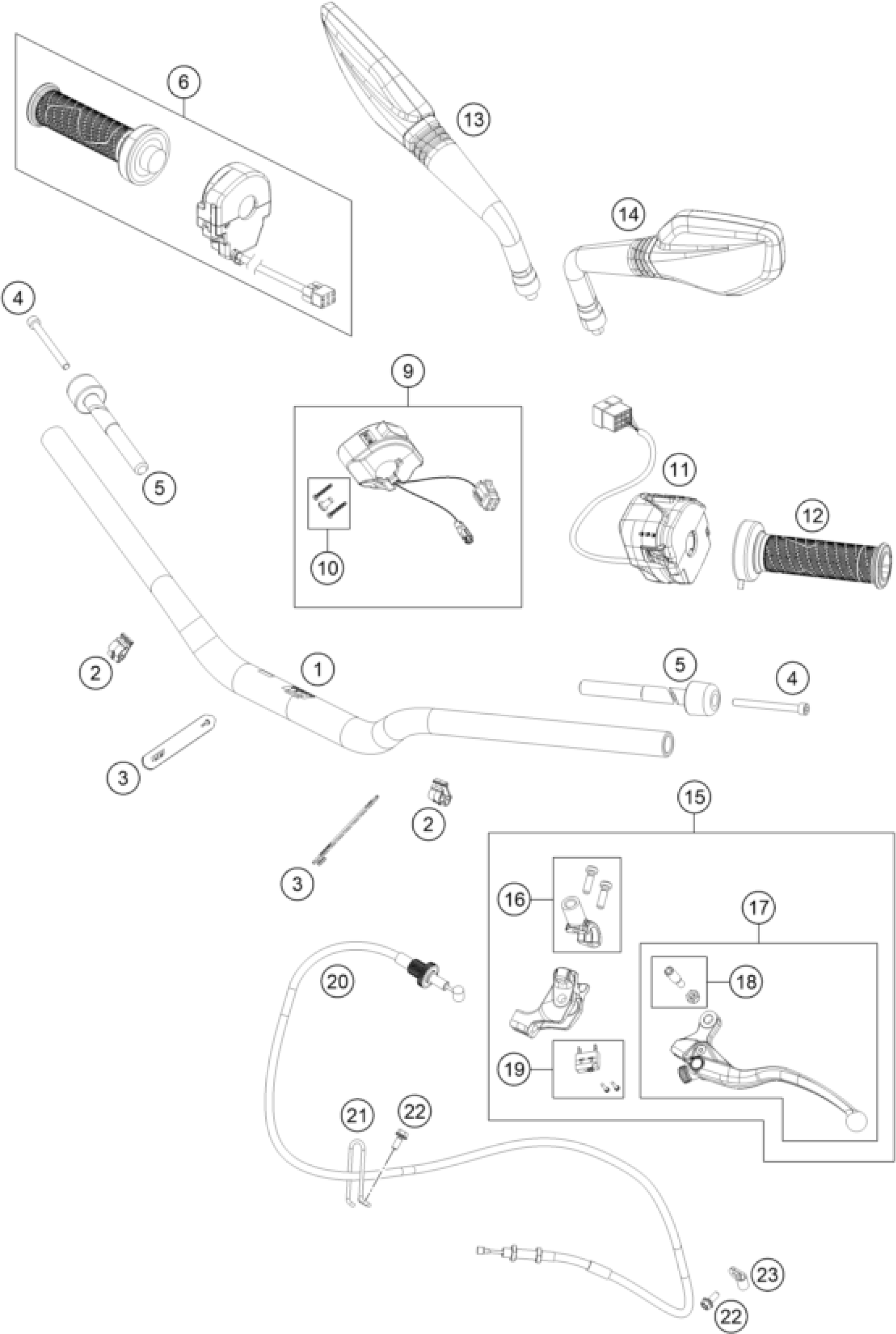

KTM 790 DUKE, grey 2023 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

Handlebar L=743mm, Dk=28,5mm

A65402001000C1

Unavailable

2

Line guide

C90713026000

Unavailable

3

RUBBER CABLE TIE 45MM 03

C90711093045

Unavailable

4

SHCS DIN 912 M6x65

0912060653

Unavailable

5

Handlebar weight

C90702004000

Unavailable

6

Ride-by-Wire sys. cmpl. w/o gr

61711012044

Unavailable

9

emergency OFF switch

76011074000

Unavailable

10

Screw set start-stop switch

61411174010

Unavailable

11

Combination switch

76011170200

Unavailable

12

Fixed grip without heating

61702039000

Unavailable

13

MIRROR R/S

C90412041000

Unavailable

14

MIRROR L/S

C90412040000

Unavailable

15

Clutch lever cmpl. blk.

A65402031000C1

Unavailable

16

Clamp cpl.

6410204400030

Unavailable

17

Clutch lever cpl.

6410204000030

Unavailable

18

Kit lever pin

64102038000

Unavailable

19

Lever switch

64111049000

Unavailable

20

Clutch cable

C90102090000

Unavailable

21

Clutch cable wire guide

C90702097000

Unavailable

22

HH collar screw M5x12 TX30

C0000250501200

Unavailable

23

PVC clamp 6.4 MM Heyman

64132070000

Unavailable
