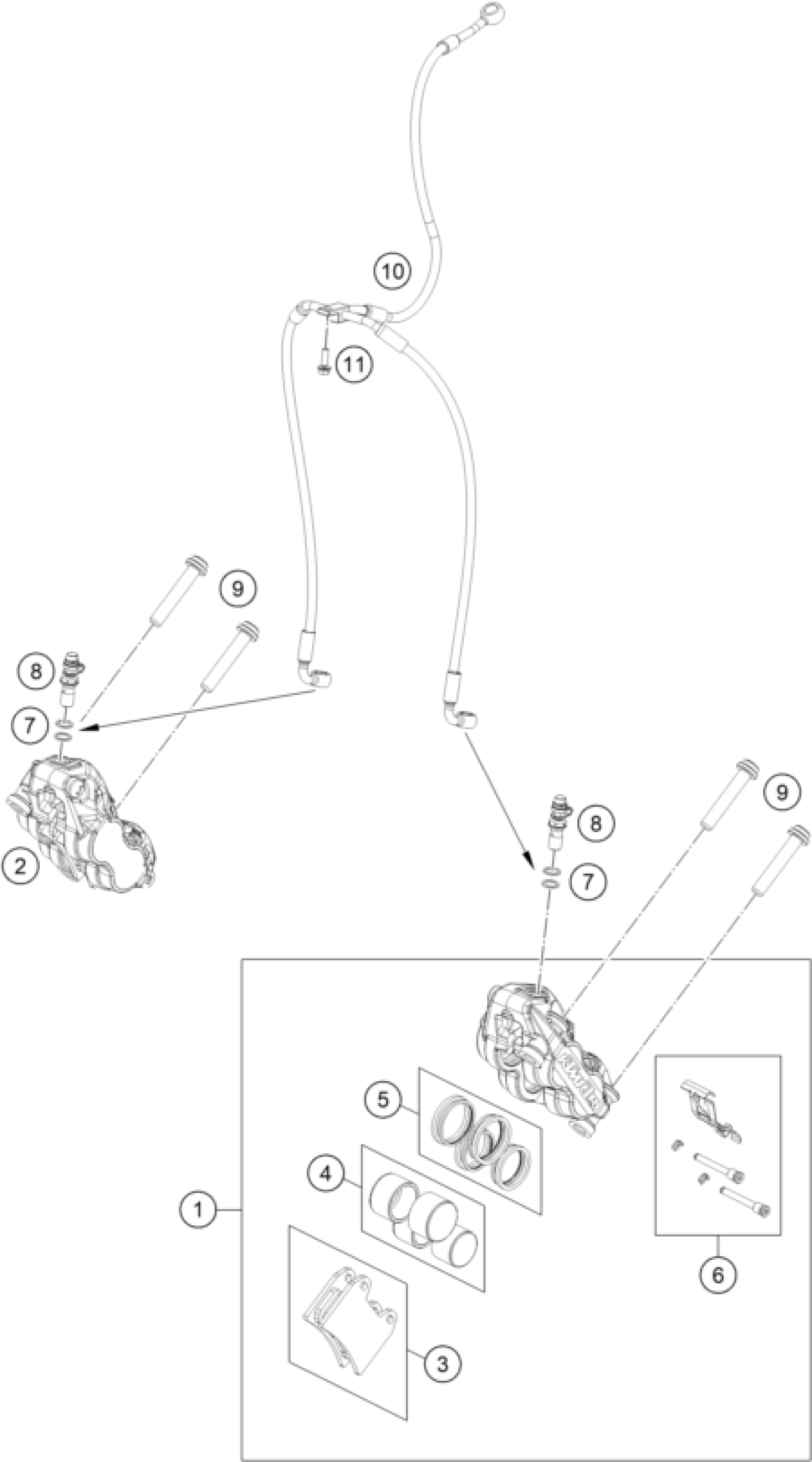

KTM 790 DUKE, grey 2022 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

Front brake caliper, left

A65413015000

Unavailable

2

Brake caliper, front, right

A65413016000

Unavailable

3

Front brake pad

63613030000

$46.74

4

Piston set

63513019000

$46.55

5

Seal set

63613021000

$17.57

6

Retaining spring set

64113017000

$47.96

7

sealing ring DIN 7603 10x14x1

0603100141

$2.05

8

BLEEDER SCREW CPL. 05

62513020000

$27.48

9

AH-COLLAR SCREW M10X1,25X55SS

C0000351005500S

$3.08

10

Brake line, front

A65442003000

$44.22

11

HH collar screw M6x12 TX30

C0000250601200

$1.49
