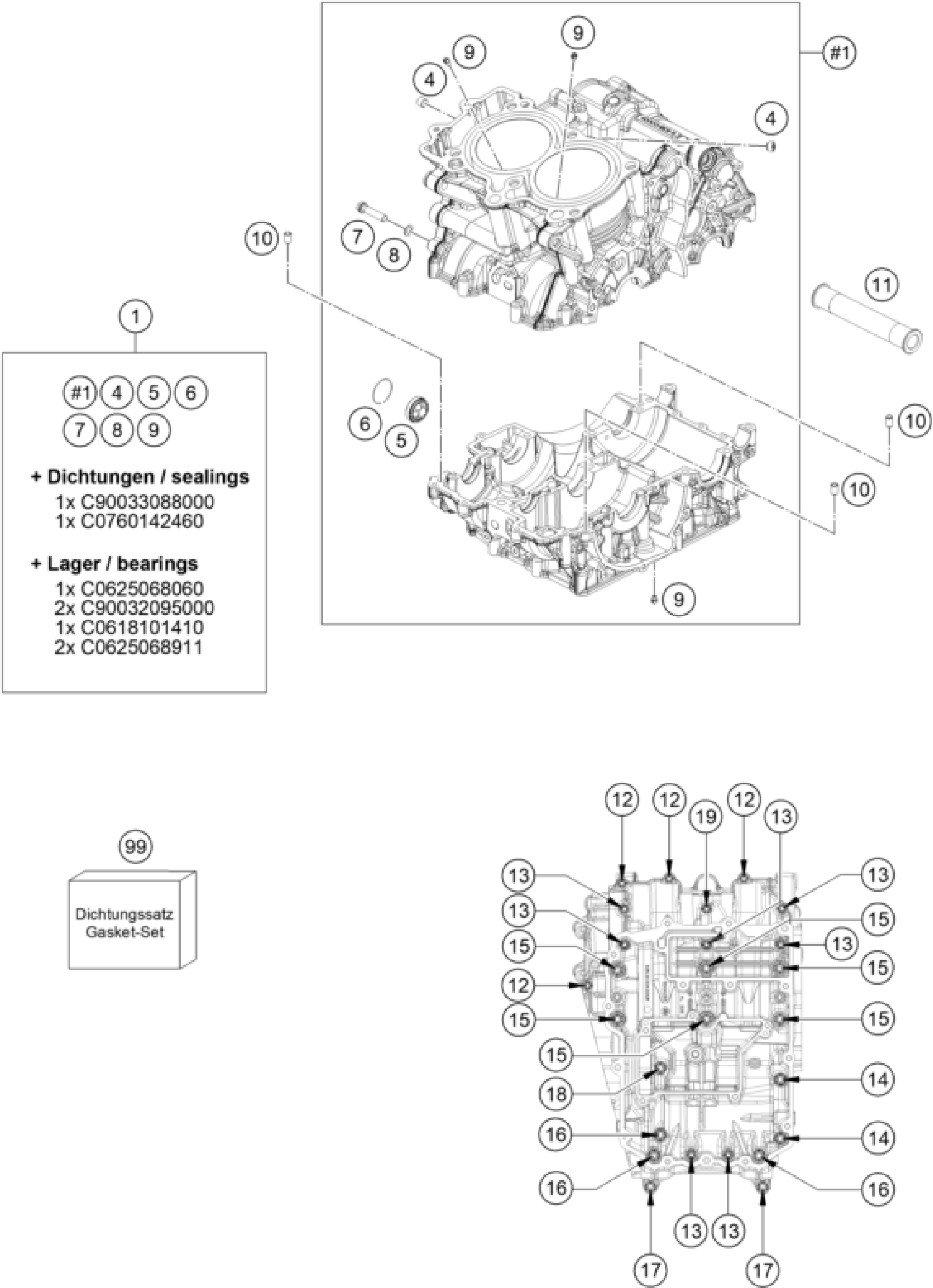

KTM 790 DUKE, black - CKD w/o engine 2021 ENGINE CASE Diagram

#

Description

Price

1

Engine case compl.

C9003000024424

$2,061.67

4

Screw 10X1-8 DIN 906

C0906100100

Unavailable

5

OIL SIGHT GLASS

59030019200

$21.31

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

7

Screw M8x35

C0025080356

Unavailable

8

Cu ring d8,2/13/1

C0603082131

$1.49

9

oil jet 70 M5

C90030063070

$3.08

10

Dowel

C90030024000

$3.08

11

housing socket

C90030010000

Unavailable

12

Hex collar scr., M6x30, ISA 30

C00002506030U0

$1.49

13

Hex collar scr., M6x60, ISA 30

C00002506060U0

$1.49

14

Screw M8x90

C0025080906

Unavailable

15

Hex collar scr., M8x90, ISA 40

C00002508090U0

$1.49

16

Screw M8x65

C0025080656

Unavailable

17

Screw M8x55

C0025080556

Unavailable

18

Screw M8x45

C0025080456

Unavailable

19

Hexagon collar nut M8x65 ISA 4

C00002508065U0

$1.49

99

Engine gasket kit

C90030099000

$143.79
