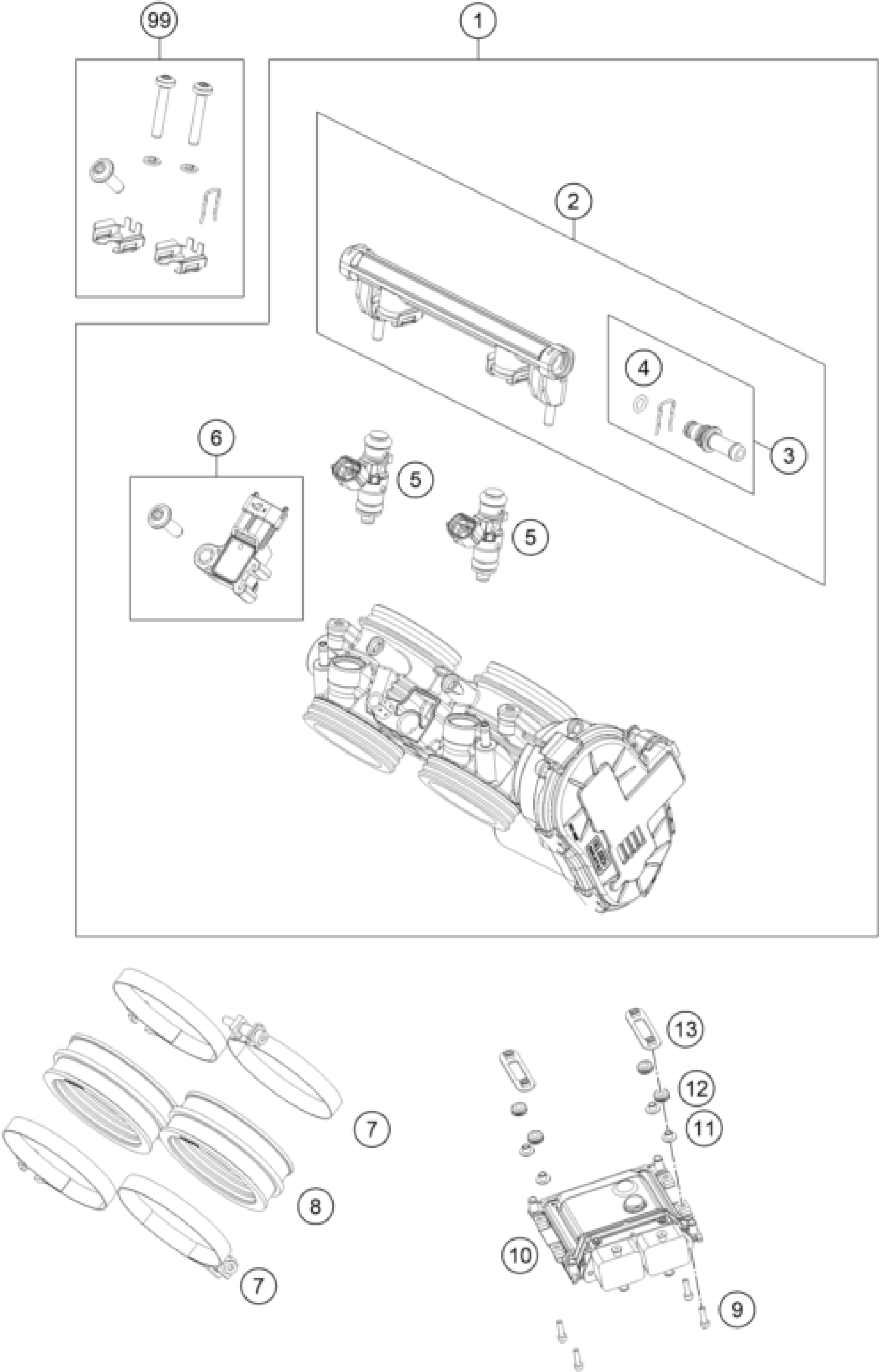

KTM 790 Duke, black 2020 THROTTLE BODY Diagram

#

Description

Price

1

throttle body

63541001000

$905.16

2

Fuel pipe

63541013050

$151.46

3

Fuel connector cmpl.

63541013044

$37.77

4

Square and dust seal

63541013010

$3.08

5

FUEL INJECTOR

90841123000

$151.84

6

MAP sensor cmpl.

63541085044

$230.10

7

hose clamp Gemi 66

61236048000

$9.53

8

Intake Sleeve

63536044000

$27.57

9

AH screw DIN0912 M4x16 self-lo

0912040163S

$1.49

10

EFI control unit

63541031100

$1,173.04

11

Collar Bushing 4.5x6x12x6.3

64141030010

$2.05

12

Rubber grommet control unit

64141030000

$1.49

13

Mounting Bracket ECU cpl.

64141029000

$9.06

99

Smallpart Kit

63541099000

$42.91
