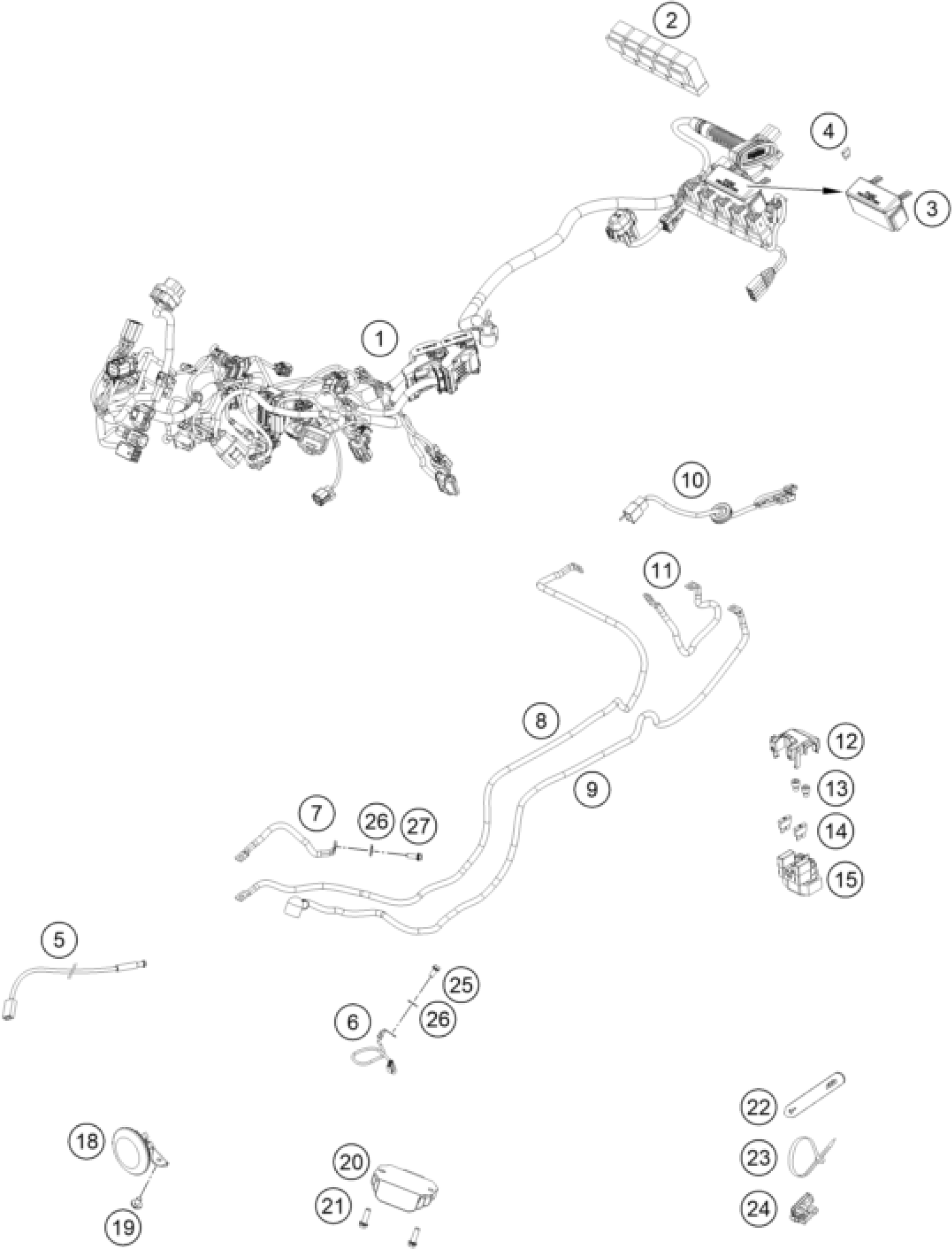

KTM 790 Duke black 2018 WIRING HARNESS Diagram

#

Description

Price

1

main wiring harness

64111075000

$875.24

2

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

3

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

4

FUSE 10A 07

75011088010

Unavailable

5

Temperatur sensor

61111018100

$31.59

6

mass cable tank-frame

64111197000

$7.66

7

mass cable starter-frame

64111096000

$8.69

8

mass cable starter-battery

64111097000

$27.67

9

starter cable

64111059000

$19.16

10

rear harness cpl.

64111076033

$25.98

11

battery cable

64111059050

$11.30

12

Cover cap starter relay

64111058010

$3.08

13

AH collar screw DIN 912 M6x8

0912060083

$2.05

14

Plug-in fuse, big 30A

58011109130

$2.05

15

Starter relay

76211058000

$79.19

18

Direct current horn cpl.

64111060133

$36.64

19

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

20

VOLTAGE REGULATOR

60311034000

$177.55

21

HH collar screw M6x20 TX30

0025060206S

$2.05

22

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

23

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

23

Cable tie 200/4.6mm black

44011076200

Unavailable

24

Cable tie w. socket D=6.5

69011092000

$1.49

25

HH collar screw M6x12 TX30

0025060126

$3.08

26

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

27

HH collar screw M6x16 TX30

0025060166

$3.08
