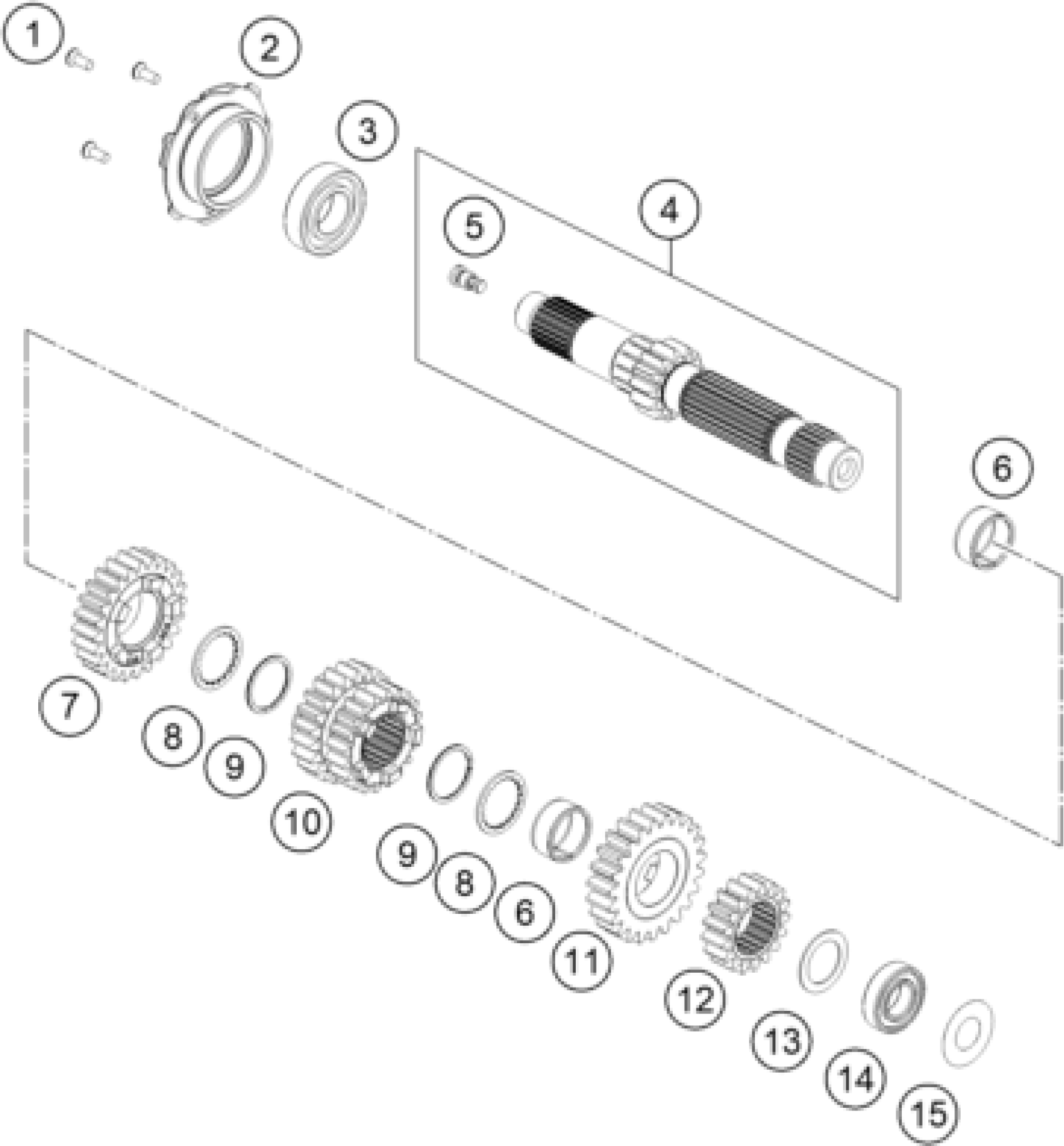

KTM 790 Duke black 2018 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

Hex screw ISO10642-M6x16 self-

010642060166S

$1.49

2

flange bearing

63530068000

$48.24

3

ball bearing 62/28 CM

0625062280

$13.46

4

Main shaft preassembled

63533001044

$131.17

5

reducing jet Ø0.3mm M8

63533001030

$8.69

6

NEEDLE BEAR.K 24X28X13 DIVIDED

0405242813G

$18.50

7

Idler gear 5. G

63533005000

$35.80

8

toothed washer

63533045000

$3.08

9

circlip d26

0471026000

$3.73

10

Sliding gear 3/4 G

63533003000

$60.30

11

Idler gear 6. G

63533006000

$40.85

12

Solid gear 2. G

63533002000

$17.94

13

stop disc 22.2/31.7/1

63533032000

$3.08

14

ball bearing 6891 PH C3H

0625068910

$30.19

15

sealing washer 22x44x0.2

63533088000

$6.54
