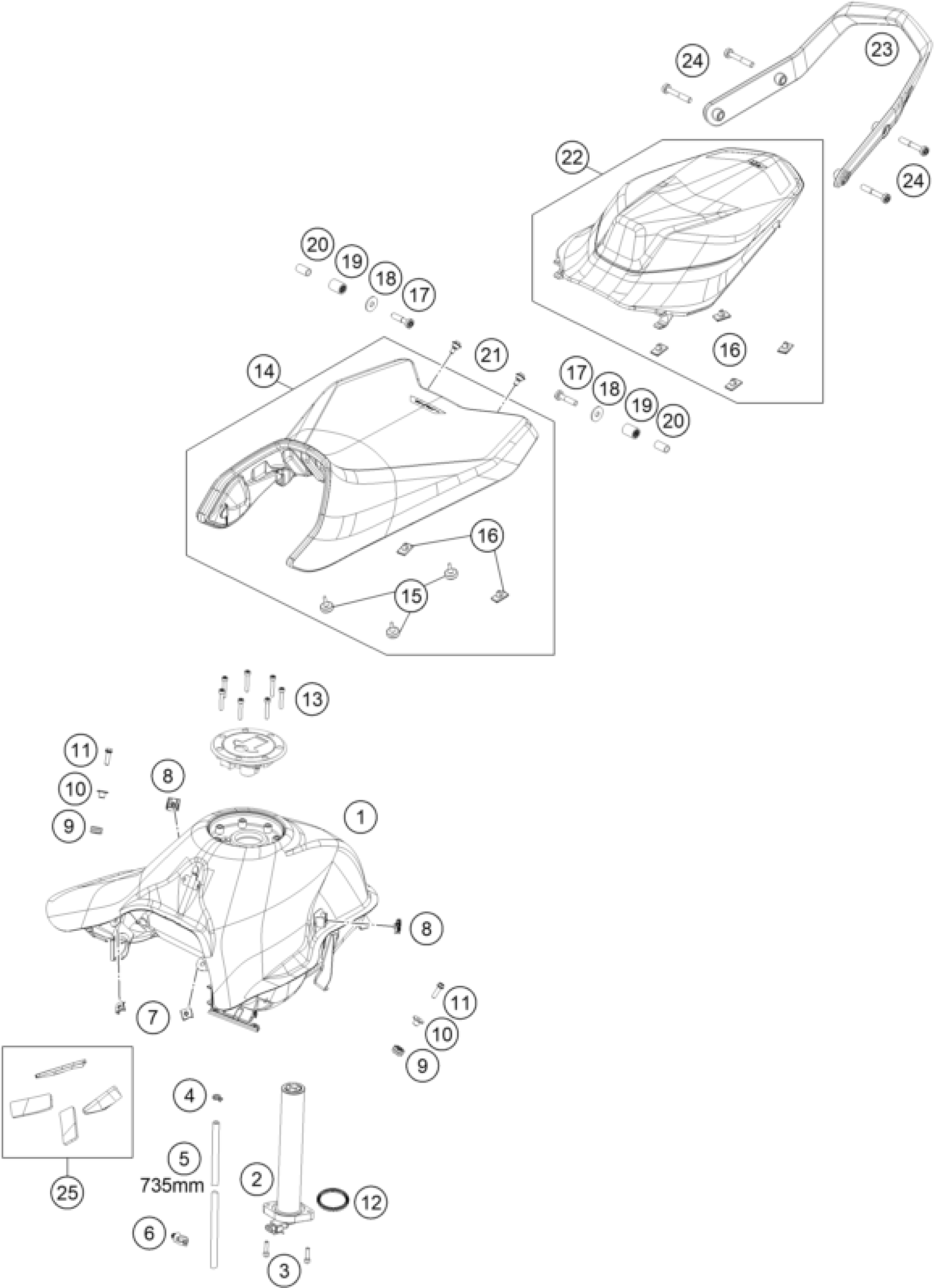

KTM 790 Duke black 2018 TANK, SEAT Diagram

#

Description

Price

1

Fuel tank stell silver with de

64107013000BHA

Unavailable

2

Fuel level sensor

64107080100

Unavailable

3

AH SCREW DIN0912-M 5X20

0912050203

Unavailable

4

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

5

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

6

Cable tie w. socket D=6.5

69011092000

Unavailable

7

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

8

RANGE CHANGE METAL NUT M6 INOX

54603048300

Unavailable

9

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

10

Collar bushing 6.5X9X18X8.5

61342041000

Unavailable

11

HH collar screw M6x20 TX30

0025060206

Unavailable

13

Screw ISO 14579-M5x30-8.8-P3R

014579050301

Unavailable

14

rider seat cpl.

64107040000

Unavailable

15

Distance rupper airbox 03

60006001021

Unavailable

16

Isolation pad

77307040041

Unavailable

17

AH-COLLAR SCREW M8X35 ISA45

0035080356

Unavailable

18

WASHER DIN9021-A 8,4

0021080003

Unavailable

19

RUBBER SEAT-CONTACT SURFACE

60307048000

Unavailable

20

BUSHING 8.4X12X21.5

61407049000

Unavailable

21

Special screw M6x15x5.5

83008100015

Unavailable

22

Passenger seat cmpl.

64107047033

Unavailable

23

Pillion Handle Bar

64112008100

Unavailable

24

AH collar screw M8x50 ISA45

0035080506S

Unavailable

25

Tank Protection Set Metamoll

64107012000

Unavailable

12

Gasket fuel lever sensor

60307080090

Unavailable
