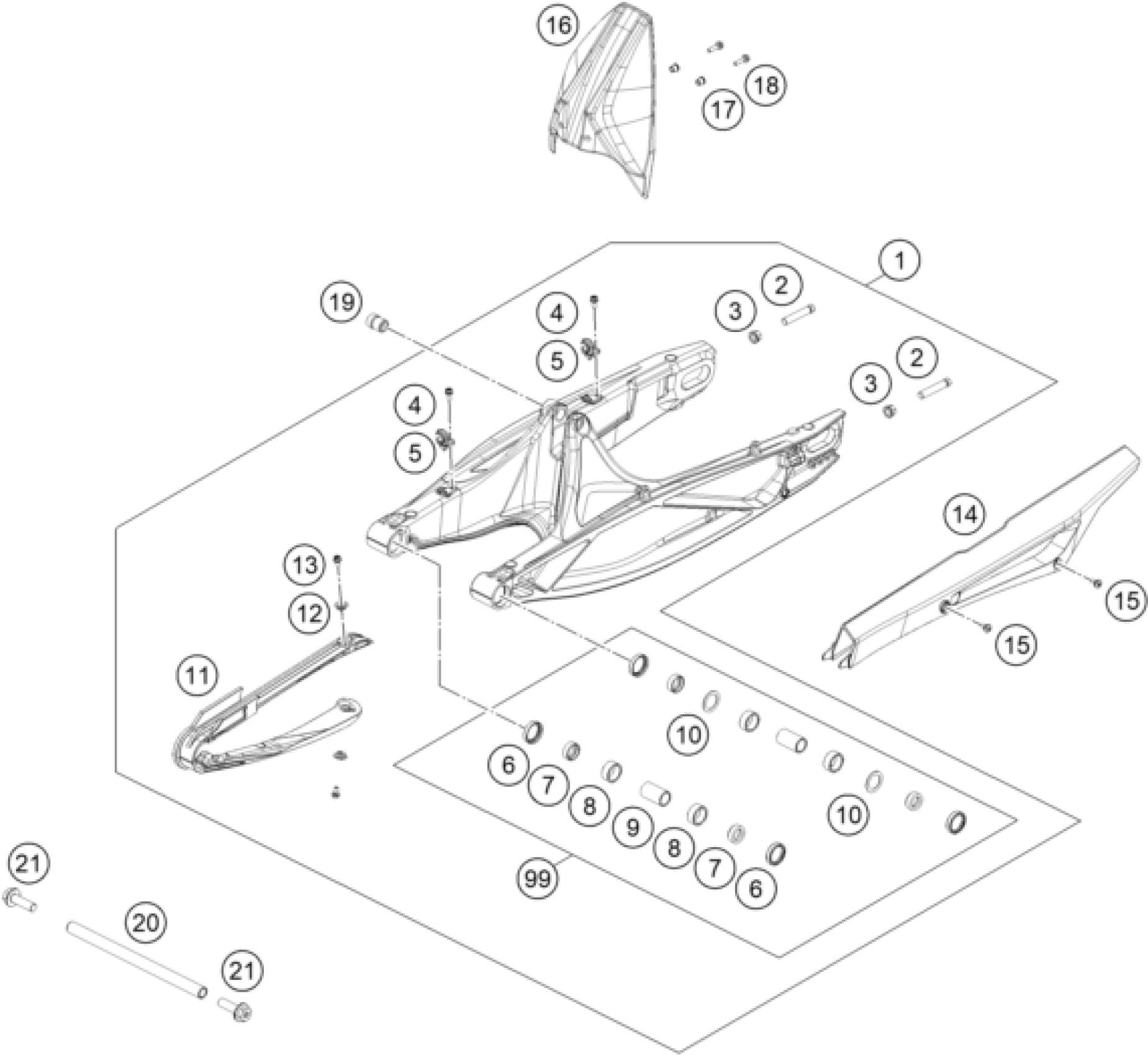

KTM 790 Duke black 2018 SWING ARM Diagram

#

Description

Price

1

Swingarm cpl. black

6410403004433

$1,002.12

2

screw M10x1.25x50 WS10

50304040100

$5.23

3

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

4

HH collar screw M5x12 TX30

0025050126

$3.08

5

Clamp

60104142000

$2.05

6

radial shaft seal 25x32x7

0760253270

$6.63

7

Bucket f. shaft seal ring 03

54804034000

$5.23

8

Needle bushing HK2212V 22/28/1

0618222812

$9.81

9

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

10

STOP DISK 22,2X31,7X1

54603036000

$3.08

11

chain slide protection

64104066000

$24.77

12

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

13

HH collar screw M5x10 TX30

0025050106

$1.49

14

chainguard

64104061000

$8.03

15

special screw M5x12

69008021160

$4.11

16

rear fender

64104050000

$23.74

17

bushing 5,5x8,3x9

64104050010

$2.05

18

HH collar screw M5x20 TX30

0025050206

$2.05

19

bushing shock mounting

64104030020

$16.35

20

swing arm bolt

64104037000

$58.80

21

Special screw M12x40 WS19

76504038000

$18.13

99

SWING ARM REPAIR KIT SX-F

79004030010

Unavailable
