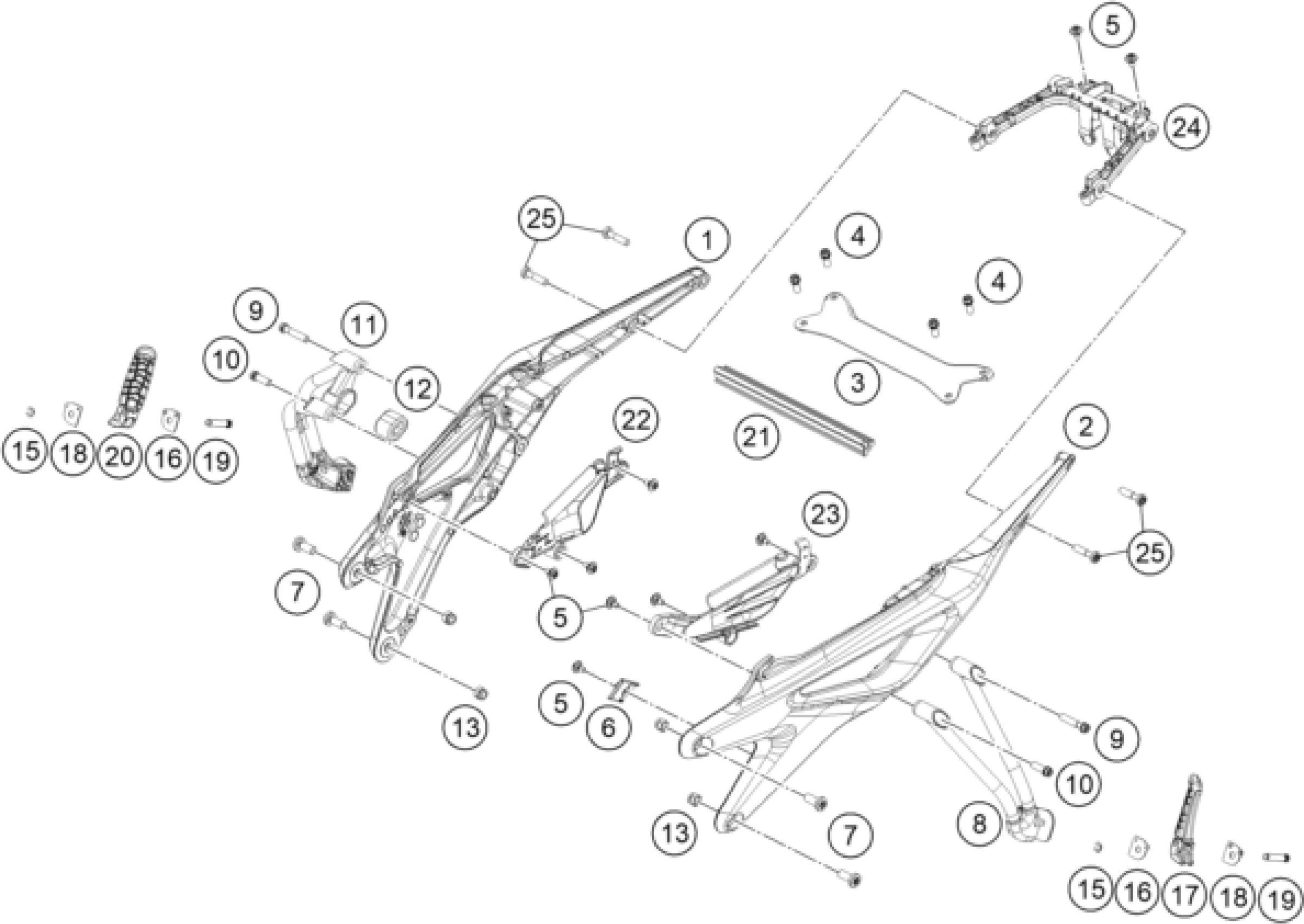

KTM 790 Duke black 2018 SUBFRAME Diagram

#

Description

Price

1

Subframe, right silv. met.

64103002006BH

$309.38

2

Subframe, left silv. met.

64103002005BH

$313.31

3

Cross member

6410300200430

$192.60

4

HH collar screw M8x18 ISA40 SS

0025080186S

$1.49

5

special screw M6x12x3

83008000012

$3.08

6

cable holder

64103002010

$5.23

7

AH collar screw M10x24 ISA45

0035100249

$3.08

8

Footrest carrier rear/left

6410304800033

$188.30

9

Collar screw M8x40 ISA40 SS

0025080406S

$5.23

10

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

11

Footrest carrier rear/right

6410304900033

$218.59

12

DAMPING RUBBER

61305068000

$15.51

15

retaining washer DIN 6799 - 6

0799060003

$1.49

16

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

17

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

18

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

19

footrest bolt, rear

60003044100

$8.03

20

Footrest cmpl. r/s rear 03

60003051000

$61.89

21

Strut

64103004000

$27.76

22

Cover inlet port right

64106041050

$20.66

23

Cover inlet port left

64106040050

$20.66

24

rear reinforcement

64108019050

$107.61

25

SCREW M8X35 ISA45 SS

0035080356S

$5.23

13

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05
