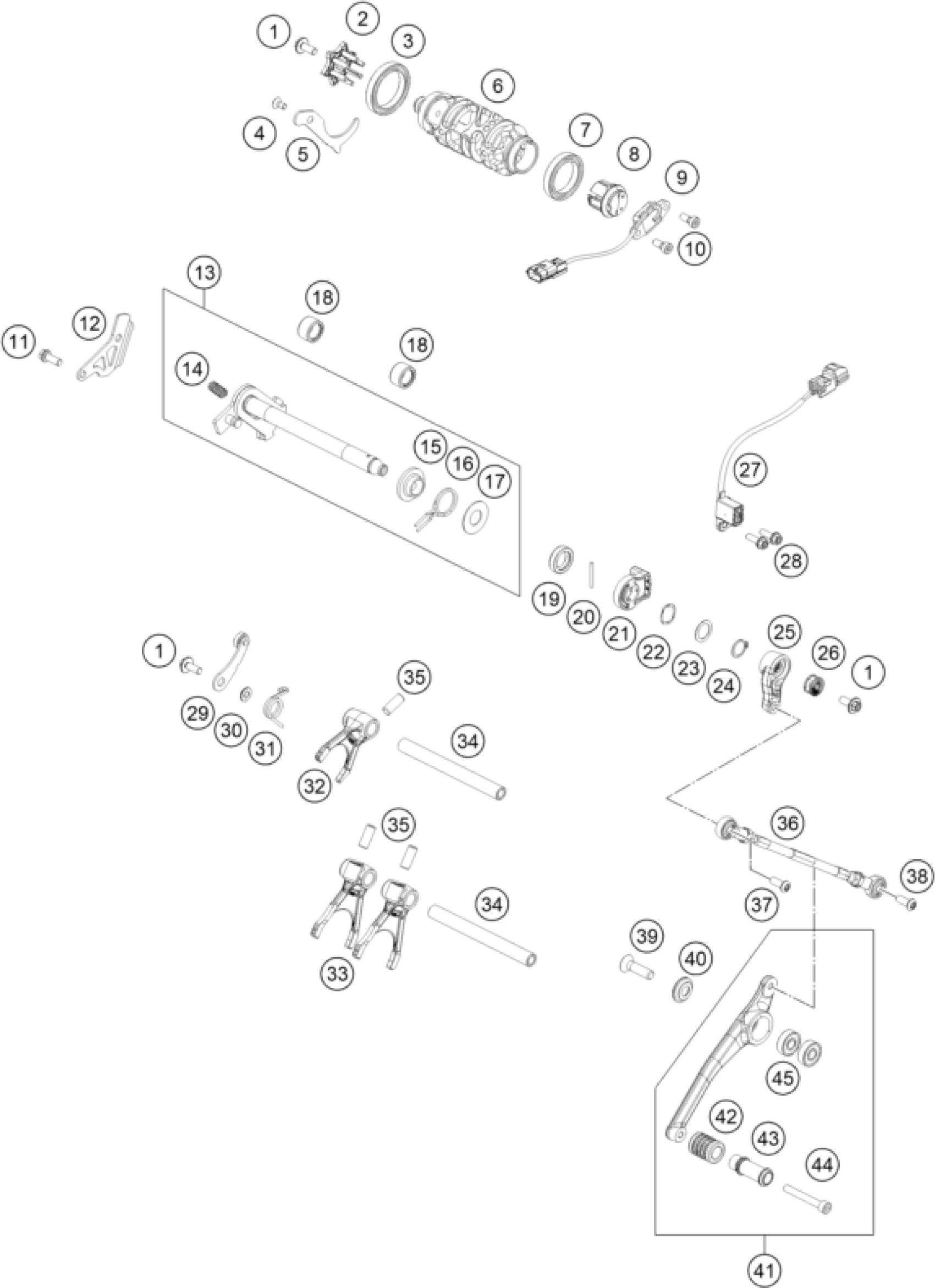

KTM 790 Duke black 2018 SHIFTING MECHANISM Diagram

#

Description

Price

1

HH collar screw M6x15 TX30

0024060156S

$2.05

2

Shift locker cpl.

63534015000

$43.75

3

deep groove ball bearing 6807

0625068070

$26.73

4

hex lobe countersunc screw M5x

0019050106S

$2.05

5

Locking plate

63534011000

$5.79

6

shift drum 6G

63534012001

$95.55

7

deep groove ball bearing 6806

0625068060

$27.11

8

Magnet bracket cmpl.

79234012020

$58.71

9

gear position sensor

79211023000

$121.35

10

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

$2.05

11

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

12

bearing retaining plate

63533022000

$4.11

13

shift shaft cpl.

63534005033

$66.75

14

TENSIONING SPRING 0,8MM

56534013100

$1.49

15

SPRING GUIDE

54634020000

$6.44

16

RETURNSPRING 2MM

61234014000

$6.44

17

STOP DISK 14X30X1

54634050000

$2.05

18

needle sleeve HK 1412 14x20x12

54632095000

$7.00

19

radial shaft seal 14x24x6 B

0760142460

$9.25

20

dowel pin DIN 7 A1 2.5m6x24

0007025241

$1.49

21

magnet holder

63534050000

$49.55

22

wave spring Smalley SSB-0075-S

63534050010

$7.00

23

Thrust washer DIN 988 14x20x0.

0988142005

$1.49

24

retaining ring DIN 471 14x1

0471140100

$1.49

25

Pull Rod

6413403000033

$42.63

26

PAIR NORDLOCK WASHER M6

50233041500

$4.11

27

Shift assistant sensor

63534051000

$155.58

28

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

29

detent arm cpl.

63534024000

$32.53

30

step washer

63534052000

$2.05

31

Detent arm spring

63534023000

$1.49

32

shift fork 5-6 gear

63534002000

$14.67

33

shift fork 1.-4. gear

63534001000

$18.60

34

shift fork shaft

75034019100

$12.99

35

needle roller D8x20

0402080200

$2.05

36

shifter rod cpl.

64134036044

$50.95

37

Oval head screw ISR M6x20-A2-7

0738060205S

$1.49

38

Oval head screw TX M6x16 A2-70

0738060165S

$5.23

39

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

$1.49

40

Fasson Disc D=23x5

64134031020

$5.23

41

Gear lever kpl. black

6413403104433

$109.95

42

RUBBER FOR SHIFT LEVER 05

61034035000

$6.91

43

GEAR LEVER

69034032100

$12.43

44

AH SCREW DIN0912-M 6X45

0912060453

$2.05

45

Grooved ball bearing 608 2RS C

0625006087

$21.40
