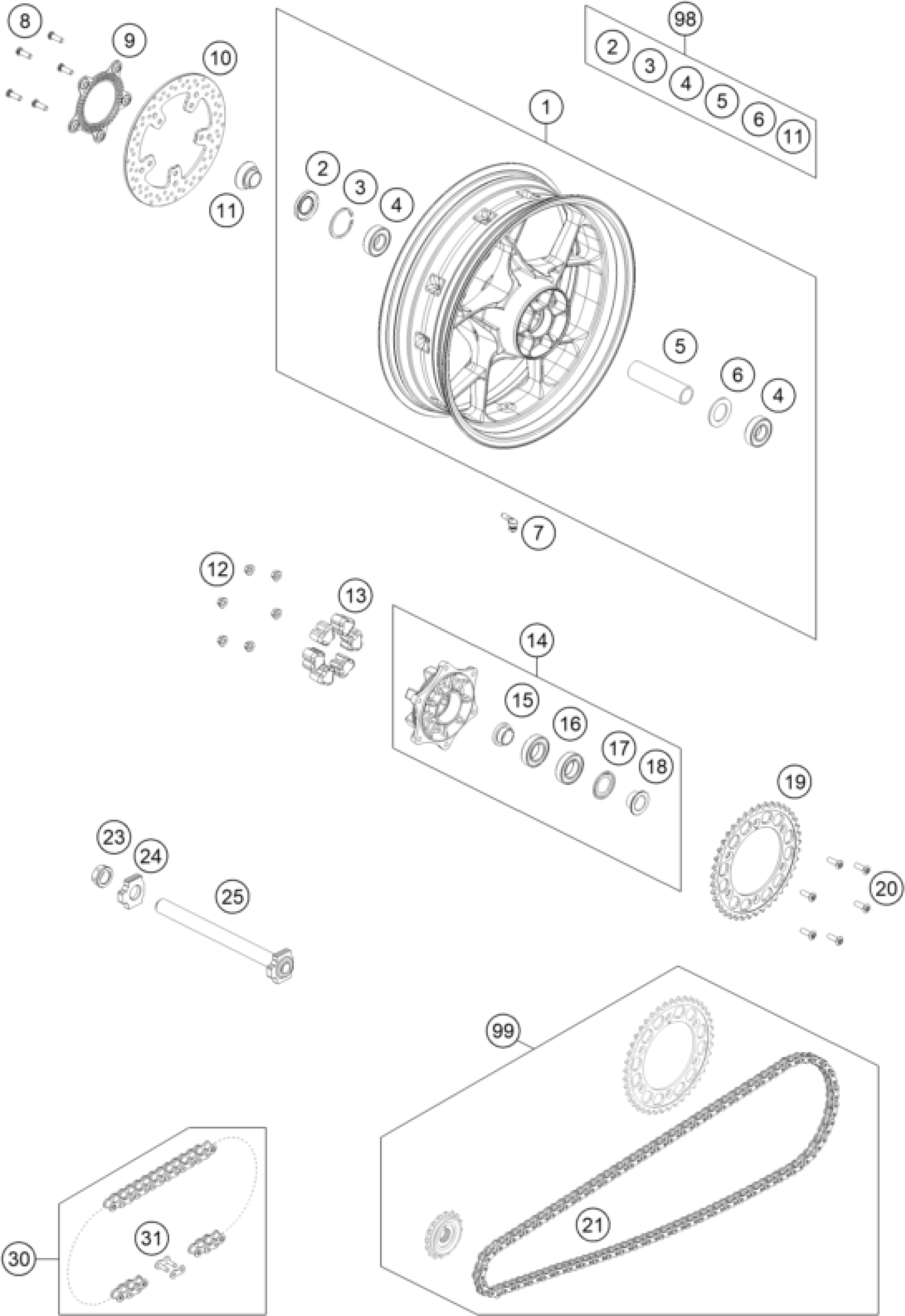

KTM 790 Duke black 2018 REAR WHEEL Diagram

#

Description

Price

1

Rear wheel 5,5x 17 cpl. black

6411000103330

$556.69

2

Radial shaft seal 30X52X7

0760305271

$5.23

3

CIRCLIP DIN0472-52X2

0472052200

$3.08

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

Bearing spacing tube L=124.8mm

60010011000

$20.09

6

Spacer ring 03

60010015000

$10.56

7

VALVE ANGLED

61009076100

$16.35

8

Special screw M8X25 SL TX40

76009062000

$2.05

9

Sensor wheel rear

76042021000

$35.24

10

Rear brake disc 240x5mm

64110060000

$126.22

11

spacer rear wheel right

64110013000

$20.66

12

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

13

Rubber damping block 91

54610459000

$8.03

14

Sprocket wheel carrier cmpl. b

7501005004433

$178.02

19

sprocket 38T

75010051038

Unavailable

19

sprocket 39T

75010051039

Unavailable

19

SPROCKET STEALTH 40T 07

75010051040

Unavailable

19

sprocket

75010051041

$82.46

19

SPROCKET STEALTH 42T 07

75010051042

Unavailable

20

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

21

Chain x-ring 116 rolls endless

64110065116

$127.15

23

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

24

Chain tension adjuster, right,

60010084000

$22.81

25

Rear axel cmpl.

69010181044

$76.10

98

Rear Wheel Repair Kit

64110015000

Unavailable

99

Drive Set 16/41

00050002098

Unavailable

15

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

16

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

17

NILOS RING 6006AV

60110016000

$9.72

18

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

30

chain DID 118 roll

76910065118

Unavailable

31

Rivet link chain DID 520 VP2-T

76910066000

Unavailable
