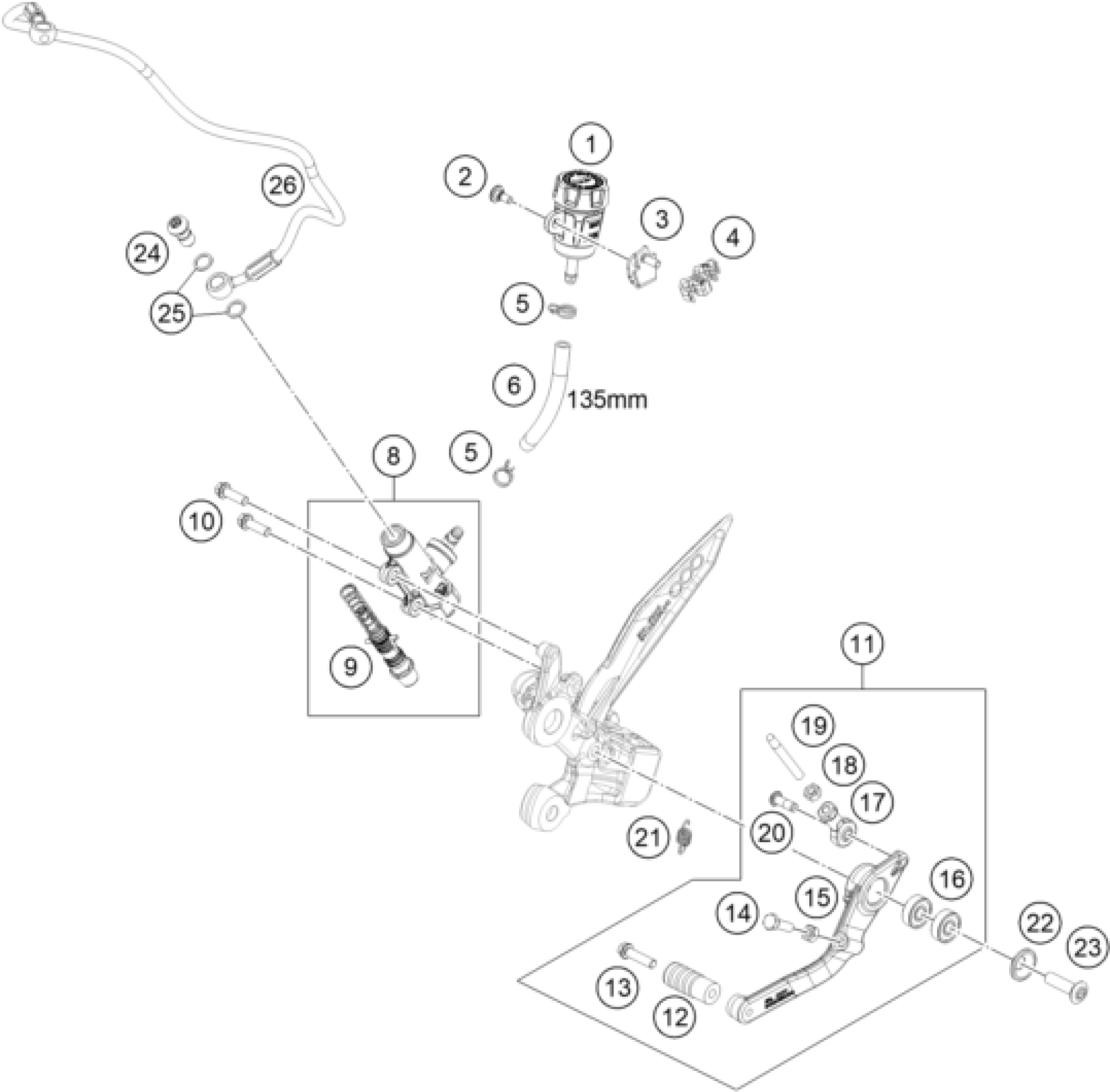

KTM 790 Duke black 2018 REAR BRAKE CONTROL Diagram

#

Description

Price

1

Reservoir assembly

64113069000

Unavailable

2

Screw for expansion tank

69013099050

Unavailable

3

Brake line holder

64113026000

Unavailable

4

Bracket ABS line dia7.5

64142046000

Unavailable

5

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

6

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

8

Foot master cylinder cpl. blac

6411306000030

Unavailable

9

Piston assembly

64113061000

Unavailable

10

HH collar screw M6x20 TX30

0025060206

Unavailable

11

Foot brake lever cpl. black

6411305004433

Unavailable

12

Brake pedal tread Duke

64103060051

Unavailable

13

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

Unavailable

14

Hexagon Screw M6x20-8.8 black

04017060201

Unavailable

15

hexagon nut DIN 934 M6 black

0934060001

Unavailable

16

Grooved ball bearing 608 2RS C

0625006087

Unavailable

17

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

18

Hex. nut DIN 934 M6

0934060003

Unavailable

19

PRESSURE ROD ALU 250 '90

54603068000

Unavailable

20

oval head screw M6x18 A2-70 S

0738060185S

Unavailable

21

SPRING FOOT BRAKE LEVER 05

61013052000

Unavailable

22

Fasson Disc D=23x5

64134031020

Unavailable

23

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

Unavailable

24

banjo bolt M10x1x19.5

62113020100

Unavailable

25

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

26

Hydraulic rear Brake Master Cy

64142002000

Unavailable
