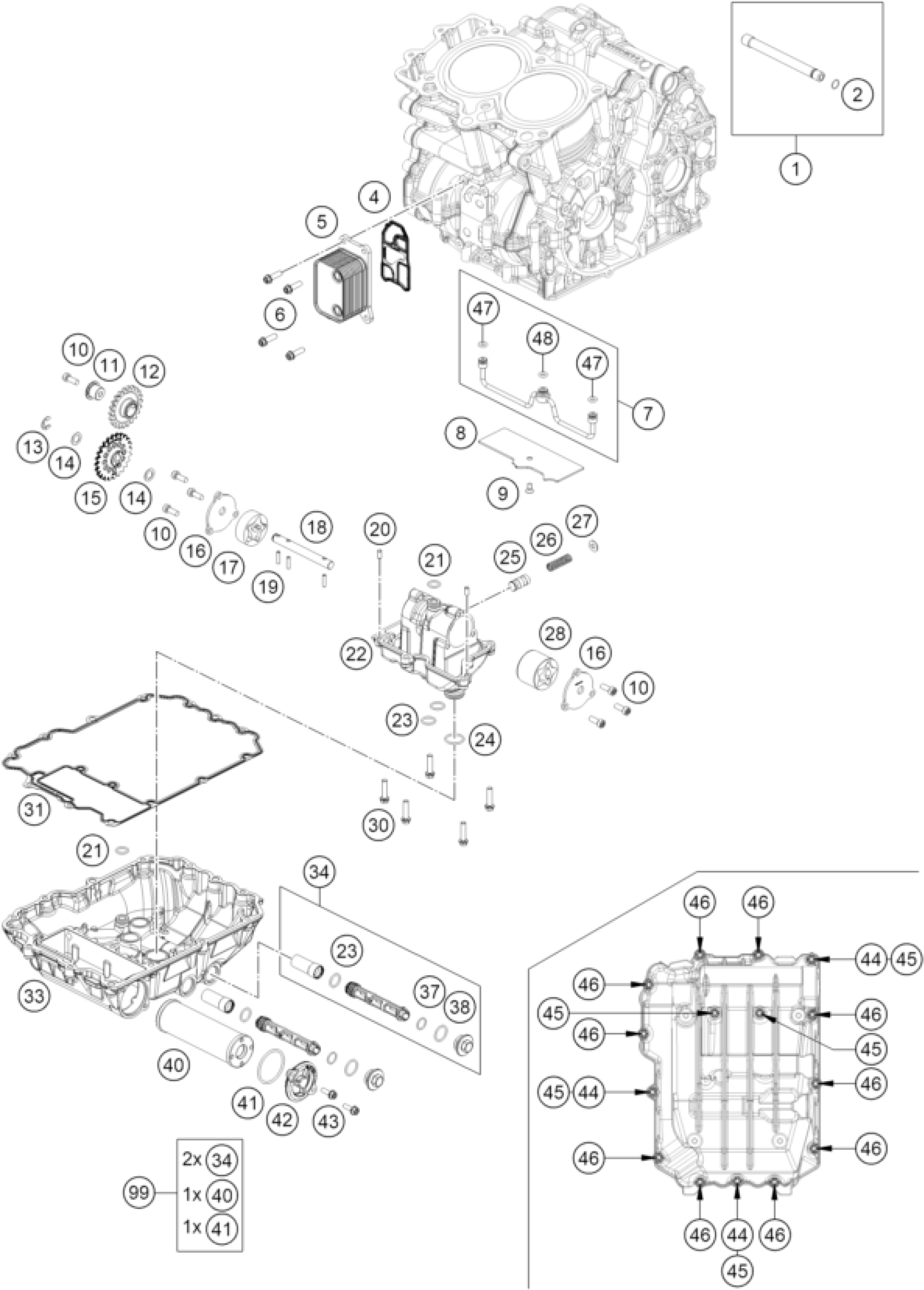

KTM 790 Duke black 2018 LUBRICATING SYSTEM Diagram

#

Description

Price

1

Gearbox lubrication pipe cmpl.

63530065000

Unavailable

2

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

4

gasket with support sheet

63538051000

Unavailable

5

oil-water-heater exchanger

63538050000

Unavailable

6

HH collar screw M6x20 TX30

0025060206

Unavailable

7

oil line

63538035000

Unavailable

8

pressure plate

63530086010

Unavailable

9

hex lobe countersunc screw M5x

0019050106S

Unavailable

10

SHCS ISO 14580 M6x16 SL

014580060166S

Unavailable

11

pivot pin

63538003000

Unavailable

12

oil pump idler wheel 22 teeth

63538001022

Unavailable

13

retaining washer DIN 6799 - 8

0799080000

Unavailable

14

washer 10x16x0.5

60038007010

Unavailable

15

oil pump gear 24 teeth

60038001224

Unavailable

16

oil pump cover plate

63538008050

Unavailable

17

eaton pump set 14mm

60038011100

Unavailable

18

oil pump shaft

63538002000

Unavailable

19

needle roller NRB 4x15.8 G2

0402041580

Unavailable

20

needle roller DIN 5402 5x9.8

0402050980

Unavailable

21

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

22

Oil Pumphousing

63538012000

Unavailable

23

O-RING 14,00X2,00

0770140200

Unavailable

24

O-RING 20X2 VITON

0770020020

Unavailable

25

control piston

60038128000

Unavailable

26

oil pressure spring

63538026000

Unavailable

27

shim

50337073000

Unavailable

28

eaton pump set 30mm

61238010100

Unavailable

30

HH collar screw M6x25 TX30

0025060256

Unavailable

31

oil sump gasket

63530086000

Unavailable

33

oil pan

6353008500024

Unavailable

34

oil screen cpl.

61238021100

Unavailable

37

O-RING 12,5X1,5 NBR

0770125015

Unavailable

38

O-RING 17,00X2,00

0770170200

Unavailable

40

OIL FILTER

61338015200

Unavailable

41

O-RING 39,34X2,62

07700390261

Unavailable

42

oil filter cover

75038041200

Unavailable

43

HH collar screw M5x16 TX30

0025050166

Unavailable

44

dowel sleeve 6x8x11.5

59030023000

Unavailable

45

HH collar screw M6x35 TX30

0025060356

Unavailable

46

HH collar screw M6x30 TX30

0025060306

Unavailable

47

O-RING 6X2.5

0770060025

Unavailable

99

OILFILTER SERVICE KIT

00050000068

Unavailable

48

O-Ring 7x2,50 HNBR

0770070025

Unavailable
