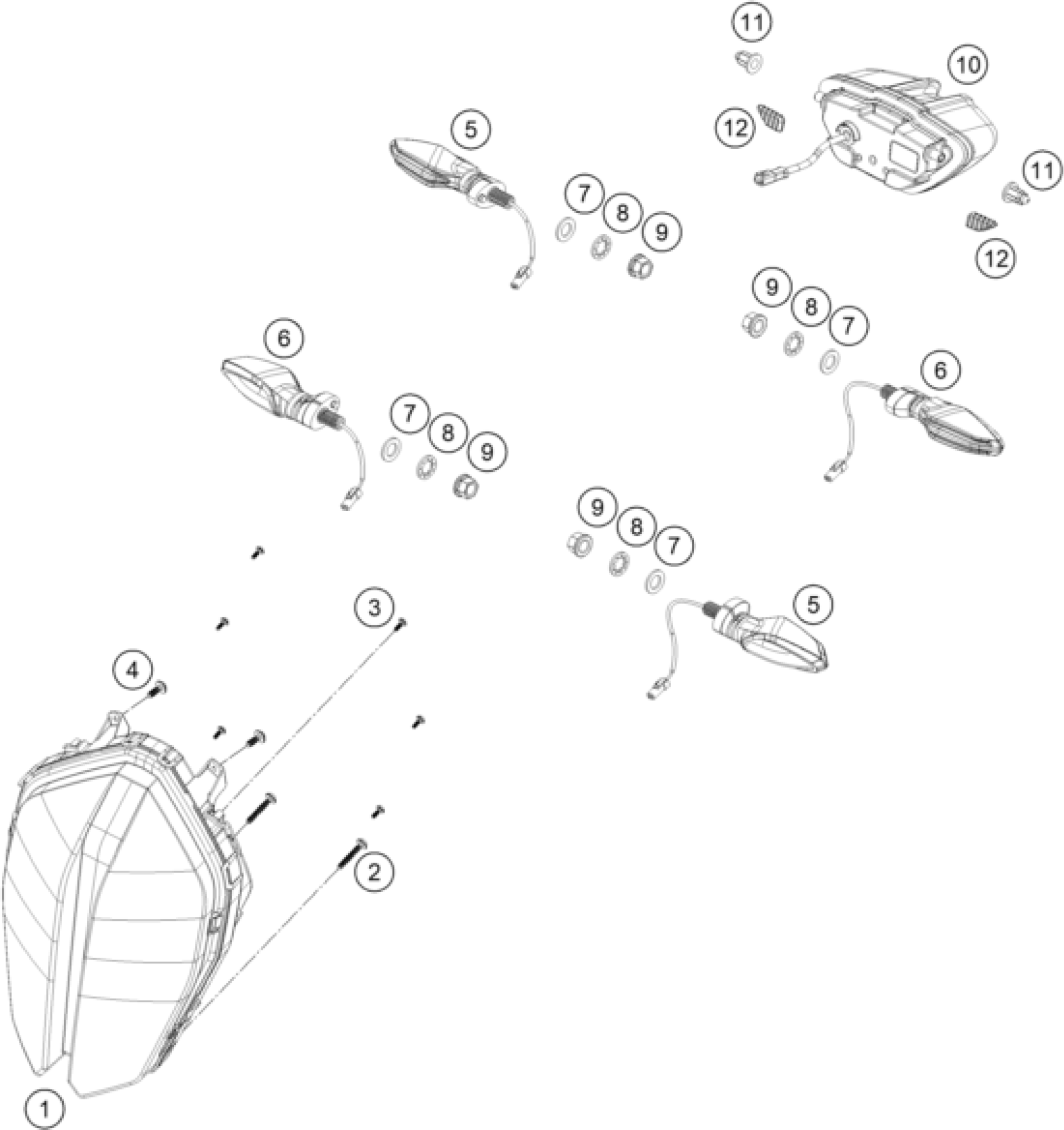

KTM 790 Duke black 2018 LIGHTING SYSTEM Diagram

#

Description

Price

1

headlight

64114001000

$988.19

2

Ejot PT screw 4x25 WN 5451

0081040253

$1.49

3

Ejot PT screw 3x8 WN 5451 blac

0081030081

$1.49

4

SCREW FOR PLASTIC K45X12 T20

0081045121

$1.49

5

turn signal front left/rear ri

60314025000

$42.61

6

turn signal front right/rear l

60314026000

$42.61

7

Washer DIN0433-M10

0433100003

$1.49

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

9

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

10

Tail light

64114040000

$164.18

11

Rubber damper top

64108015060

$2.05

12

Rubber damper bottom

64108015070

$2.05
