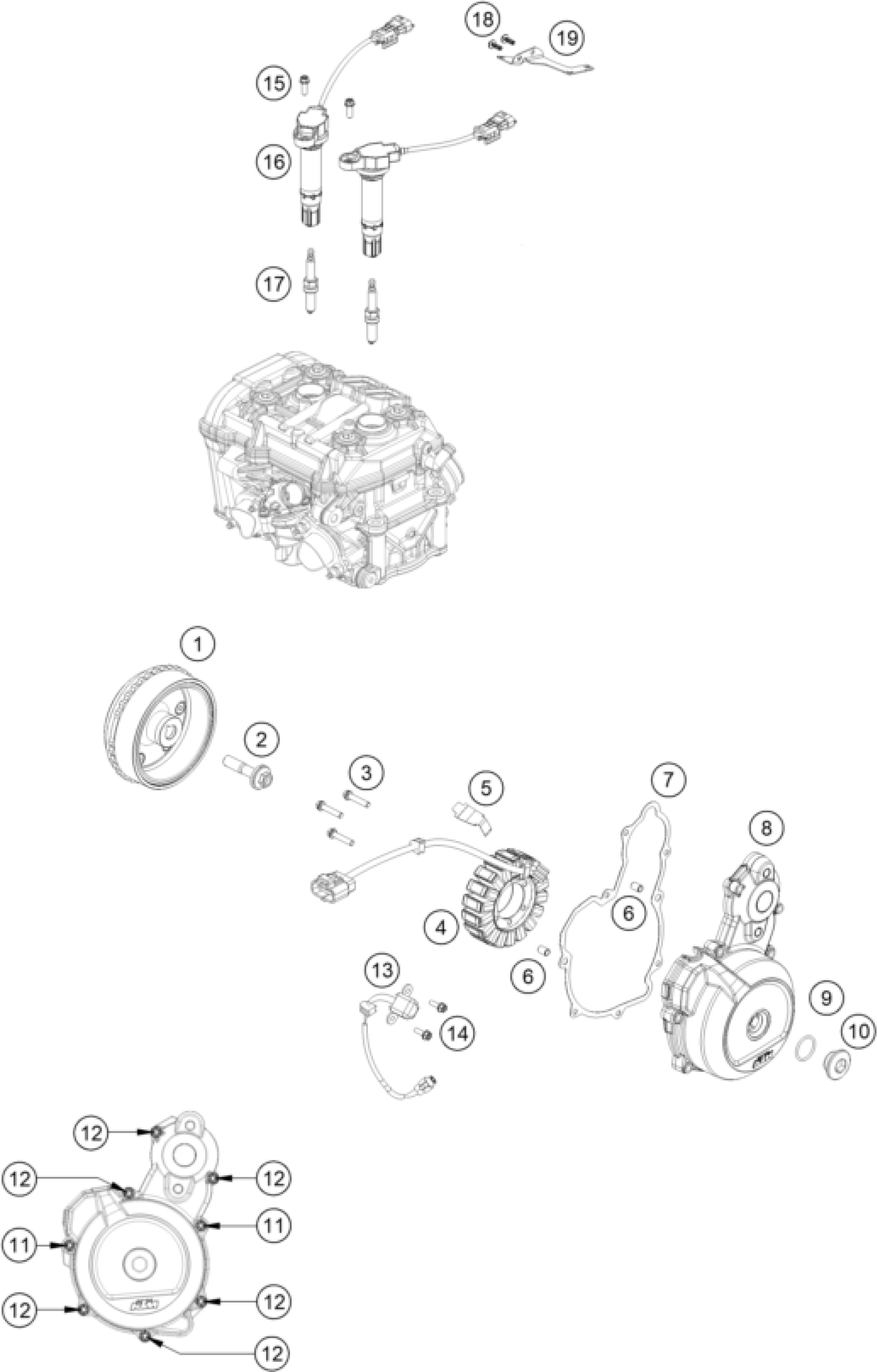

KTM 790 Duke black 2018 IGNITION SYSTEM Diagram

#

Description

Price

1

rotor cpl.

63539005000

Unavailable

2

special screw M12x1.5 WS15

60339003000

Unavailable

3

HH collar screw M6x30 TX30

0025060306S

Unavailable

4

stator

63539004000

Unavailable

5

generator line bracket

60039040020

Unavailable

6

Dowel, 6x8x11.5

59030023100

Unavailable

7

ignition cover gasket

63530040000

Unavailable

8

Generator Cover

6353000200041

Unavailable

9

o-ring 24.00x2.50 Viton

07700240251

Unavailable

10

threaded plug M24x1.5 PA 6.6

6003009400030

Unavailable

11

HH collar screw M6x35 TX30

0025060356

Unavailable

12

HH collar screw M6x30 TX30

0025060306

Unavailable

13

pulse generator KOKUSAN 4K3-A/

59039034000

Unavailable

14

HH Collar Screw M5x16 ISA30 SS

0025050166S

Unavailable

15

HH collar screw M6x16 TX30

0025060166

Unavailable

16

stick coil

63539006000

Unavailable

17

spark plug

77839093000

Unavailable

18

EJOT PT screw K50x14

0081050141

Unavailable

19

Retaining bracket stick coil c

64111038000

Unavailable
