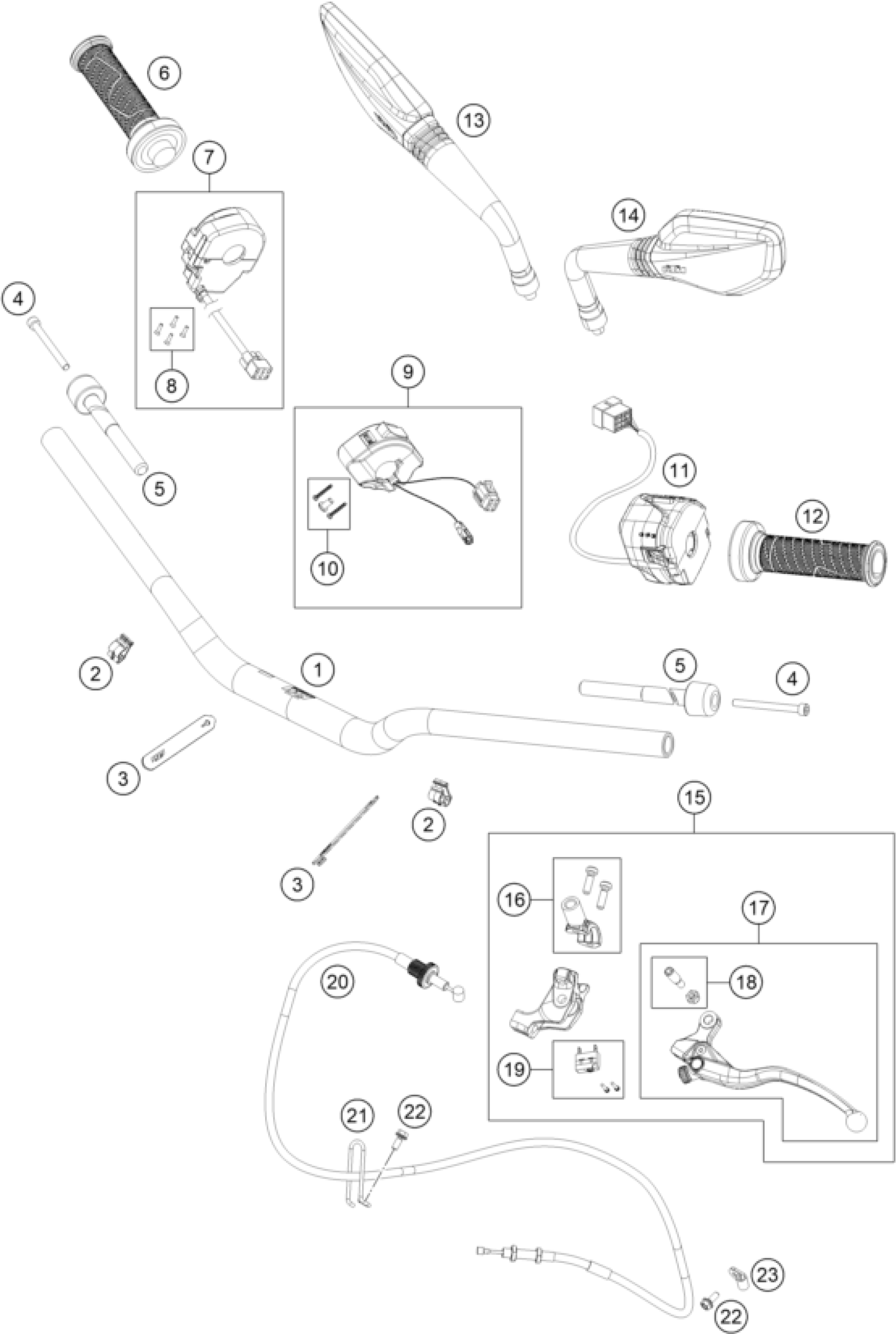

KTM 790 Duke black 2018 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

Handlebar L=743 mm, Dia.=28.5

6410200100030

$152.86

2

Line guide

83013026000

$3.08

3

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

4

SHCS DIN 912 M6x65

0912060653

$2.05

5

handlebar weight

61002004000

$35.52

6

Grip tube (no heating)

60702012000

$74.51

7

Ride-by-wire without throttle

60711012000

$100.88

8

SCREW SET START-STOP SWITCH

76011073110

$6.72

9

emergency OFF switch

76011074000

$60.30

10

Screw set start-stop switch

61411174010

$5.23

11

Handlebar switch left

76011170100

$129.12

12

Grip LHS w/o heater

60702039100

$86.29

13

MIRROR R/S

90112041000

$28.42

14

MIRROR L/S

90112040000

$28.42

15

Clutch lever cmpl. blk.

6410203100030

$208.87

16

Clamp cpl.

6410204400030

$29.54

17

Clutch lever cpl.

6410204000030

$73.58

18

Kit lever pin

64102038000

$14.39

19

Lever switch

64111049000

$46.93

20

Clutch cable

64102090000

$70.40

21

Clutch cable wire guide

64102097000

$3.08

22

HH collar screw M5x12 TX30

0025050126

$3.08

23

PVC clamp 6.4 MM Heyman

64132070000

$1.49
