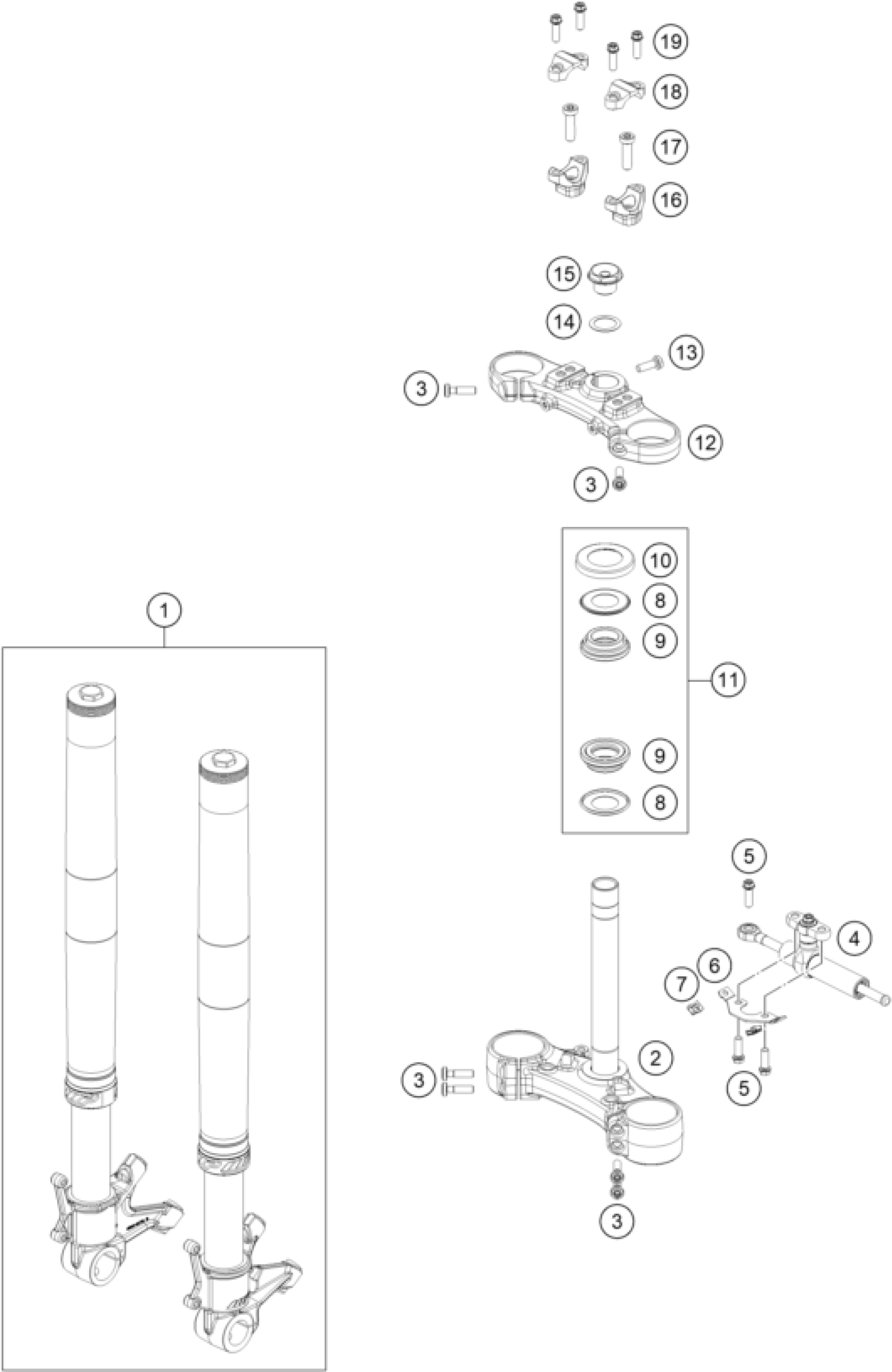

KTM 790 Duke black 2018 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Fork Duke 790

05586R2601

$1,470.56

2

lower triple clamp cpl x=32 mm

6410103203230S

$355.01

3

AH collar screw M8x30 ISA45

0035080306

$3.08

4

Steering damper cpl.

16181R54E

$353.61

5

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

6

Retaining bracket brake line g

6410104400033

$25.14

7

clip nut M5

69008021080

$3.08

8

Stearing head gasket

69001084100

$5.23

9

STEERINGHEAD KPL.17

69001181000

$37.77

10

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

11

Stearing head rep. Kit

69001181010

$91.81

12

Upper Triple Clamp

6410103403230S

$211.58

13

ISA collar screw M8x25 ISA45

0035080256S

$2.05

14

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

15

Steering head screw

6900103600033

$25.80

16

HANDLEBAR SUPPORT D=28 H=32 BL

5940103903230

$34.87

17

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

18

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

19

HH collar screw M8x25

0025080256

$2.05
