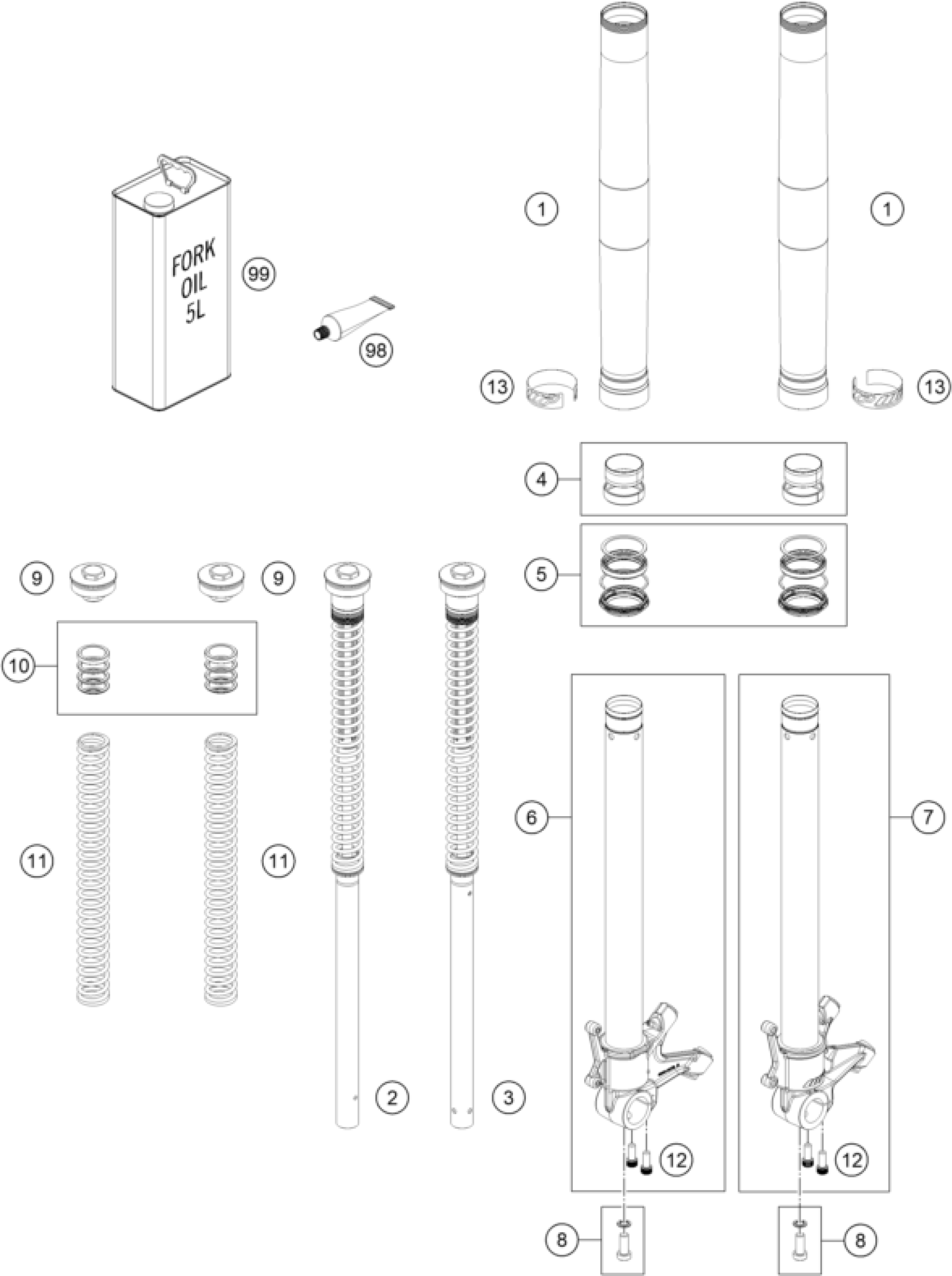

KTM 790 Duke black 2018 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

Fork outer tube 44.13x515 dt54

43578098

Unavailable

2

Cartridge right cmpl.. 790 Duk

43578176S2

Unavailable

3

Cartridge left cmpl.. 790 Duke

43578195S1

Unavailable

4

GUIDE BUSHING SET

R14042

Unavailable

5

Fork sealing kit 43mm red

R516

Unavailable

6

Fork shoe right d43mm cmpl.

43578097S1

Unavailable

7

Fork shoe left d43mm cmpl.

43578096S1

Unavailable

8

HS cylinder-head screw M10x25

43578177S1

Unavailable

9

Screw cover M51x1.5 cmpl.

43578140S1

Unavailable

10

Shim Kit Fork

RP80002

Unavailable

11

mainspring (37) 6-9 345 fork

43578135

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

12

HH collar screw M8x20

0025080206

Unavailable

13

Sticker WP India 160x19

52000148

Unavailable

11

main spring (38,2) 5-7.8-345 s

95020004S

Unavailable

11

Main Spring (38.2) 7-10-345 se

95020005S

Unavailable
