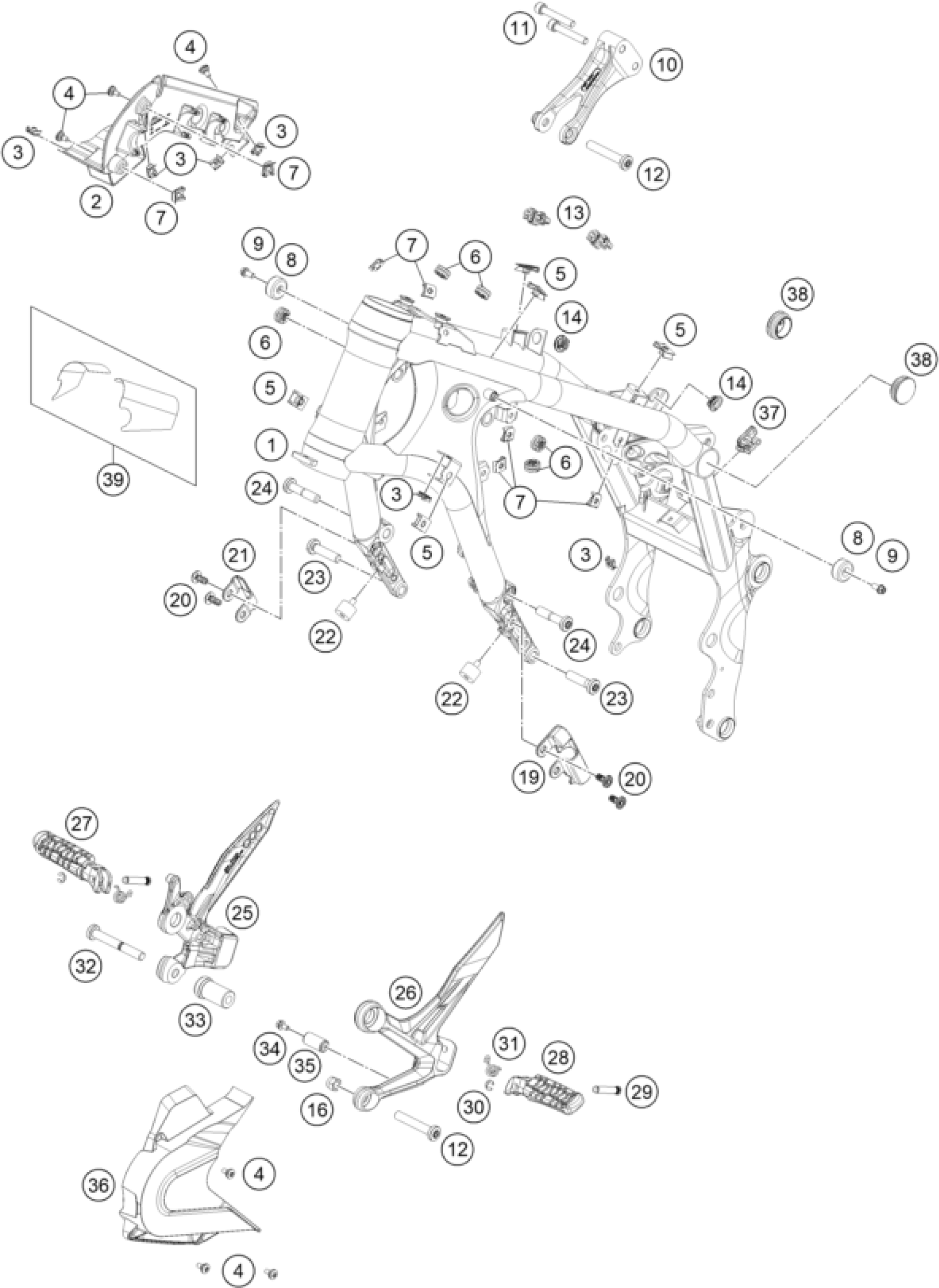

KTM 790 Duke black 2018 FRAME Diagram

#

Description

Price

1

Frame ''641 RA'' black

6410300100030

$866.55

2

cover right

64103082000

$23.55

3

clip nut M5

69008021080

$3.08

4

special screw M5x12

69008021160

$4.11

5

clip nut M6

54603048100

$4.11

6

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

7

RANGE CHANGE METAL NUT M5

54603048200

$5.23

8

TANK ROLLER 12X26X12 '98

50307014000

$11.02

9

Hex collar screw M6x12 ISA30 s

0025060126S

$1.49

10

Engine strut black

6410301300033

$94.80

11

Cap head bold M8x50 ISR 45

014579080506S

$5.23

12

AH-COLLAR SCREW M10X60 ISA45

0035100609S

$9.34

13

Bracket ABS line dia7.5

64142046000

$2.05

14

quick release rubber grommet

47106003160

$4.11

19

Cable Guidance left

64103034000

$5.23

20

Fastening plugs M8

64103034020

$10.00

21

Cable Guidance right

64103035000

$4.11

22

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

23

ISA collar screw M10x40 ISA45

0035100409S

$6.35

24

ISA screw M10x45 ISA45

0035100456S

$5.70

25

Front footpeg bracket, right

6410303901033

$160.72

26

Front footpeg bracket, left

6410303800033

$157.73

27

FOOTREST FRONT R/S CPL. 05

61003051000

$49.27

28

FOOTREST FRONT L/S CPL. 05

61003050000

$50.20

29

footrest bolt, rear

60003044100

$8.03

30

retaining washer DIN 6799 - 6

0799060003

$1.49

31

RETURN SPRING FOOTREST

76003042000

$3.08

32

ISA collar screw M10x80 ISA45

0035100809S

$3.08

33

Distance piece

6410303900133

$12.71

34

HH collar screw M5x10 TX30

0025050106

$1.49

35

Roller

6410303800133

$6.72

36

Sprocket Cover

64103096000

$24.58

37

Cable holder, attachable

64111059020

$3.08

38

Frame locking cap

64103088000

$2.05

39

Set protection sticker frame

64103092044

$13.36

16

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05
