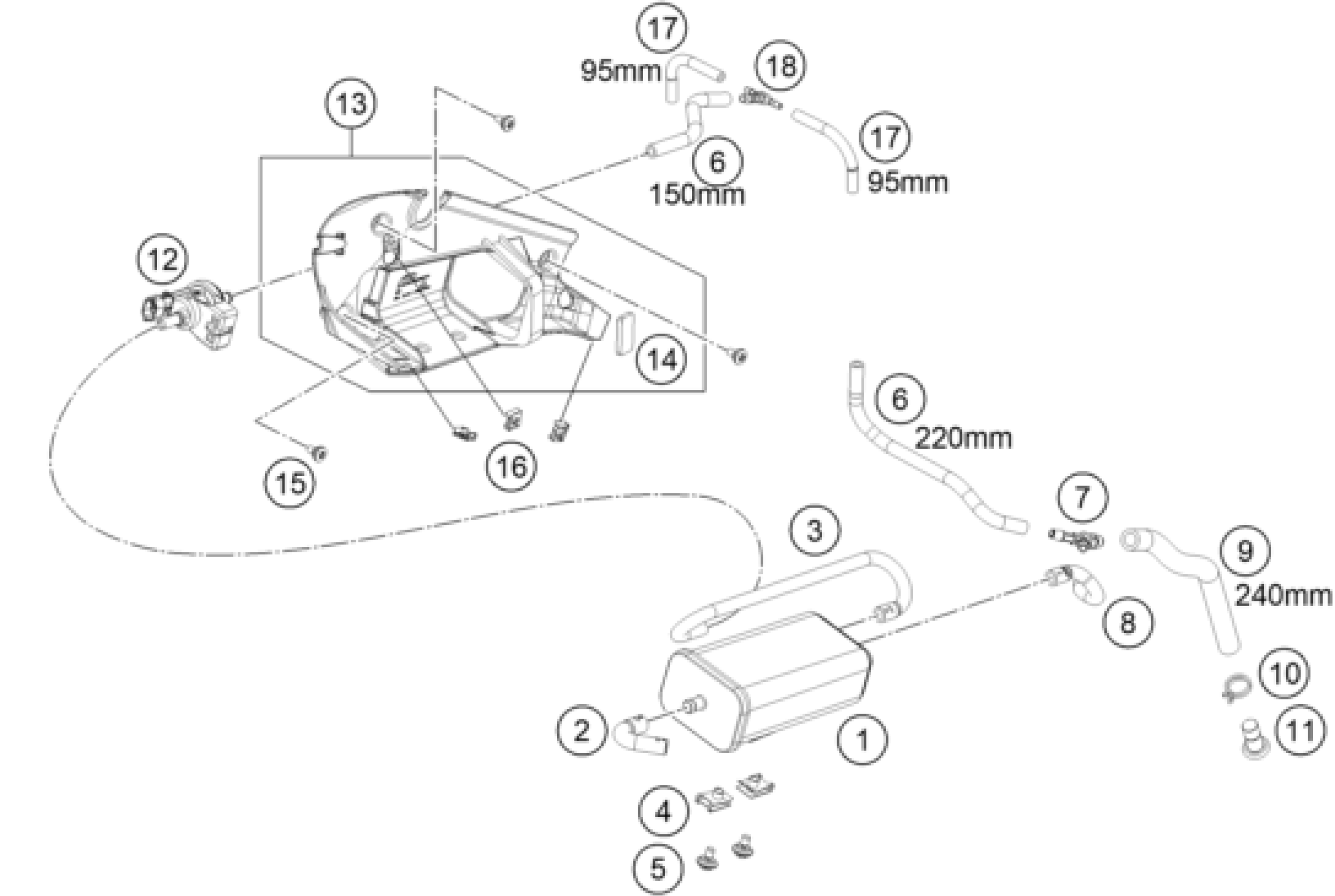

KTM 790 Duke black 2018 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

CARBON CANISTER

75015001200

$66.66

2

ventilation hose evap. can.

64115021000

$11.59

3

hose evap. ca. - purgevalve

64115022000

$20.47

4

RANGE CHANGE METAL NUT M6 INOX

54603048300

$5.23

5

special screw M6x12x3

83008000012

$3.08

6

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

7

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

8

Molded hose ACF

64115023000

$11.40

9

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

10

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

11

PLUG D=10

61315026000

$21.87

12

EVAP valve

76015015000

$254.78

13

Cover left cpl.

64103081044

$22.69

14

Metamoll f. frame cover

64108070040

$2.80

15

special screw M5x12

69008021160

$4.11

16

clip nut M5

69008021080

$3.08

17

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

18

Hose connection nozzles

64115026000

$4.11
