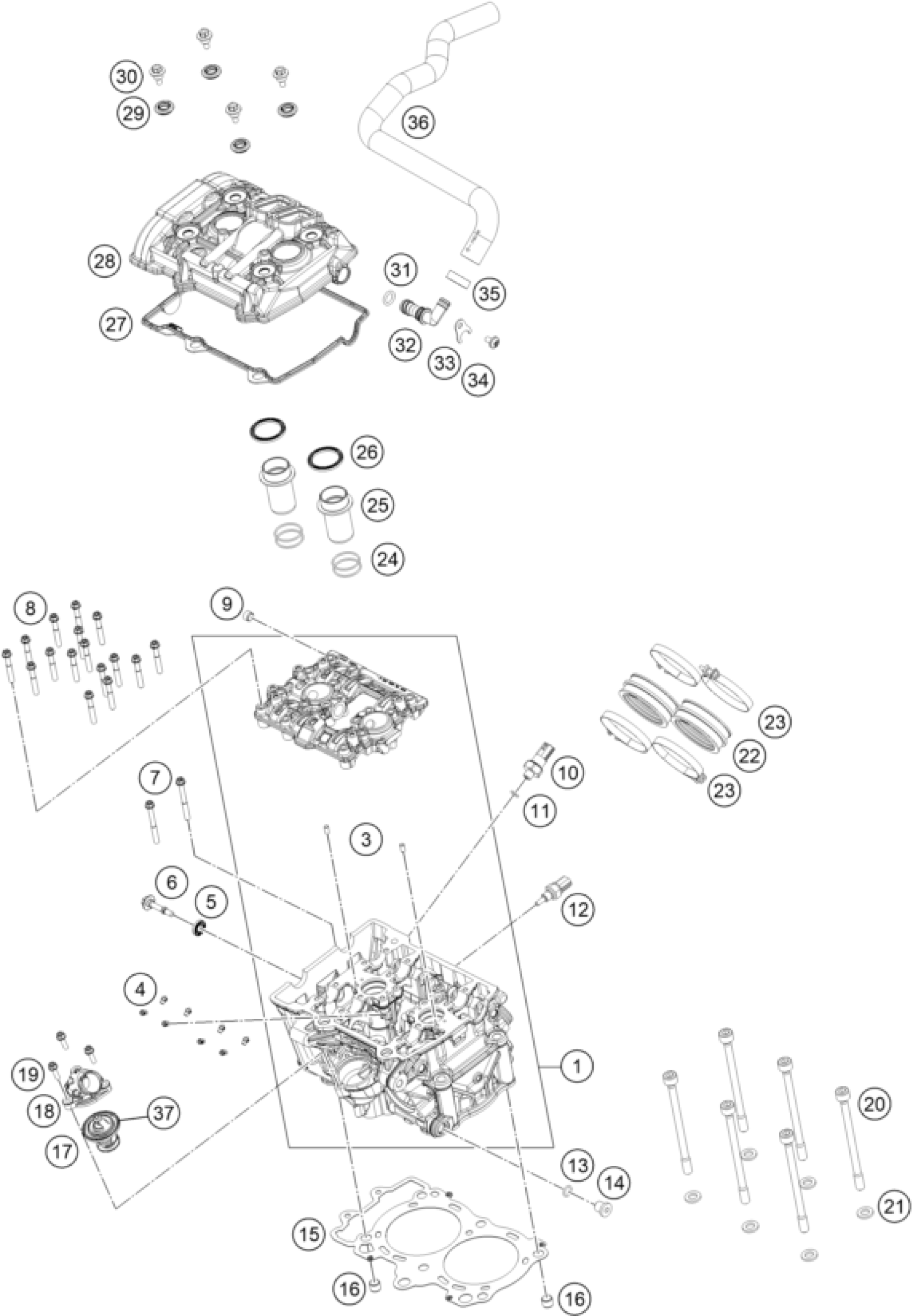

KTM 790 Duke black 2018 CYLINDER HEAD Diagram

#

Description

Price

1

cylinder head cpl.

6353602000024

Unavailable

3

needle roller DIN 5402 5x9.8

0402050980

Unavailable

4

oil jet 50 M5

60030063050

Unavailable

5

decoupling element

75036052010

Unavailable

6

valve mechanism cover screw

75036055000

Unavailable

7

HH collar screw M6x55 TX30

0025060556

Unavailable

8

HH collar screw M6x40 TX30

0025060406

Unavailable

9

pipe plug DIN 906 M10x1

0906100100

Unavailable

10

oil pressure switch ''BITRON''

61238091000

Unavailable

11

O-RING 8,00X1,5 NBR 70

0770080015

Unavailable

12

water temperature sensor

79435047000

Unavailable

13

o-ring 10.00x2.00 silicone

0770100020

Unavailable

14

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

15

Cylinder head gasket

63530036200

Unavailable

16

dowl sleeve 10.2x12.5x10

58530014100

Unavailable

17

Thermostat 75°

63535017000

Unavailable

18

water connection

63535019000

Unavailable

19

HH collar screw M5x20 TX30

0025050206

Unavailable

20

cylinder head bolt M10x1.25 L=

78630044000

Unavailable

21

washer 19x10.5x2.5

77336089010

Unavailable

22

Intake Sleeve

63536044000

Unavailable

23

hose clamp Gemi 66

61236048000

Unavailable

24

O-RING 29,87X1,78 VITON

0770298178

Unavailable

25

spark plug shaft insert

63536075000

Unavailable

26

spark plug shaft gasket

61136075050

Unavailable

27

Valve Cover Gasket

63536053000

Unavailable

28

valve cover

6353605200033

Unavailable

29

RUBBER GASKET FOR SCREW

77036054150

Unavailable

30

VALVE COVER SCREW

77336054150

Unavailable

31

O-RING 12,00X3,0 VITON 75

0770012030

Unavailable

32

bleeder connector

63536081000

Unavailable

33

connecting angle retaining pla

61236082150

Unavailable

34

EJOT ALtracs 60x12 TX30

0080060123

Unavailable

35

VARIABLE ONE-EAR CLAMP 19,8MM

00050198706

Unavailable

36

Oil seperator foam hose

64130087000

Unavailable

37

Thermostat seal

63635018000

Unavailable
