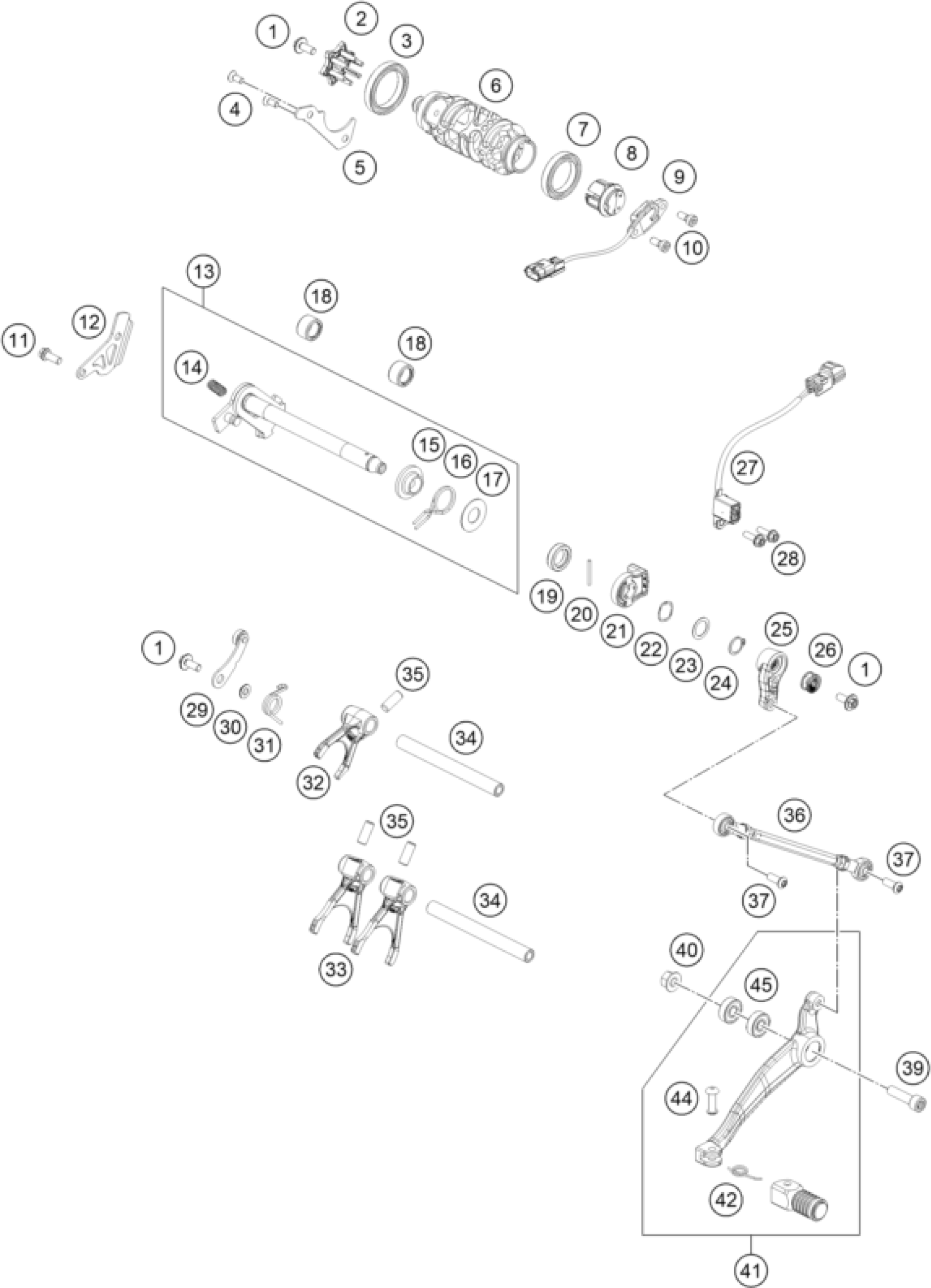

KTM 790 ADVENTURE, white-CKD w/o engine 2021 SHIFTING MECHANISM Diagram

#

Description
Price

1

Screw M6x15

C0024060156S

Unavailable

2

Shift star

C90034015000

Unavailable

3

deep groove ball bearing 6807

C0625068070

Unavailable

4

Screw M5x12

C0019050121S

Unavailable

5

Bearing retaining bracket

C90034011200

Unavailable

6

Shift drum 6g

C90034012001

Unavailable

7

deep groove ball bearing 6806

C0625068060

Unavailable

8

magnet holder cpl.

C90034012020

Unavailable

9

Gear position sensor

C90011023000

Unavailable

10

Cap head bolt DIN 6912 M5x12 8

C0984050123S

Unavailable

11

Screw M6x16

C0025060166S

Unavailable

12

bearing retaining plate

C90033022000

Unavailable

13

Shift shaft cpl.

C90034005033

Unavailable

14

Tensioning spring 0.8 mm

C90034013100

Unavailable

15

Spring guide

C90034020000

Unavailable

16

Return spring 2 mm

C90034014000

Unavailable

17

Stop disk 14x30x1

C90034050001

Unavailable

18

needle sleeve HK 1412 14x20x12

C90032095000

Unavailable

19

radial shaft seal 14x24x6 B

C0760142460

Unavailable

20

dowel pin DIN 7 A1 2.5m6x24

C0007025241

Unavailable

21

magnet holder

C90034050000

Unavailable

22

wave spring Smalley SSB-0075-S

C90034050010

Unavailable

23

Thrust washer DIN 988 14x20x0.

C0988142005

Unavailable

24

retaining ring DIN 471 14x1

C0471140100

Unavailable

25

Pull rod

C9003403000033

Unavailable

26

Wedge lock washer M6

C90033041000

Unavailable

27

Shift shaft sensor

C90034051000

Unavailable

28

Screw M6x16

C0025060166S

Unavailable

29

detent arm cpl.

C90034024000

Unavailable

30

Step washer

C90034052000

Unavailable

31

Detent arm spring

C90034023000

Unavailable

32

Shift fork

C90034002000

Unavailable

33

Shift fork

C90034001000

Unavailable

34

Shift fork shaft

C90034019100

Unavailable

35

needle roller D8x20

C0402080200

Unavailable

36

Shift rod cmpl.

63534036044

Unavailable

37

Oval head screw ISR M6x20-A2-7

0738060205S

Unavailable

39

screw ISO 14579-M8x30-10.9-MK

014579080301S

Unavailable

40

Self locking nut M8 10.9

54310086200

Unavailable

41

Gear shift lever preassembled

6353403104433

Unavailable

42

SHIFTING LEVER SPRING 250

54634032100

Unavailable

44

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

45

Grooved ball bearing 608 2RS C

0625006087

Unavailable
