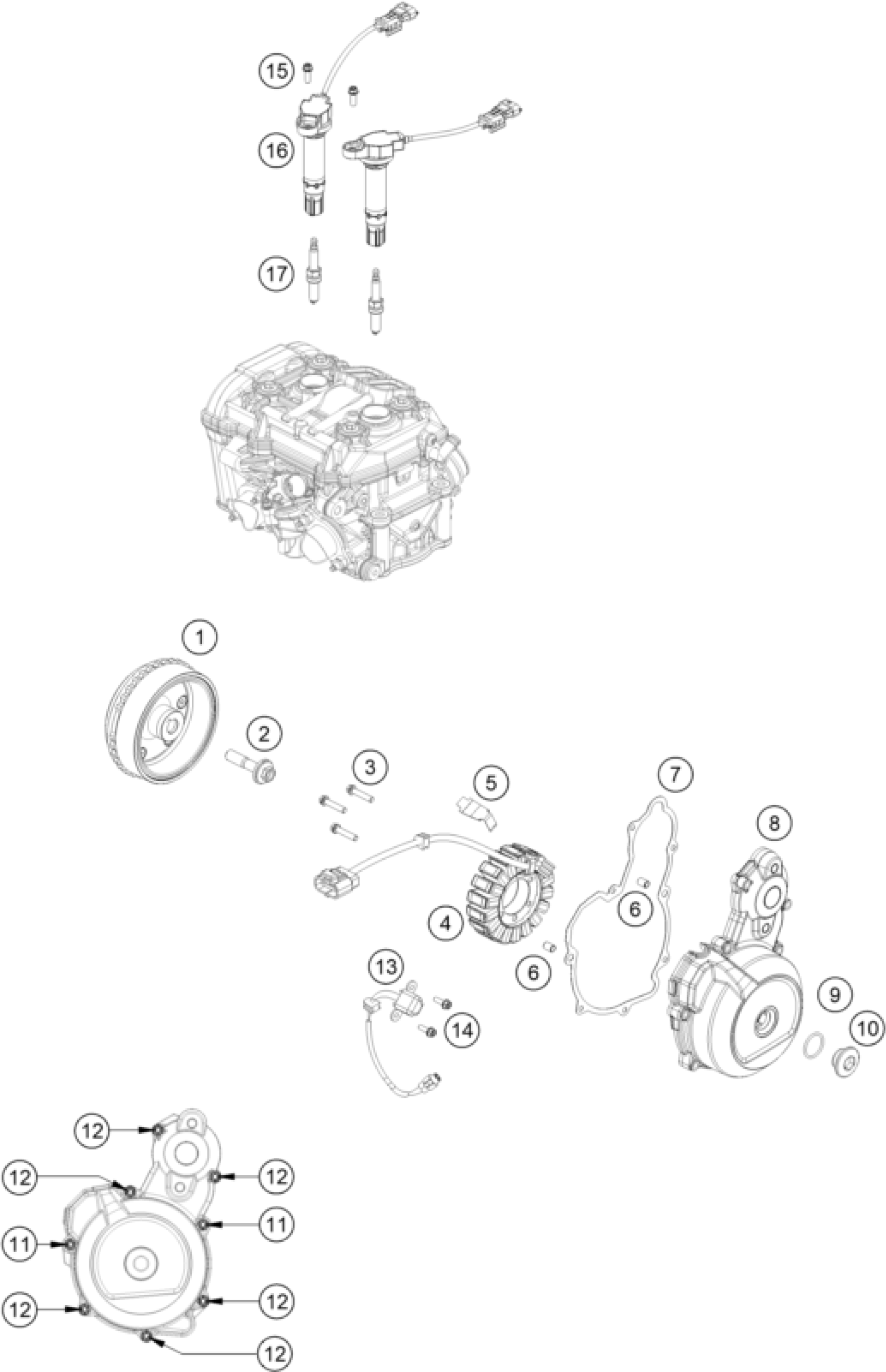

KTM 790 ADVENTURE, white-CKD w/o engine 2021 IGNITION SYSTEM Diagram

#

Description

Price

1

rotor cpl.

C90039105000

Unavailable

2

special screw M12x1.5 WS15

60339003000

Unavailable

3

Screw M6x30

C0025060306S

Unavailable

4

Stator

C90039004000

Unavailable

5

generator line bracket

C90039040020

Unavailable

6

Dowel

C90030024000

Unavailable

7

ignition cover gasket

C90030040000

Unavailable

8

Generator Cover KTMR2R

C9003010200041

Unavailable

9

o-ring 24.00x2.50 Viton

C07700240251

Unavailable

10

threaded plug M24x1.5 PA 6.6

C90030094000

Unavailable

11

Screw M6x35

C0025060356

Unavailable

12

Screw M6x30

C0025060306

Unavailable

13

pulse generator KOKUSAN 4K3-A/

C90039034000

Unavailable

14

Screw M5x16

C0025050166S

Unavailable

15

Screw M6x16

C0025060166

Unavailable

16

Stick coil

C90039006100

Unavailable

17

spark plug

77839093000

Unavailable

8

Generator Cover

C9003020200041

Unavailable
