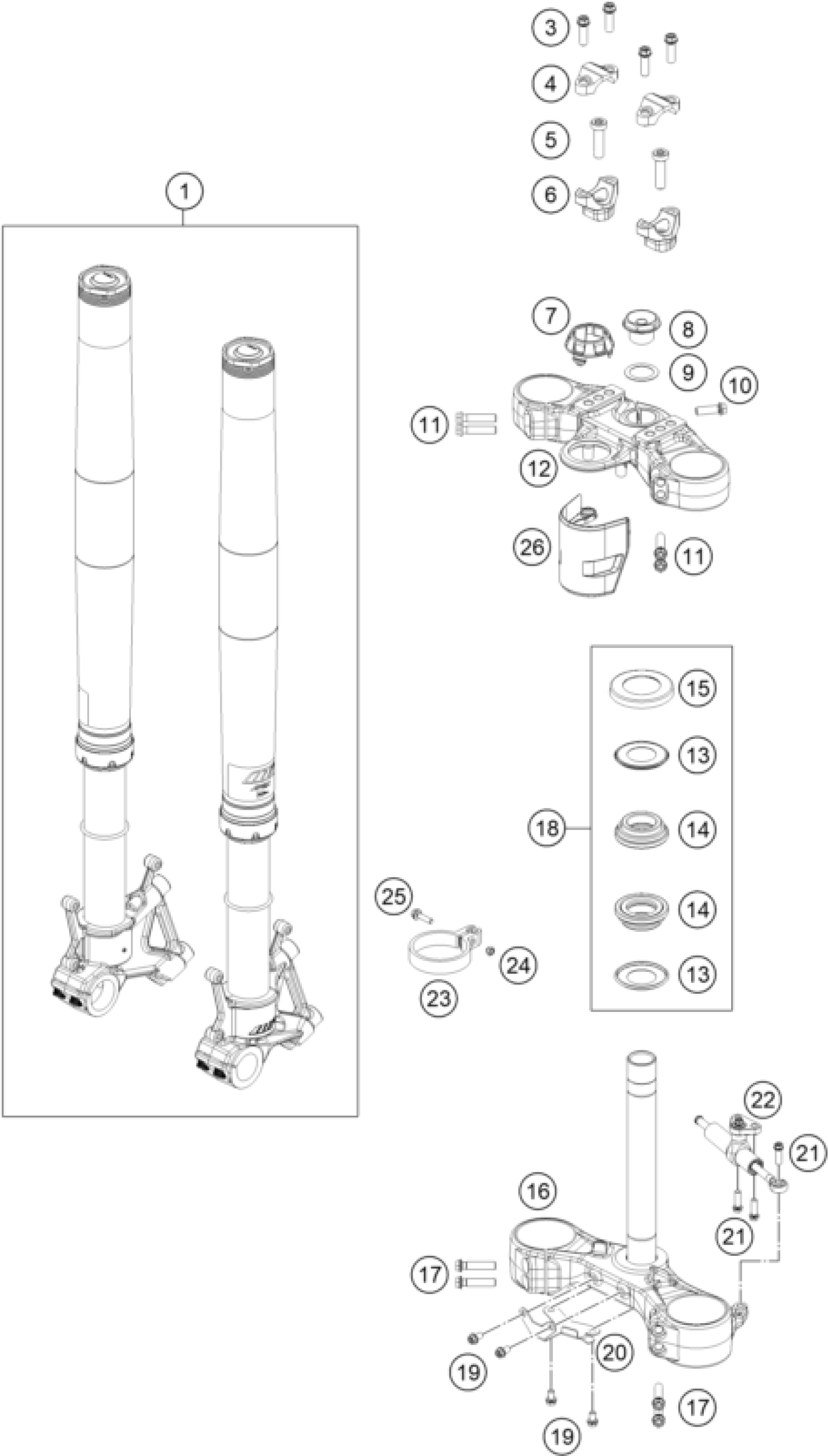

KTM 790 ADVENTURE, white-CKD w/o engine 2021 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork KTM 790 Adventure S 19

05586S2901

$2,301.59

3

HH collar screw M8x25

0025080256

$2.05

4

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

5

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

6

HANDLEBAR SUPPORT D=28 H=32 BL

5940103903230

$34.87

7

Ignition lock cover

63501045010

$5.88

8

Steering head screw

6900103600033

$25.80

9

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

10

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

11

HH collar screw M8x30

0025080306

$3.08

12

Top triple clamp

6350103403030S

$278.15

13

Stearing head gasket

69001084100

$5.23

14

STEERINGHEAD KPL.17

69001181000

$37.77

15

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

16

Bottom triple clamp cmpl.

6350103203030S

$355.57

17

HH collar screw M8x35 TX40

0025080356

$4.11

18

Stearing head rep. Kit

69001181010

Unavailable

19

Hex collar screw M6x10 ISA30 S

0025060106S

$1.49

20

Retaining bracket brake line

63501072000

$30.19

21

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

22

Steering damper790 Adventure c

16181S55E

$260.11

23

SPEEDOMETER CABLE GUIDE MARZO.

54601099000

$4.11

24

Self locking nut DIN 985 M5

0985050003

$2.05

25

HH collar screw M5x20 TX30

0025050206

$2.05

26

Ignition lock cover

63511066010

$21.03
