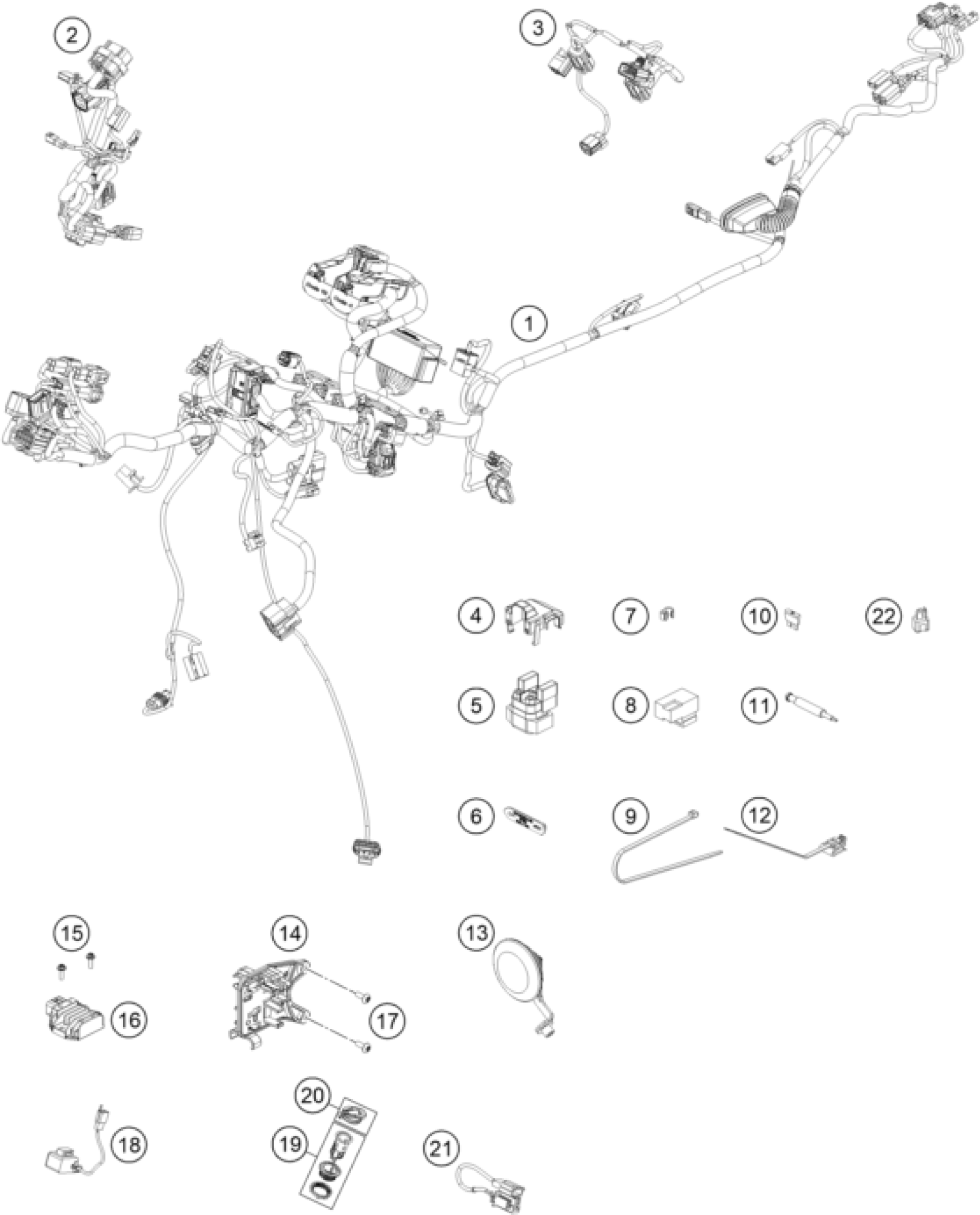

KTM 790 Adventure R Rally 2020 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness

63511075000

$882.63

2

Front wiring harness

63511078000

$211.86

3

Engine wiring harness

63511085000

$66.19

4

Cover cap starter relay

64111058010

$3.08

5

Starter relay

76211058000

$79.19

6

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

6

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

7

BAR SPACER 4/7 BLACK

60111094100

$5.79

8

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

9

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

9

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

9

Cable tie 200/4.6mm black

44011076200

Unavailable

10

Plug-in fuse, big 30A

58011109130

$2.05

11

Temperatur sensor

61111018100

$31.59

12

Cable holder, attachable

64111059020

$3.08

13

DC HORN 12V

76011060100

$20.66

14

Front connector support

63511048000

$5.23

15

HH collar screw M6x20 TX30

0024060206

$3.08

16

VOLTAGE REGULATOR

60311034000

$177.55

17

Oval head screw M5x14 TX25

58605083014

$3.08

18

FLASHER UNIT

76511030000

$23.18

19

Power socket 12V

60711042000

$55.81

20

Lid 12V-socket

60311042050

$7.38

21

Inter. wiring harness, turn si

63511080000

$11.12

22

DIODE S3H-15 97

58411096100

$9.81
