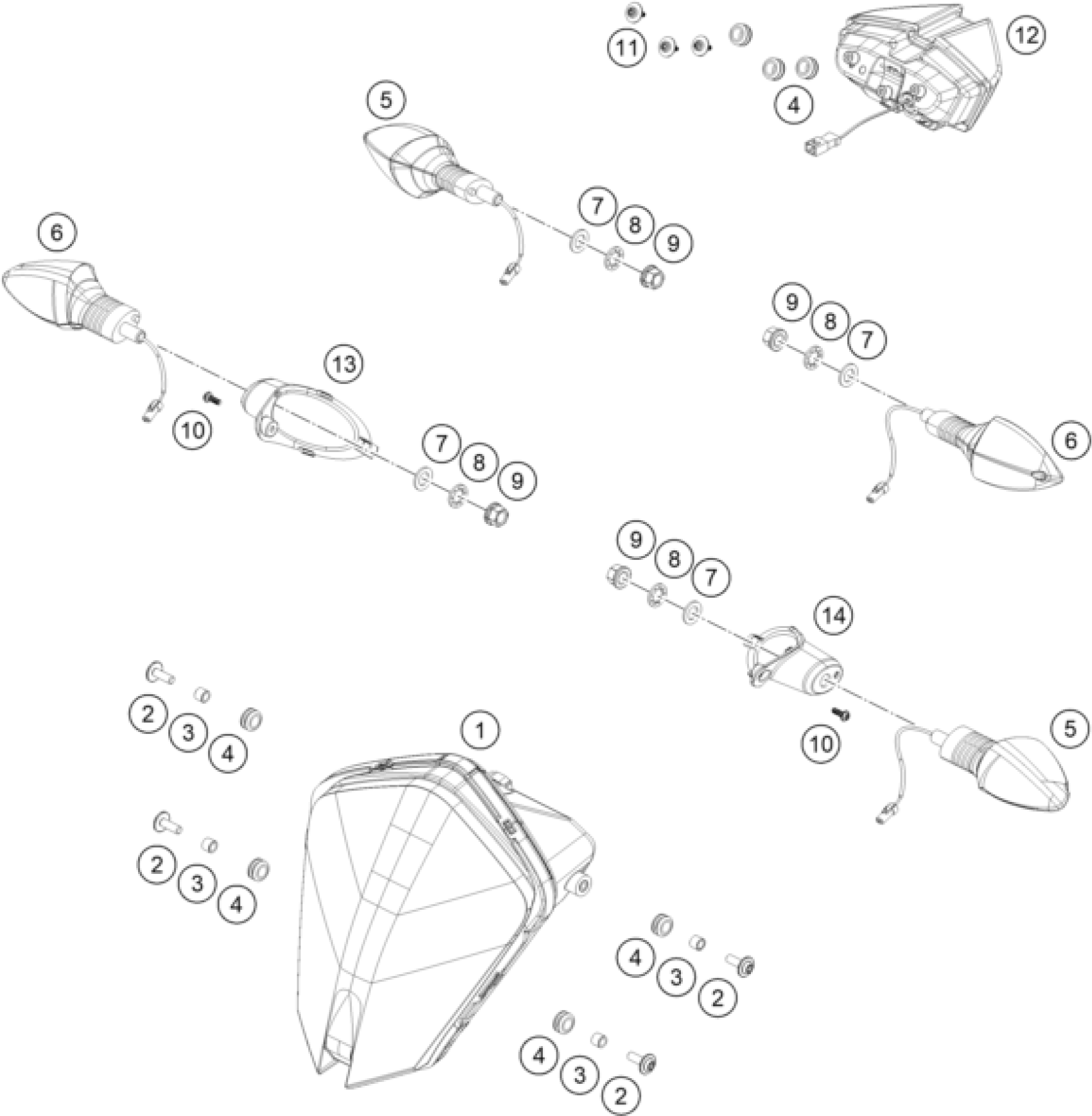

KTM 790 Adventure R Rally 2020 LIGHTING SYSTEM Diagram

#

Description
Price

1

Headlight

63514001200

Unavailable

2

special screw M6x18-8.8 ISA30

69014017000S

Unavailable

3

Bushing 6.1X9.2X7.5 08

69014014000

Unavailable

4

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

5

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

6

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

7

Washer DIN0433-M10

0433100003

Unavailable

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

9

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

10

EJOT Delta PT K40x12

0081040121

Unavailable

11

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

12

Tail light

63514040000

Unavailable

13

Right flasher adapter

63514011090

Unavailable

14

Left flasher adapter

63514010090

Unavailable
