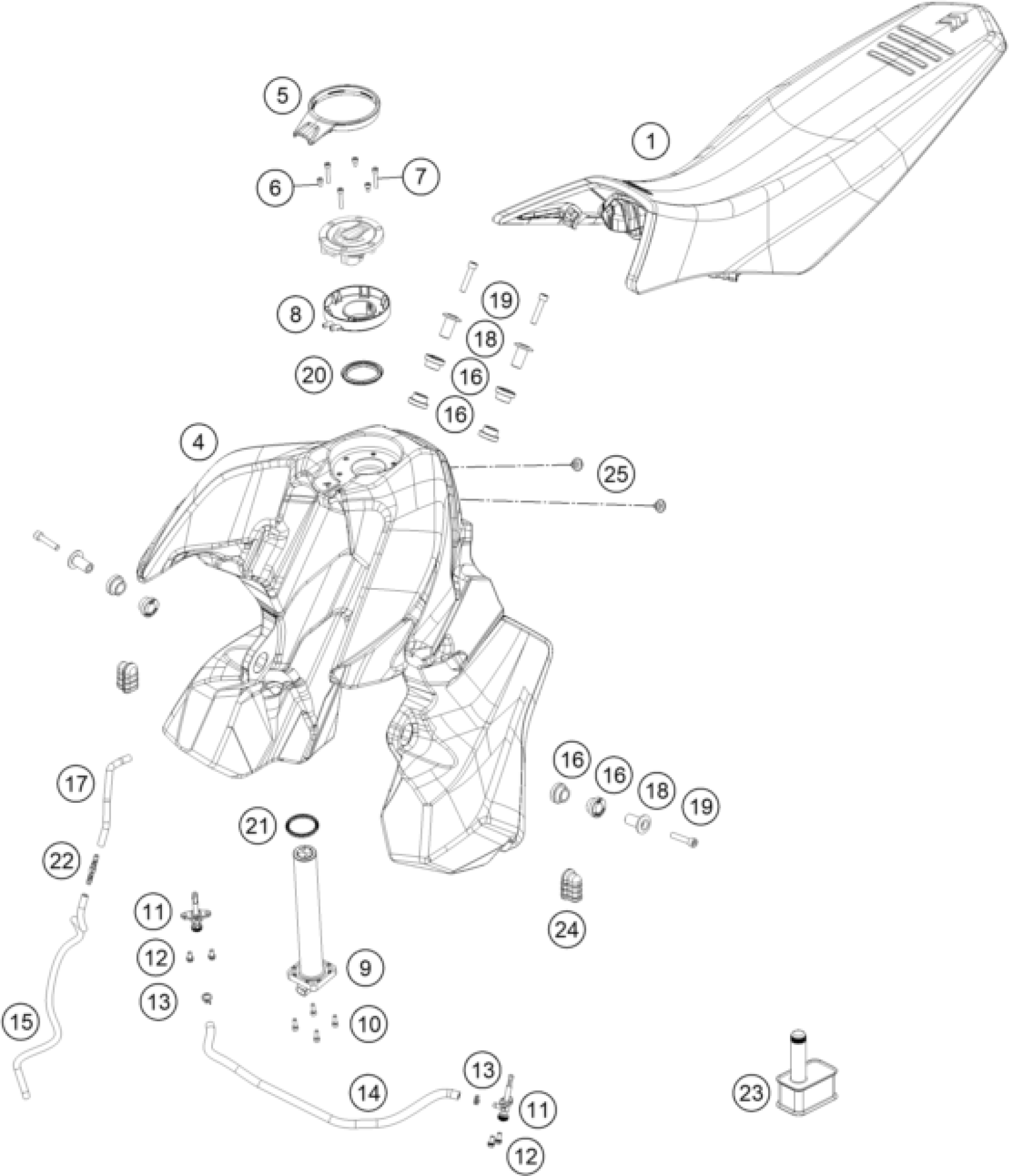

KTM 790 Adventure R Rally 2020 TANK, SEAT Diagram

#

Description
Price

1

Seat

63507941000EB

Unavailable

4

Fuel tank

63507113000HC

Unavailable

5

Fuel tank fairing

63507058000

Unavailable

6

SHCS DIN 912 M5x8

0912050083

Unavailable

7

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

8

Fuel filler cap

63507008050

Unavailable

9

Fuel level sensor

63507080100

Unavailable

10

AH collar screw DIN 912 M5x16

0912050163

Unavailable

11

Fuel cock cmpl.

58507003200

Unavailable

12

HH collar screw M6x12 TX30

0025060126

Unavailable

13

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

14

Interconnection hose

63507016000

Unavailable

15

hose tank overrun 140 mm

63515026000

Unavailable

16

collar bushing, front tank hol

61007065000

Unavailable

17

hose tank overrun 570 mm

63515027000

Unavailable

18

collar bushing, bearing, outsi

61007060000

Unavailable

19

AH collar screw DIN0912 M8x40

0912080403

Unavailable

20

gasket tank insert

21007008151

Unavailable

21

Gasket fuel lever sensor

60307080090

Unavailable

22

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

23

Motorex Fuel Stabilizer 125ml

00001000015

Unavailable

24

TANK RUBBER

60307020000

Unavailable

25

Seat screw M6x11.5 ISA30

0900000601200

Unavailable
