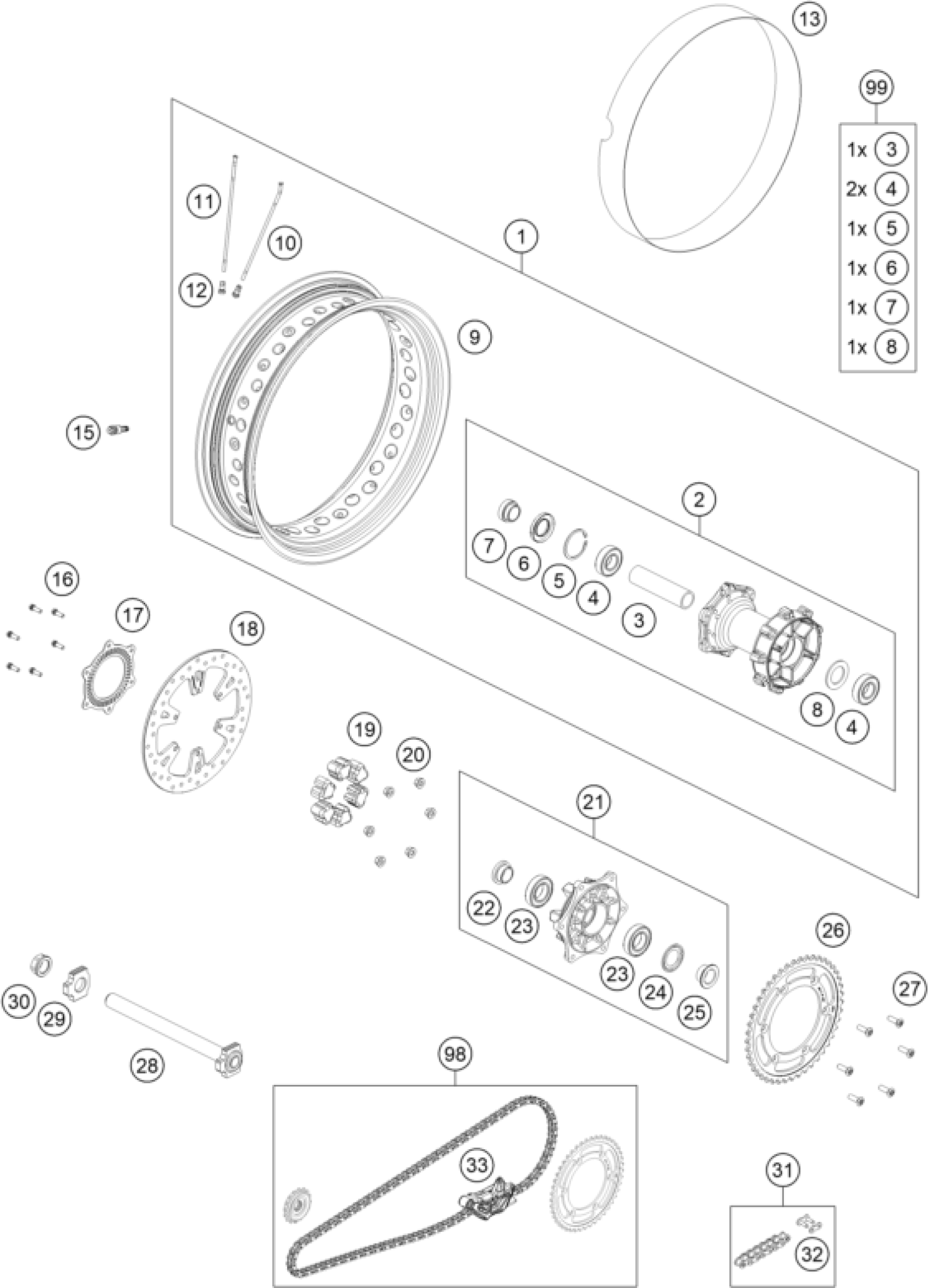

KTM 790 Adventure R Rally 2020 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel cmpl. 4x18" black

63510101044C1

Unavailable

2

REAR HUB CPL.

6031001014433

$396.62

3

Bearing spacing tube L=124.8mm

60010011000

$20.09

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

SPACER BUSHING REAR WHEEL R/S

60310013000

$18.13

8

Spacer ring 03

60010015000

$10.56

9

Rim, rear, 4x18" black

63510170000C1

Unavailable

10

Spoke M5/4.00x199.5

60710071199

Unavailable

11

Spoke M5/4.00x212.3

60710071212

Unavailable

12

SPOKE NIPPLE QUADRAX M5

60310072100

$2.05

13

Tube protector 18"

60710073000

$22.15

15

VALVE

60309176000

$25.49

16

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

17

Phonic wheel ABS, rear

60142021100

$21.59

18

Brake disc rear

63510060100

$211.49

19

Rubber damping block 91

54610459000

$8.03

20

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

21

Sprocket wheel carrier cmpl. b

7501005004433

$178.02

22

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

23

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

24

NILOS RING 6006AV

60110016000

$9.72

25

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

26

Sprocket 45-t steel

75010051045

$66.94

27

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

28

Rear axel cmpl.

69010181044

$76.10

29

Chain tension adjuster, right,

60010084000

$22.81

30

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

31

chain DID 118 roll

76910065118

Unavailable

32

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

33

chain X-Ring 118 links with ch

63510067118

$183.91

98

Drive set 16/45

00050002100

Unavailable

99

REAR WHEEL REP. KIT ADV 13-14

60310015000

Unavailable
