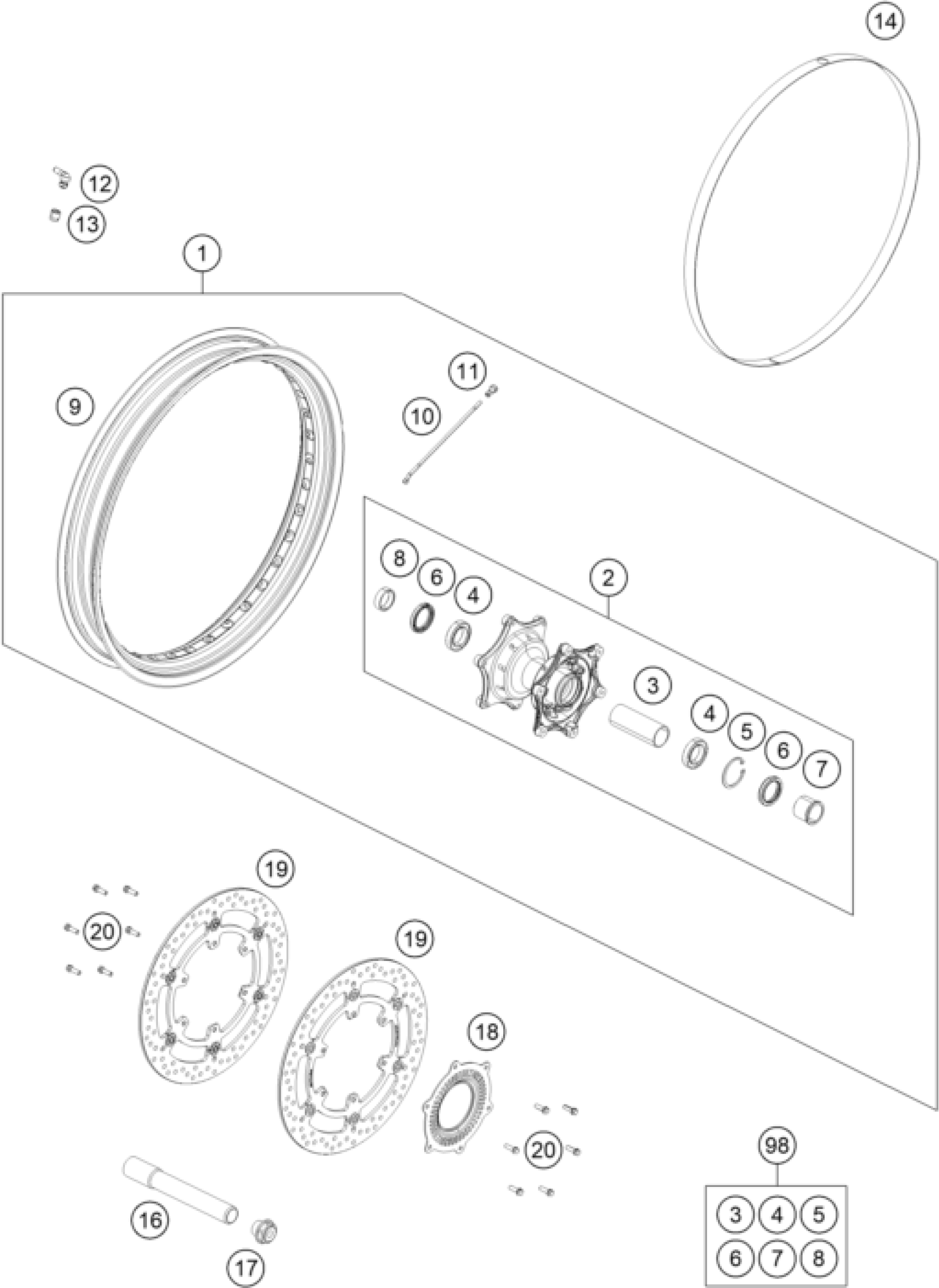

KTM 790 Adventure R Rally 2020 FRONT WHEEL Diagram

#

Description
Price

1

Front wheel cmpl. 2,15x21" bla

63509101044C1

Unavailable

2

FRONT HUB CPL.

6030901014433

$429.44

3

BUSHING SPACER TUBE FRONT

60309011000

$17.85

4

Grooved ball bearing 6906

0625069068

$34.68

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPACER BUSH. FRONT WHEEL L/S

60309012100

$19.53

8

Spacer bush. fr. whee R/S 03

60009013000

$14.86

9

Rim, front, 2.15x21" black

63509170000C1

Unavailable

10

Spoke, M5 / 3.9 x 225.4

60709071225

Unavailable

11

SPOKE NIPPLE QUADRAX M5

60310072100

$2.05

12

VALVE

60309176000

$25.49

13

NUT AIR PRESSURE SENSOR

60312033050

$14.11

14

Tube protector 21"

50309073000

$10.09

16

Wheel spindle, front

60309081100

$102.56

17

STEERING HEAD SCREW 09

6900103600001

$16.73

18

Phonic wheel ABS

60342020000

$27.95

19

BRAKE DISC FRONT D=320

63509060000

$243.84

20

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

98

FRONT WHEEL REP. KIT ADV. 1050

60609015000

Unavailable
