Description

Price

1

Akrapovi# "Slip-on Line"

63505979000

Unavailable

2

Heat protection

63505979030

Unavailable

3

Heat shield front

63505979040

Unavailable

4

STICKER AKRAPOVIC 44x150

60005099003

$8.49

5

Silencer cap

63505979050

Unavailable

6

MANIFOLD GASKET

69005005005

$16.82

7

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

8

CLAMP CPL.

69005050000

$24.58

9

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

10

Pre-muffler

64105050000

$1,529.28

11

O2 Sensor LSF 4

63541090000

$138.46

12

O2 Sensor LSF 4

63541190000

$138.46

13

Header

64105007100

$600.36

14

self-locking nut M8 Cu

51010086100

$3.08

15

Exhaust gasket

64105005000

$5.23

16

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

17

collar bushing 8.5x12x23.5x10

58405050065

$5.23

18

damp. component silicone grey

54305068100

$8.31

22

stud screw 835 M8x25 - 10.9

63505015000

$2.05

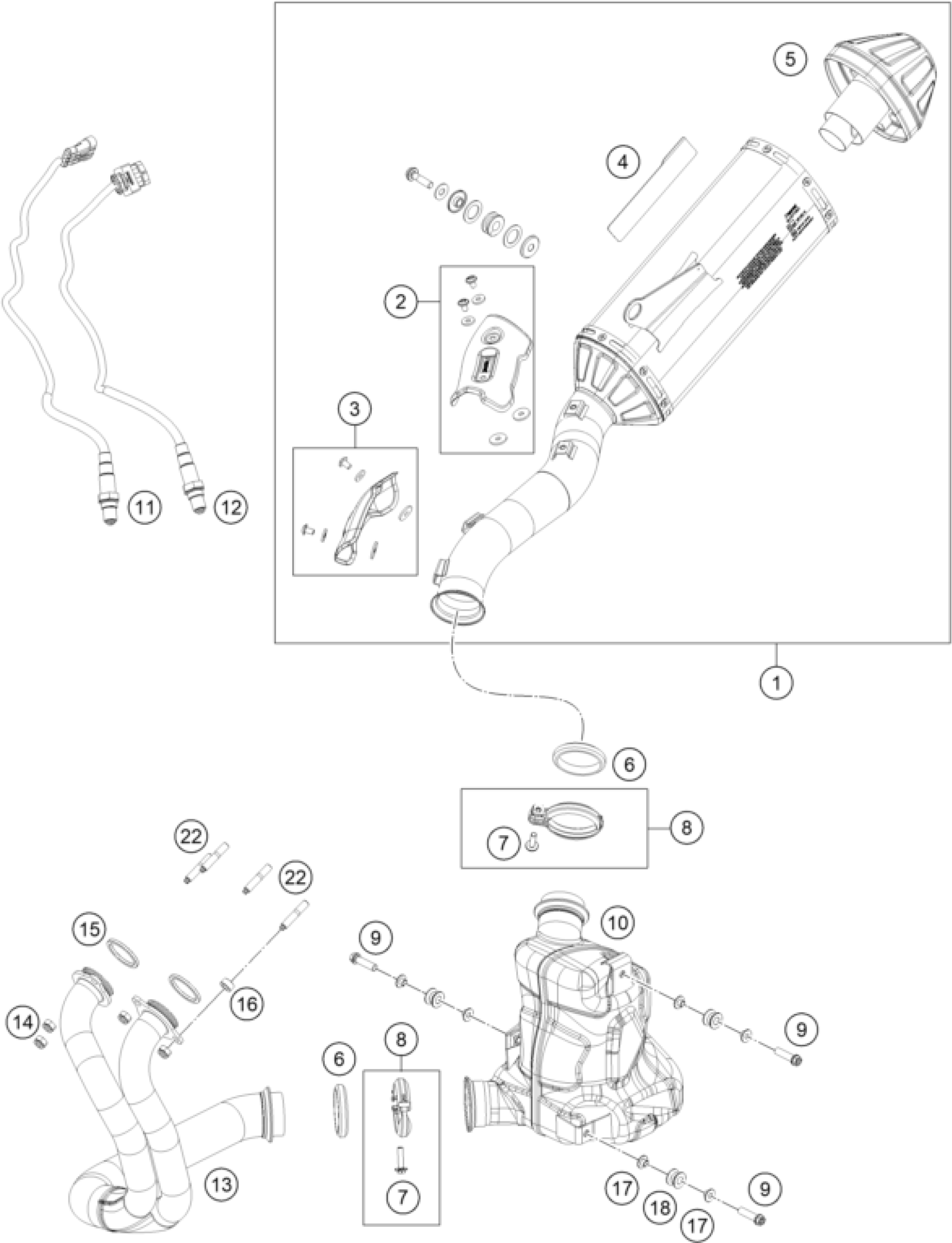

KTM 790 Adventure R Rally 2020 EXHAUST SYSTEM Diagram

Akrapovi# "Slip-on Line"

Heat protection

Heat shield front

STICKER AKRAPOVIC 44x150

Silencer cap

MANIFOLD GASKET

HH COLLAR SCREW M6X25 TX30

CLAMP CPL.

HH COLLAR SCREW M8X30 TX40

Pre-muffler

O2 Sensor LSF 4

O2 Sensor LSF 4

Header

self-locking nut M8 Cu

Exhaust gasket

SPACER BUSH. 8,5X15X7,5 05

collar bushing 8.5x12x23.5x10

damp. component silicone grey

stud screw 835 M8x25 - 10.9
