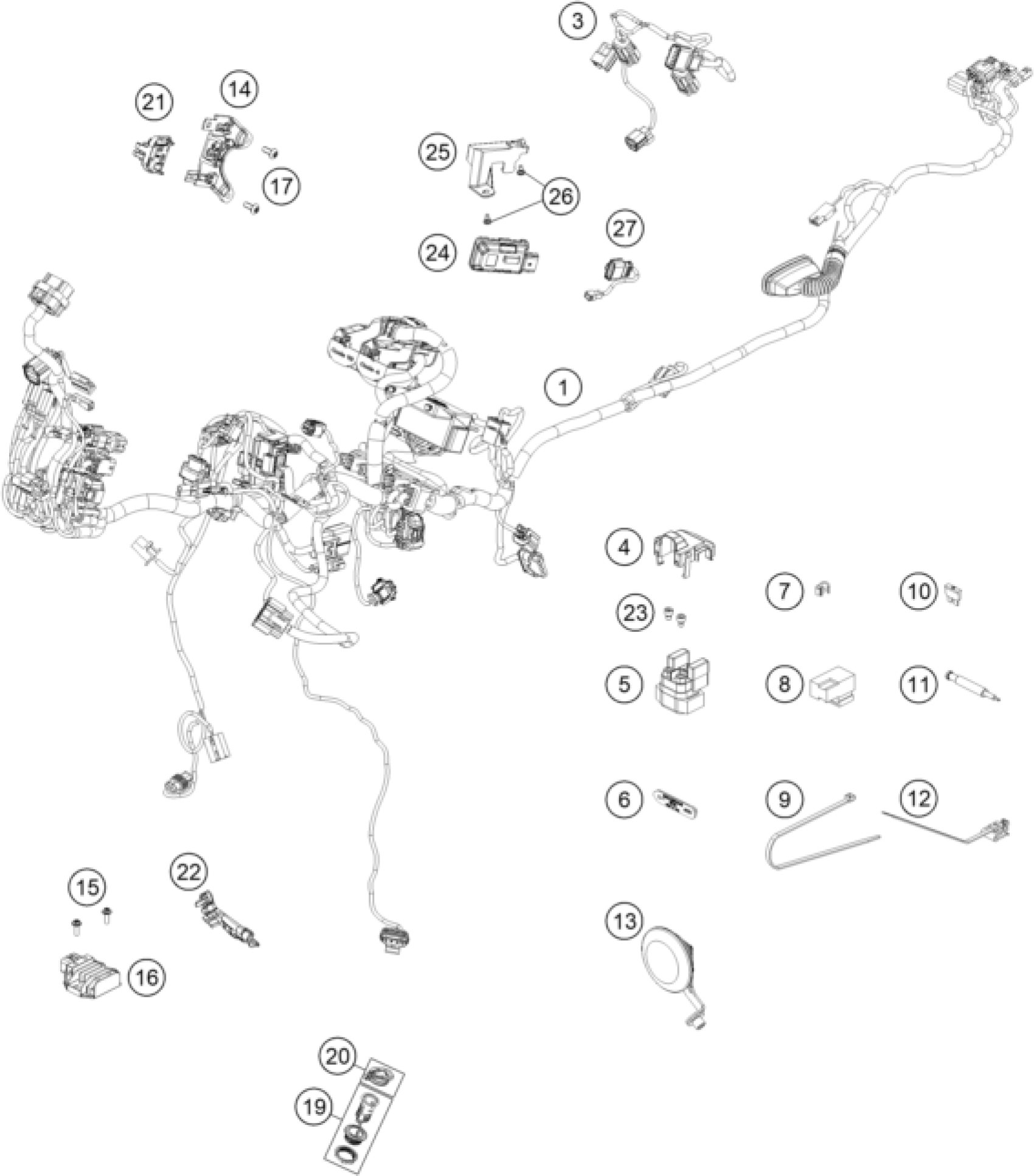

KTM 790 ADVENTURE R IKD 2026 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness

A61011475100

Unavailable

3

Engine wiring harness

63711085000

$65.16

4

Protection cap starter relay

C90711058010

$2.05

5

Starter relay

C66111058000

Unavailable

6

RUBBER CABLE TIE 75MM 03

C0330001409100

Unavailable

6

RUBBER CABLE TIE 45MM 03

C90711093045

Unavailable

7

BAR SPACER 4/7 BLACK

C90711094000

$1.49

8

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

9

CABLE TIE 140/2,5MM BLACK

C90011076140

Unavailable

9

CABLE TIE 250/4,8MM BLACK

C90711076250

Unavailable

10

FUSE 30 A

C90711109030

$1.49

11

TEMPERATURE SENSOR

C61111018100

$20.00

12

Clip cable tie

C64111059020

Unavailable

13

Gleichstromhorn 12V

C76011060100

$26.36

14

Connector support front

C61011083000

$2.70

15

HH collar screw M6x20 TX30

C0000250602000

$1.49

16

Regulator rectifier

60311034100

Unavailable

17

Oval head screw m5x14 tx25

C0900000501400

Unavailable

19

Power socket 12V

60711042000

$55.81

20

Lid 12V-socket

C60311042050

$1.49

21

plug board front

C61011083050

$2.33

22

cable bracket voltage regulato

C61011034010

$2.05

23

AH OVAL SCREW ISO 7380 M 6X8

C0073800600800

$1.49

24

UNIT CONNECTIVITY

96314086000

Unavailable

25

Bccu holder

C66114086010

Unavailable

26

Special screw M5x12

69008121160

$1.67

27

Adaptercable bCCU

C66111075020

Unavailable
