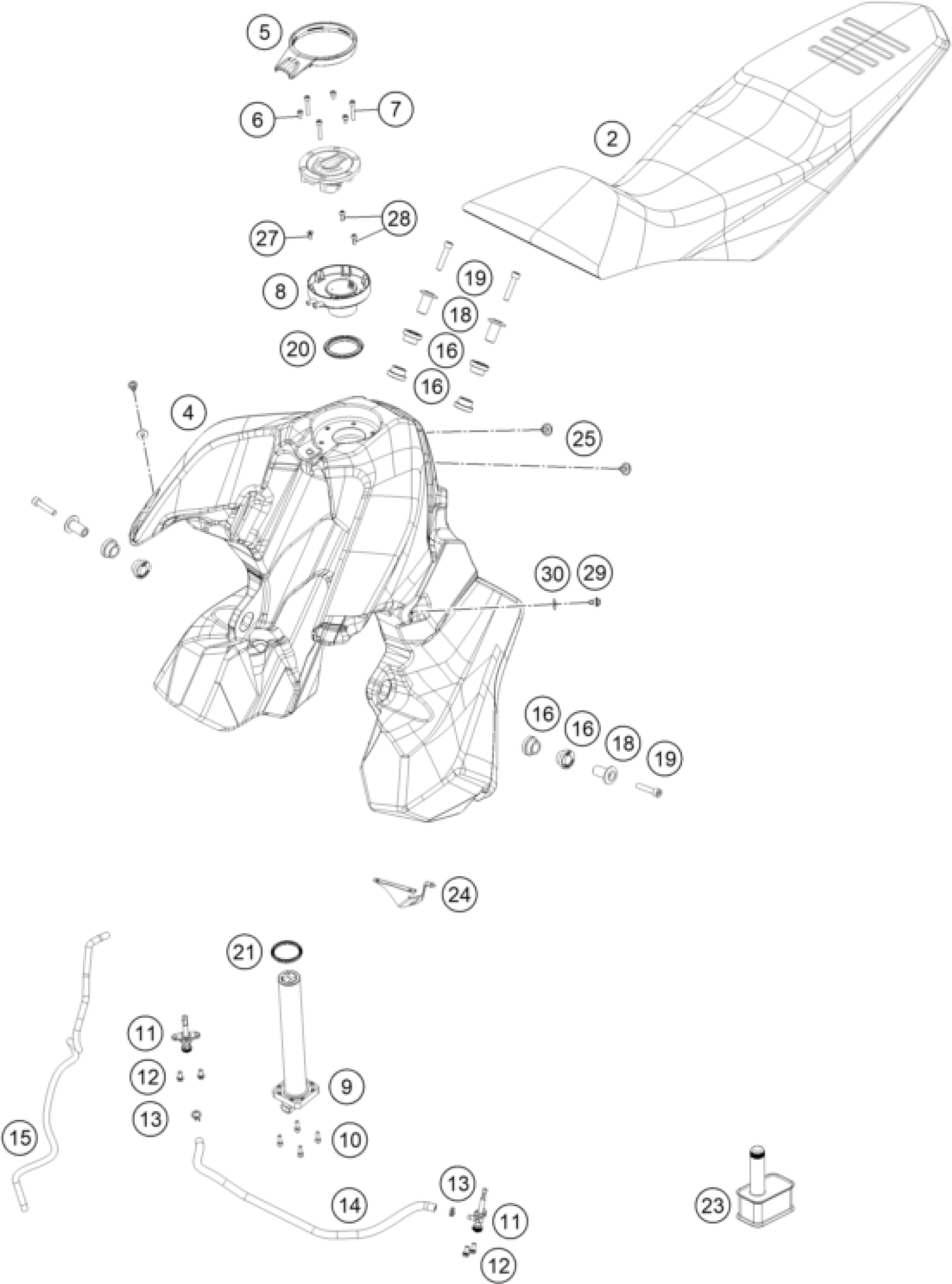

KTM 790 ADVENTURE R IKD 2026 TANK, SEAT Diagram

#

Description
Price

2

Rider seat 800 Adv. R

63507140000EB

Unavailable

4

Fuel tank

C63507613000HC

Unavailable

5

Fuel tank fairing

C63507058000

Unavailable

6

Cap head screw, ISO 14579, M5x

C0912050083

Unavailable

7

AH SCREW DIN0912-M 5X30

C0009120503000

Unavailable

8

Fuel tank filler neck

A61007008050

Unavailable

9

Fuel lever sensor

63507080200

Unavailable

10

AH SCREW DIN0912-M 5X16

C0009120501600

Unavailable

11

FUEL COCK CPL.

C58507003200

Unavailable

12

HH collar screw M6x12 TX30

C0000250601200

Unavailable

13

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

14

Interconnection hose

C63507016000

Unavailable

15

Tank overflow hose 718mm

C63515027100

Unavailable

16

collar bushing, front tank hol

C61007065000

Unavailable

18

collar bushing, bearing, outsi

C61007060000

Unavailable

19

SHCS DIN 912 M8x40

N0009120804000

Unavailable

20

Seal, tank insert

C21007008251

Unavailable

21

Gasket fuel level sensor

C90707080090

Unavailable

23

Motorex Fuel Stabilizer 125ml

00001000015

Unavailable

24

Cover fuel pump

C64607087010

Unavailable

25

Seat screw M6x11.5 ISA30

C0900000601200

Unavailable

27

COUNTERSUNK SCREW ISA25 M5X12

C0000190501200

Unavailable

28

Oval head screw m5x14 tx25

C0900000501400

Unavailable

29

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

30

Washer DIN9021-A 6,4

C0690000600200

Unavailable
