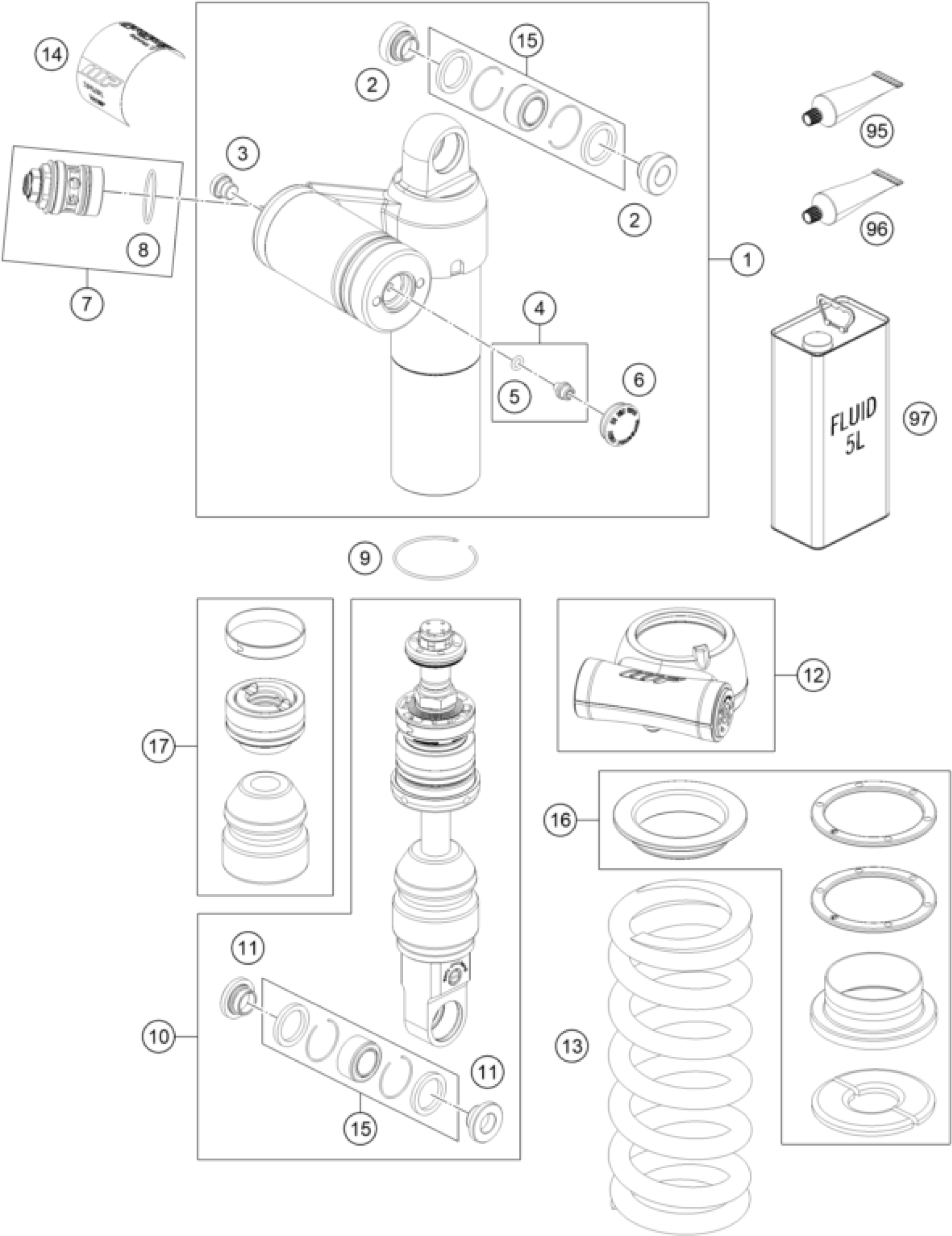

KTM 790 ADVENTURE R IKD 2026 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

shock upper part KTM 790 ADV R

46181324S1

$464.97

2

Bearing bush 12x15/18/24,5x13,

46180064

$16.73

3

HS cylinder-head screw R1/8 l8

50180095

$2.42

4

PLUG SCREW M5X6 CPL.

36120151S

$4.11

5

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

6

Rubber cap do not open 22x5,5

46811208

$3.08

7

Compression adjuster cpl. Natu

50180213S34

$94.15

8

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

10

shock bottom part KTM 890 ADV

46181327S2

$495.54

11

Distance bush 12x15/18/24,5x10

46180007

$17.76

12

Preload-Adjuster D46mm s10mm r

15000S23

$247.30

13

Main Spring (59) 95-210 shock

91010366

$61.61

14

Sticker set XPLOR PDS 90x40

52000214

$32.25

15

Ball joint bearing kit top 12m

R12012T

Unavailable

16

REP. KIT WASHERS

R15020

Unavailable

17

Repair kit ADV. R

RP10013

Unavailable

97

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

95

GREASE

T625

Unavailable

96

GREASE RES. PP300 100GR

T158

Unavailable

9

Round-wire snap ring 49x1,5

46810010

$3.08
