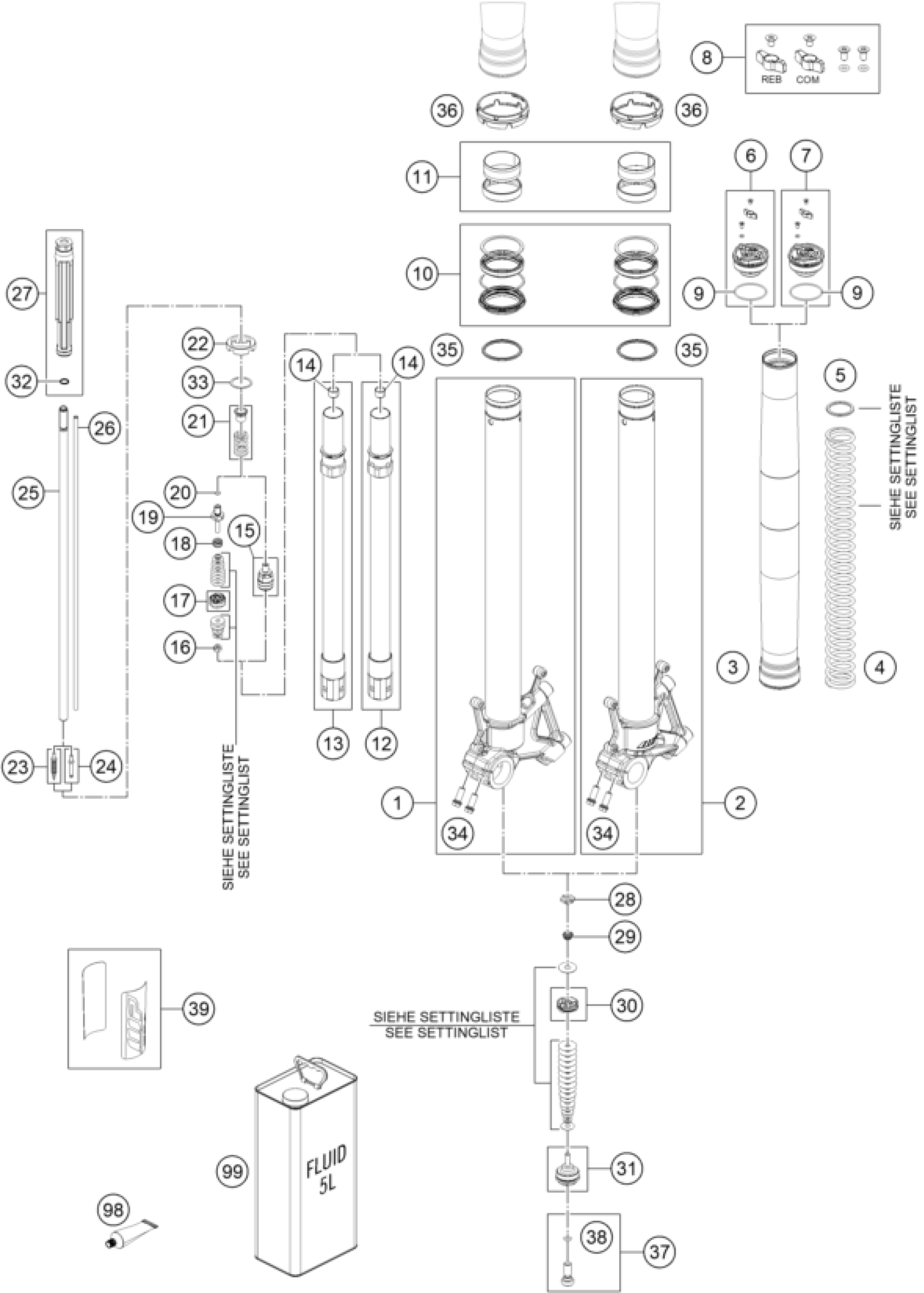

KTM 790 ADVENTURE R IKD 2026 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

axle clamp right d48 25mm cpl

48601952S1

Unavailable

2

axle clamp left d48 25mm cpl.

48601951S1

Unavailable

3

Outer tube L567 D54 / D60

48601794

Unavailable

4

Mainspring (44) 6,7-460 fork

91410142

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable

5

Washer 35x43x2,5 plastic

48600456

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable

6

screw cap M51x1,5 rebound cpl.

48602028S4

Unavailable

7

screw cap M51x1.5 compression

48602028S3

Unavailable

8

Adjuster kit screw cap

RP10021

Unavailable

9

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

10

Sealkit 48mm SKF black

RP10012

Unavailable

11

Guide bushing set fork 48mm

R14047

Unavailable

12

Tube L350 with screwsleeve and

48600763S3

Unavailable

13

Tube L350 with screwsleeve

48600763S4

Unavailable

14

Guide bushing 12x14x10

48600430

Unavailable

15

Tap compression cpl.

48601843S2

Unavailable

16

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

17

Midvalve piston assembly d23

48602002S

Unavailable

18

Spring (11,7) 1,5-8 valve

35480377

Unavailable

19

Tap 6x46 rebound

48600576

Unavailable

20

O-ring 6x1,2 NBR70

48600299

Unavailable

21

rebound spring C60 cpl

48601929S

Unavailable

22

spring support ring

48601922

Unavailable

23

Needle 4,5x43,6 cpl.

48601096S

Unavailable

24

Needle 4,5x38,2 cpl.

48601558S

Unavailable

25

Piston rod 12x501

48601923

Unavailable

26

Adjuster tube L=471.5

48601924

Unavailable

27

Stop 12,4x31,9x200,3 kpl.

S228700003S0100

Unavailable

28

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

29

Spring (8,5) l6,5 valve

48600202

Unavailable

30

Piston 6x27,3x9 compression cp

48601934S

Unavailable

31

Tap 6x42,5 base valve

48601921

Unavailable

32

O-ring 11x2,5 NBR70 PTFE yello

04500003

Unavailable

33

Shim 27,5x33x0,3

48601702

Unavailable

34

HH collar screw M8x20

0025080206

Unavailable

35

Stroke indicator 48mm red

48602007

Unavailable

36

Fork protection ring 60,1mm

48601986

Unavailable

37

RingISK screw M10x25 with o-ri

48601976S

Unavailable

39

sticker Xplor OC 100x46

52000281SET

Unavailable

98

Fuchs grease IPR (250g)

T14034

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

38

O-ring 7x2 NBR70

35480085

Unavailable

4

mainspring (44) 6.2-460 set fo

91410162S

Unavailable

4

mainspring (44) 7.2-460 set fo

91410163S

Unavailable
