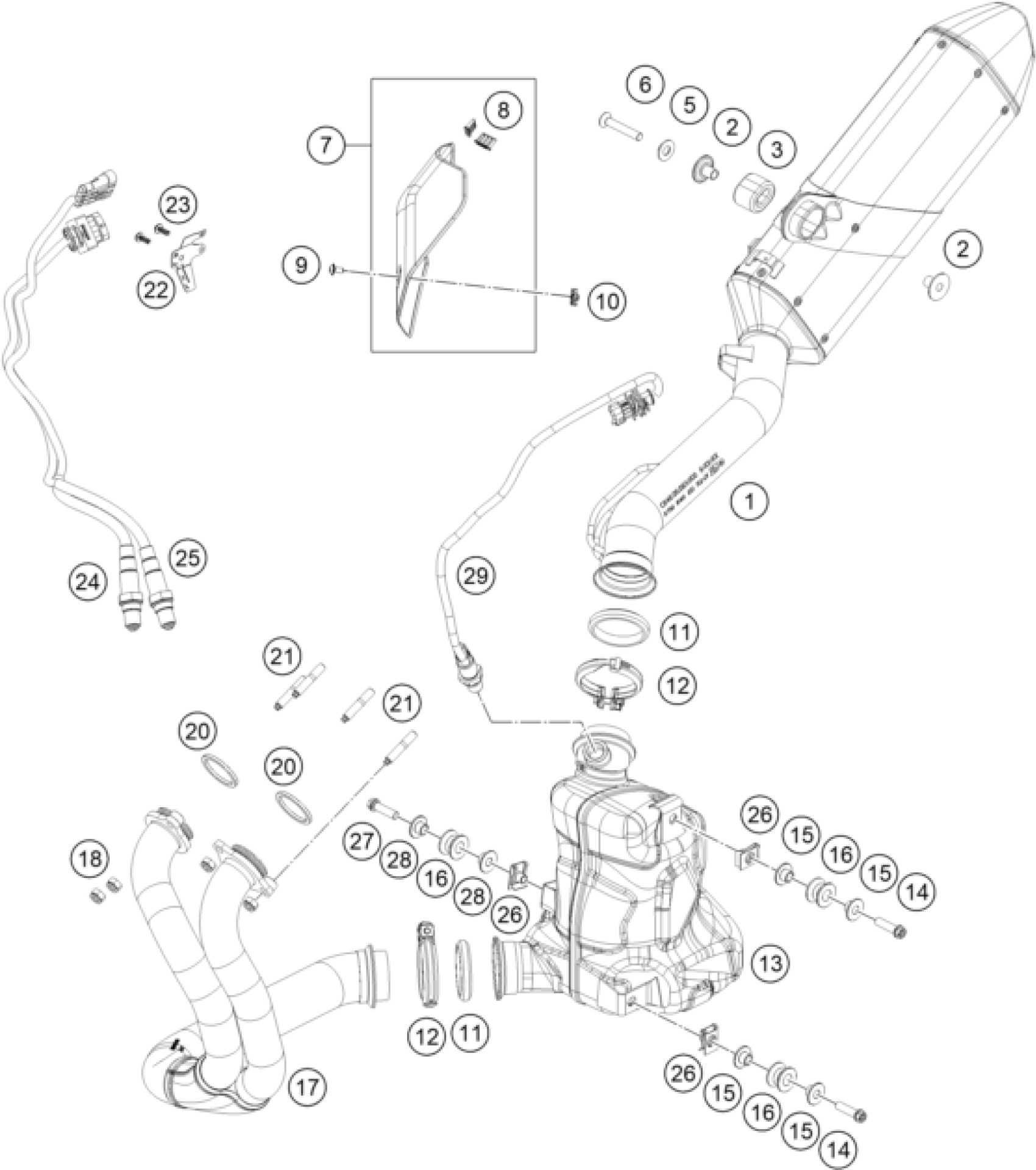

KTM 790 ADVENTURE R IKD 2026 EXHAUST SYSTEM Diagram

#

Description
Price

1

silencer

C64605083000

$882.07

2

BUSHING 8,5X11X29

C90705169000

$8.59

3

DAMPING RUBBER

C90705068000

$9.34

5

conical seat Alu

C90705069000

$5.70

6

COUN.-SUNK SCREW M8X50 ISA10.9

C0000190805000

$2.05

7

heat protection black cpl.

C63505111000C1

$56.00

8

Damping element silicon

C90705011011

$1.49

9

torx screw M5x10 black

C0900000501000

$1.49

10

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

11

Manifold gasket

C90705005005

$5.51

12

Exhaust clamp tube 50 mm

C63605058200

Unavailable

13

Premuffler

A67605050000

Unavailable

14

HH COLLAR SCREW M8X35 TX40

C0000250803500S

$2.05

15

Collar bushing 8.5x12x23.5x10

C90705050065

$3.08

16

damp. component silicone grey

C90705067000

$5.88

17

Header pipe

C64605007000

$315.65

18

self-locking nut M8 Cu

51010086100

$3.08

20

Exhaust gasket

C90705005000

$2.05

21

stud screw 835 M8x25 - 10.9

C63505015000

$2.33

22

Bracket oxygen sensor socket c

C90742040020

$6.91

23

EJOT PT screw K50x14

0081050141

$1.49

24

O2 Sensor LSF 4

63541090000

$138.46

25

Oxygen sensor

63541190100

$160.90

26

RANGE CHANGE METAL NUT M8

54603048000

$4.11

27

Collar screw M8x40 ISA40 SS

C0000250804000S

$2.05

28

Collar bushing 8.5x12x23.5x11.

C0800000901201

Unavailable

29

Oxygen sensor

A60741090000

$185.12
