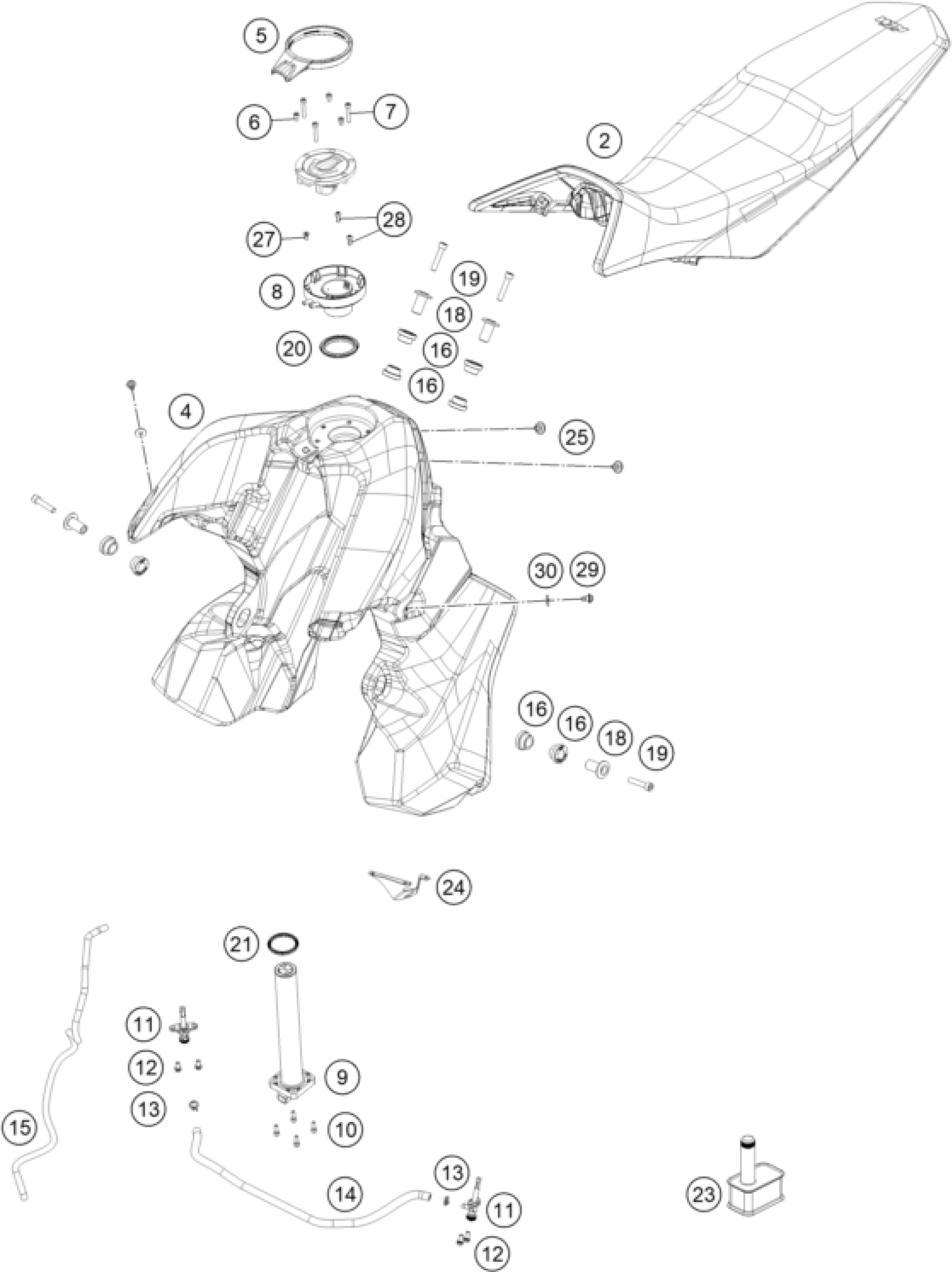

KTM 790 ADVENTURE R 2024 TANK, SEAT Diagram

Sitzbank 800 Adv. R

63507140000

$219.16

Fuel tank

C63507613000CB

$1,948.16

Fuel tank fairing

C63507058000

$3.92

Cap head screw, ISO 14579, M5x

C0912050083

$1.49

AH SCREW DIN0912-M 5X30

C0009120503000

$1.49

Fuel tank filler neck

A61007008050

$13.46

Fuel lever sensor

63507080200

$140.15

AH SCREW DIN0912-M 5X16

C0009120501600

$1.49

FUEL COCK CPL.

C58507003200

$17.85

HH collar screw M6x12 TX30

C0000250601200

$1.49

CLAMP YDNAC 10128 12MM

58031005000

$3.08

Interconnection hose

C63507016000

$41.13

Tank overflow hose 718mm

C63515027100

$16.35

collar bushing, front tank hol

C61007065000

$1.49

collar bushing, bearing, outsi

C61007060000

$16.07

SHCS DIN 912 M8x40

N0009120804000

$2.05

Seal, tank insert

C21007008251

$10.37

Gasket fuel level sensor

C90707080090

$3.08

Motorex Fuel Stabilizer 125ml

00001000015

$19.81

Cover fuel pump

C64607087010

$10.65

Seat screw M6x11.5 ISA30

N0900000601200

$4.11

COUNTERSUNK SCREW ISA25 M5X12

C0000190501200

$1.49

Oval head screw M5x14 TX25

58605083014

$3.08

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05
