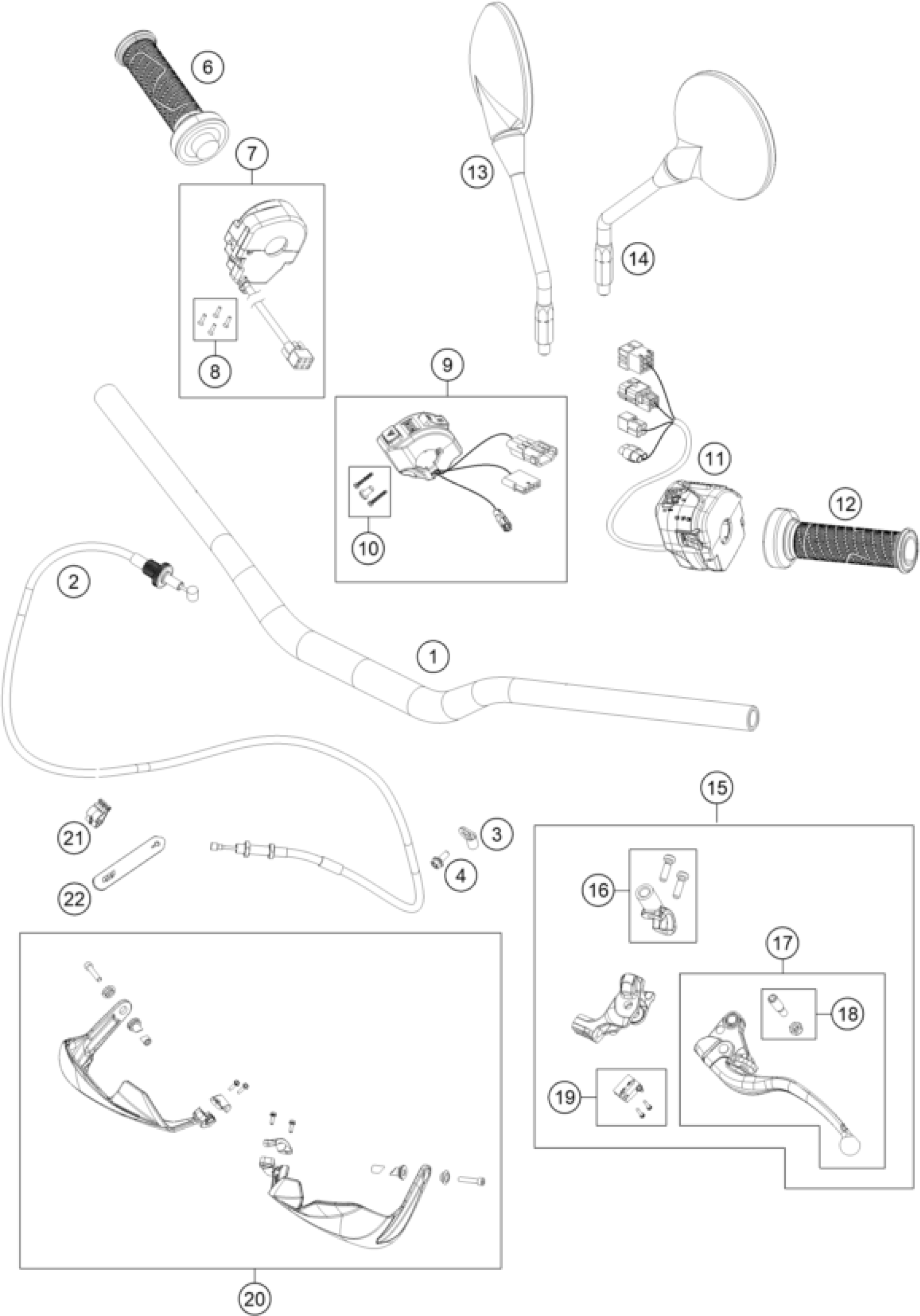

KTM 790 ADVENTURE R 2024 HANDLEBAR, CONTROLS Diagram

Handlebar L=813mm, Dk=28.5mm

A64602001000C1

$160.34

Clutch cable wire

A64602090000

$64.51

PVC clamp 6.4 MM Heyman

64132070000

$1.49

HH collar screw M5x12 TX30

C0000250501200

$1.49

Grip tube (no heating)

60702012000

$74.51

Ride-by-wire without throttle

60711012000

$100.88

SCREW SET START-STOP SWITCH

76011073110

$6.72

Start / emergency stop switch

A61011074000

$94.15

Screw set start-stop switch

61411174010

$5.23

Combination switch

76011270200

$88.39

Grip LHS w/o heater

60702039100

$86.29

MIRROR R/S

C28512040000

Unavailable

MIRROR L/S

C58412040100

Unavailable

Clutch lever cmpl.

A64602031000

$41.22

Clamp cpl. incl. 2 screws

6350204400030

$8.69

Clutch lever

63502040000

$103.03

Kit lever pin

64102038000

$14.39

Switch

63511049000

$48.52

Handguard kit, left + right, c

A61002082044C11

$132.29

Line guide

C90713026000

$2.52

RUBBER CABLE TIE 45MM 03

C90711093045

Unavailable
