Description

Price

1

Silencer

63505183000

Unavailable

2

Heat protection black cmpl.

63505111000C1

Unavailable

3

Torx screw M5x10 black

78105181010

Unavailable

4

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

5

DAMPING ELEMENT SILICON

27005011011

Unavailable

6

Manifold gasket

69005105005

Unavailable

8

Exhaust clamp tube 50 mm

63605058100

Unavailable

9

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

10

Premuffler

C90005050000

Unavailable

11

O2 Sensor LSF 4

63541090000

Unavailable

12

O2 Sensor LSF 4

63541190000

Unavailable

13

Mainfold

6WWV-021100-5000

Unavailable

14

self-locking nut M8 Cu

51010086100

Unavailable

15

Exhaust gasket

64105005000

Unavailable

16

SPACER BUSH. 8,5X15X7,5 05

61005009000

Unavailable

17

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

18

damp. component silicone grey

54305068100

Unavailable

19

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

Unavailable

20

Shape disc Alu

60405069000

Unavailable

21

Bushing 8.5X11X29

61305069000

Unavailable

22

stud screw 835 M8x25 - 10.9

63505015000

Unavailable

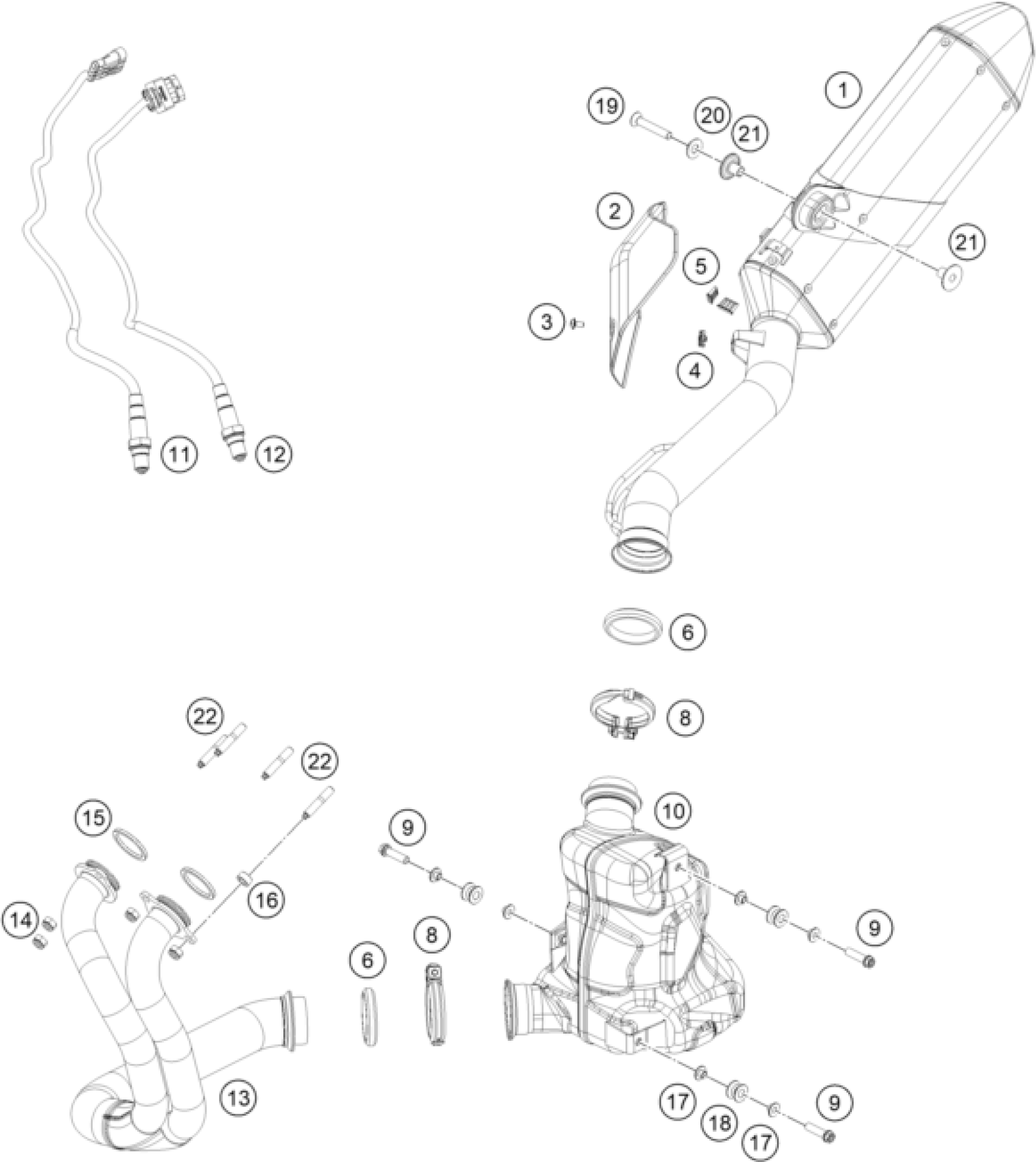

KTM 790 ADVENTURE,orange-CKD w/o engine 2022 EXHAUST SYSTEM Diagram

Silencer

Heat protection black cmpl.

Torx screw M5x10 black

RANGE CHANGE METAL NUT M5 INOX

DAMPING ELEMENT SILICON

Manifold gasket

Exhaust clamp tube 50 mm

HH COLLAR SCREW M8X30 TX40

Premuffler

O2 Sensor LSF 4

O2 Sensor LSF 4

Mainfold

self-locking nut M8 Cu

Exhaust gasket

SPACER BUSH. 8,5X15X7,5 05

collar bushing 8.5x12x23.5x10

damp. component silicone grey

COUN.-SUNK SCREW M8X50 ISA10.9

Shape disc Alu

Bushing 8.5X11X29

stud screw 835 M8x25 - 10.9
