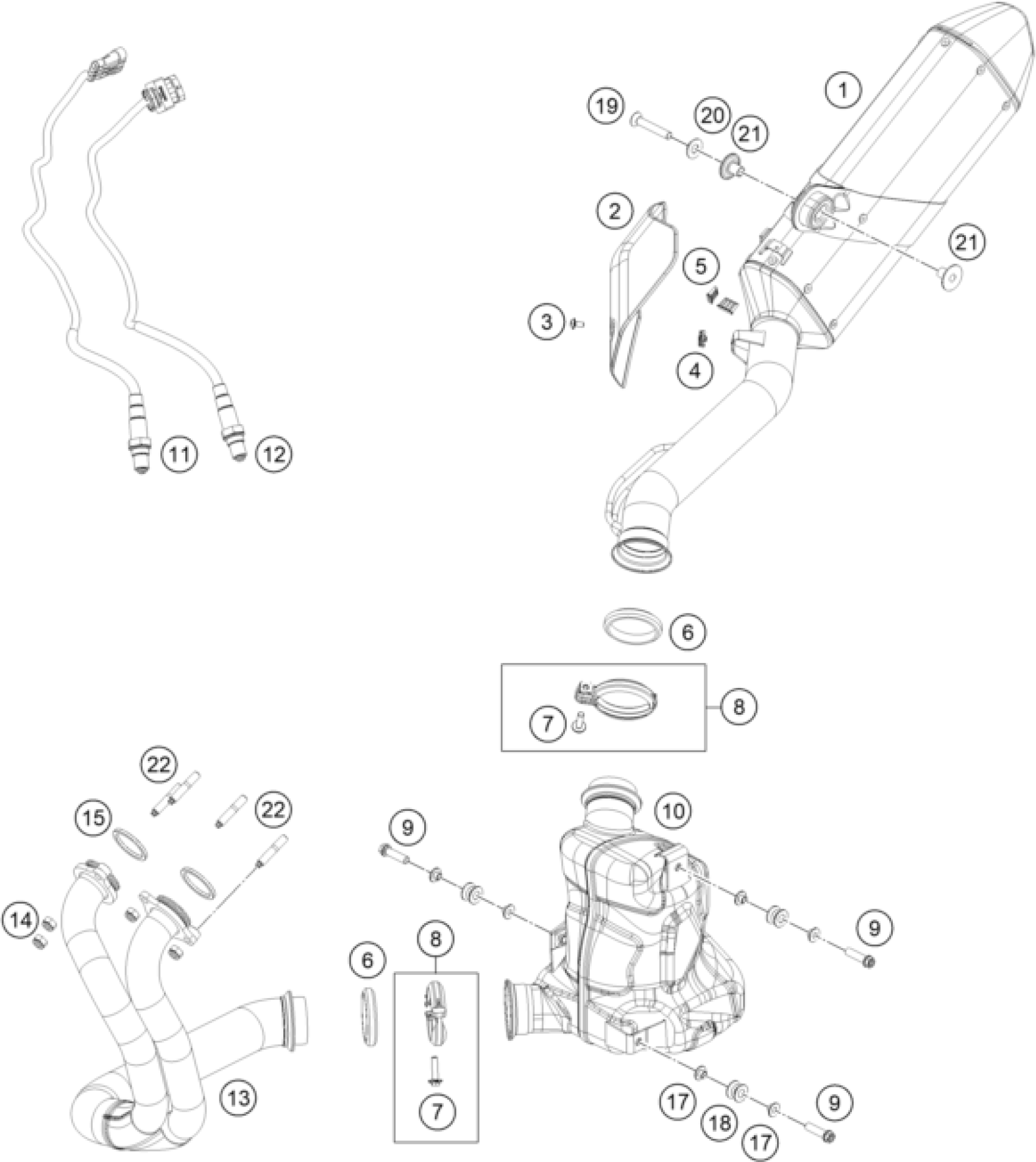

KTM 790 ADVENTURE, orange - CKD 2021 EXHAUST SYSTEM Diagram

#

Description
Price

1

Silencer

63505183000

Unavailable

2

Heat protection black cmpl.

63505111000C1

Unavailable

3

Torx screw M5x10 black

78105181010

Unavailable

4

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

5

DAMPING ELEMENT SILICON

27005011011

Unavailable

6

Manifold gasket

69005105005

Unavailable

7

HH collar screw M6x25 TX30

0025060256

Unavailable

8

Exhaust clamp tube 50 mm

63605058000

Unavailable

9

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

10

Pre-muffler

64105050000

Unavailable

11

O2 Sensor LSF 4

63541090000

Unavailable

12

O2 Sensor LSF 4

63541190000

Unavailable

13

Header

64105007100

Unavailable

14

self-locking nut M8 Cu

51010086100

Unavailable

15

Exhaust gasket

64105005000

Unavailable

17

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

18

damp. component silicone grey

54305068100

Unavailable

19

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

Unavailable

20

Shape disc Alu

60405069000

Unavailable

21

Bushing 8.5X11X29

61305069000

Unavailable

22

stud screw 835 M8x25 - 10.9

63505015000

Unavailable
