Description

Price

1

handlebar L=813mm, Dk=28.5mm

A64602101000C1

Unavailable

2

Clutch cable

C66102090000

Unavailable

3

PVC clamp 6.4 MM Heyman

64132070000

$1.49

4

HH collar screw M5x12 TX30

C0000250501200

$1.49

6

Grip tube (no heating)

60702012000

$74.51

7

Ride-by-wire without throttle

60711012000

$100.88

8

SCREW SET START-STOP SWITCH

76011073110

$6.72

9

Start / emergency stop switch

A61011074000

$94.15

10

Screw set start-stop switch

61411174010

$5.23

11

Combination switch

76011270200

$88.39

12

Grip LHS w/o heater

60702039100

$86.29

13

Rear view mirror, right

C90712041000

$48.61

14

Rear view mirror, left

C90712040000

$48.61

15

clutch lever cmpl.

A64602131000

Unavailable

16

Clamp cpl. incl. 2 screws

6350204400030

$8.69

17

Clutch lever

63502040000

$103.03

18

Kit lever pin

64102038000

$14.39

19

Switch

63511049000

$48.52

20

Handguard kit, left + right, c

A61002082044C11

$132.29

21

Line guide

C90713026000

$2.52

22

RUBBER CABLE TIE 45MM 03

C90711093045

Unavailable

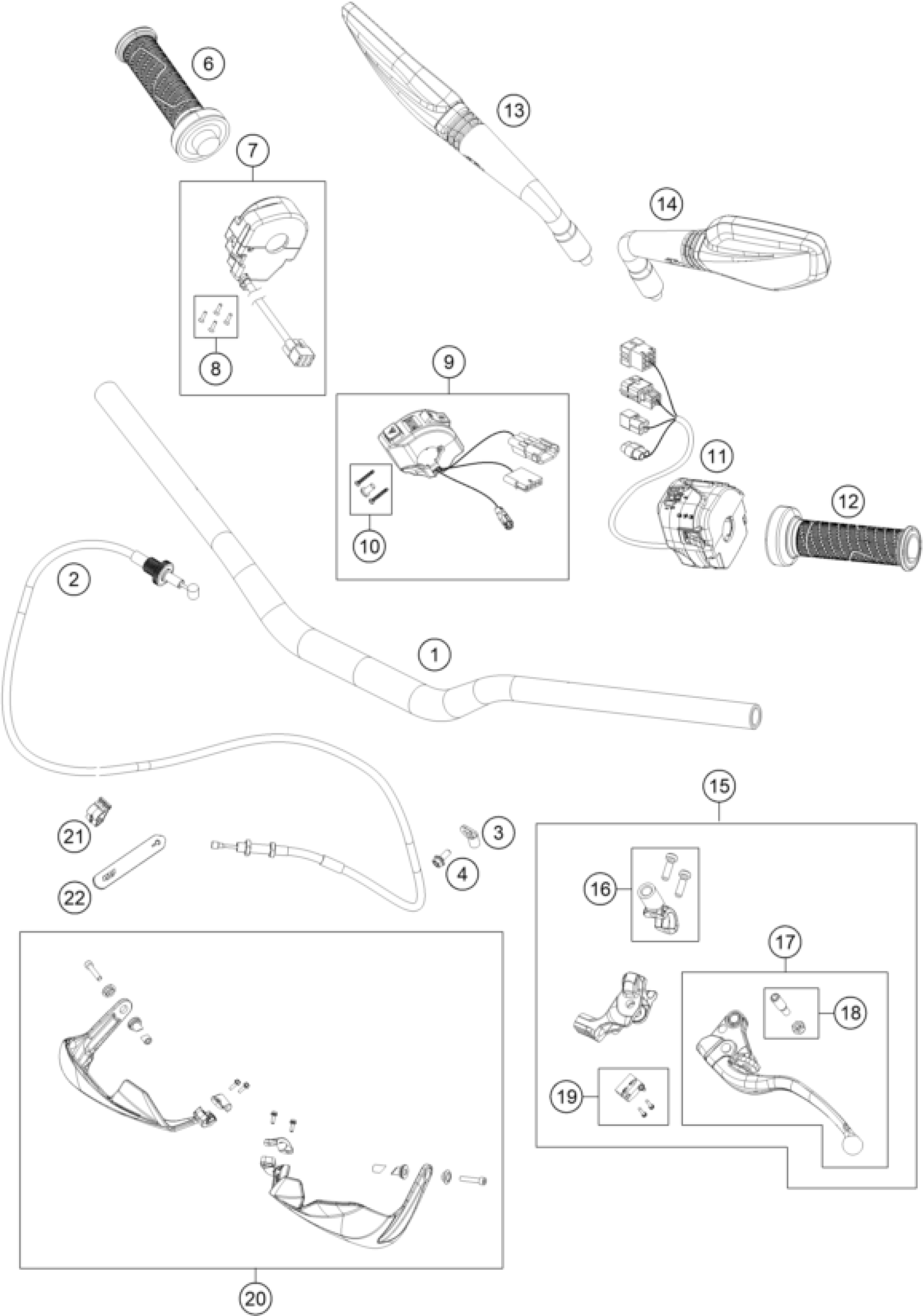

KTM 790 ADVENTURE, orange 2025 HANDLEBAR, CONTROLS Diagram

handlebar L=813mm, Dk=28.5mm

Clutch cable

PVC clamp 6.4 MM Heyman

HH collar screw M5x12 TX30

Grip tube (no heating)

Ride-by-wire without throttle

SCREW SET START-STOP SWITCH

Start / emergency stop switch

Screw set start-stop switch

Combination switch

Grip LHS w/o heater

Rear view mirror, right

Rear view mirror, left

clutch lever cmpl.

Clamp cpl. incl. 2 screws

Clutch lever

Kit lever pin

Switch

Handguard kit, left + right, c

Line guide

RUBBER CABLE TIE 45MM 03
