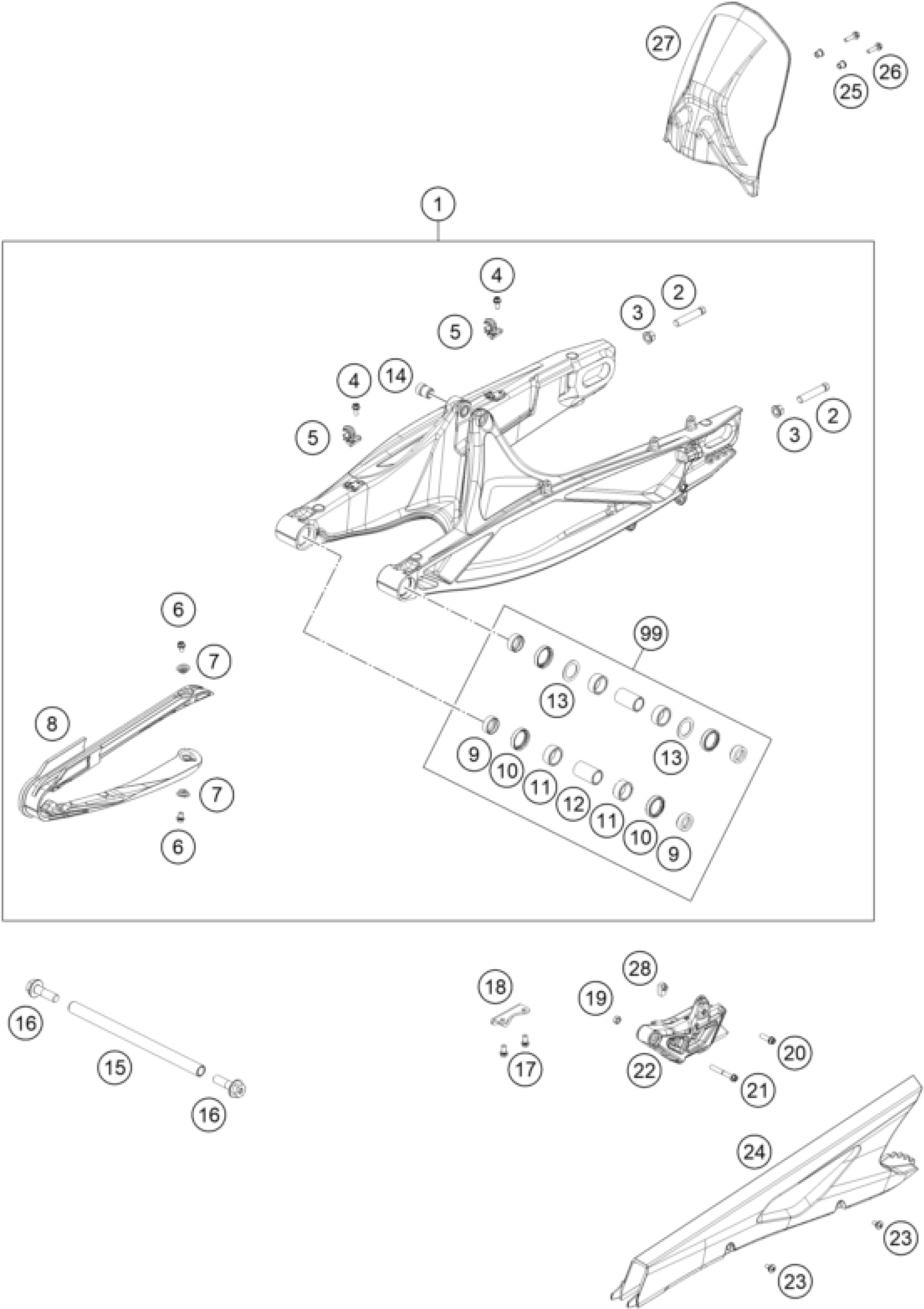

KTM 790 ADVENTURE, orange 2025 SWING ARM Diagram

Swingarm cpml. Black

C63504030044C1

$570.72

HH collar nut M10X1,25 WS=13

C0910001001000

Unavailable

screw M10x1.25x50 WS10

50304040100

$5.23

HH collar screw M5x12 TX30

C0000250501200

$1.49

Brake hose bracket

C90704142000

$1.49

HH collar screw M5x12 TX30

C0000250501200

$1.49

Bushing chain slider

C90704066050

$2.05

chain slide protection

C90704066000

$23.65

BUCKET F. SHAFT SEAL RING 03

C90704034000

$5.23

radial shaft seal 25x32x7

C0760002532000

$2.05

Needle bushing 22x28x12

C0430002201200

$3.08

BEARING SLEEVE 17X22X38,7 03

C90704032000

$9.62

Stop disk 22.2x31.7x1

C90703036000

$1.49

Bushing Shock Mounting

C90704030020

$12.43

Swing arm bolt

C64104037000

Unavailable

Special screw M12x40 WS19

C90704038000

$18.13

HH collar screw M6x12 TX30

C0000250601200

$1.49

Retaining bracket, chain guide

C63504030010

$3.73

hexagon nut DIN 934 M6

C0009340600502

$1.49

HH collar screw M6x20 TX30

C0000250602000

$1.49

HH COLLAR SCREW M6X45 TX30

C0000250604500

$1.49

CHAIN GUIDE CPL.

78004070100

$43.94

Special screw M5x12

69008121160

$1.67

Chainguard

C63504061000

$19.44

Bushing 5.5x8.3x9

C64104150010

$1.96

HH collar screw M5x20 TX30

C0000250502000

$1.49

splash protection swingarm

C63504050000

$9.72

Insertion nut f chain guide

C77304070030

Unavailable

Swing arm repair kit

C90704030010

$44.68
