Description

Price

1

Fork outer tube 44x560 dt54 db

43578142

$136.69

2

Fork protection ring d43

43578206

$2.05

3

O-ring 40x2,5 VMQ70 red ISO 36

43578219

$4.11

4

axle clamp right d43mm black c

43578198S1

$473.57

5

axle clamp left d43mm black cp

43578197S1

$421.02

6

HH collar screw M8x20

0025080206

$2.05

7

Cartridge right 890 ADV 23 cpl

43578176S8

$408.21

8

Cartridge left 890 ADV 23 cpl.

43578195S8

$408.21

9

Screw cap M51x1.5 black right

43578240S

$108.08

10

Screw cap M51x1.5 black left c

43578239S

$106.86

11

O-ring 45x2 NBR70 siliconized

46810340

$1.49

12

Mainspring (38,3) 6,5-480 fork

43578190

$93.49

13

Sticker set, APEX PRO OC 90x40

52000209SET

$46.74

14

GUIDE BUSHING SET

R14042T

Unavailable

15

Fork sealing kit 43mm

R516T

Unavailable

16

AH bolt M10x25 set

R14032

Unavailable

17

Shim Kit Fork

RP80002

Unavailable

18

Adjuster kit fork

RP10026

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

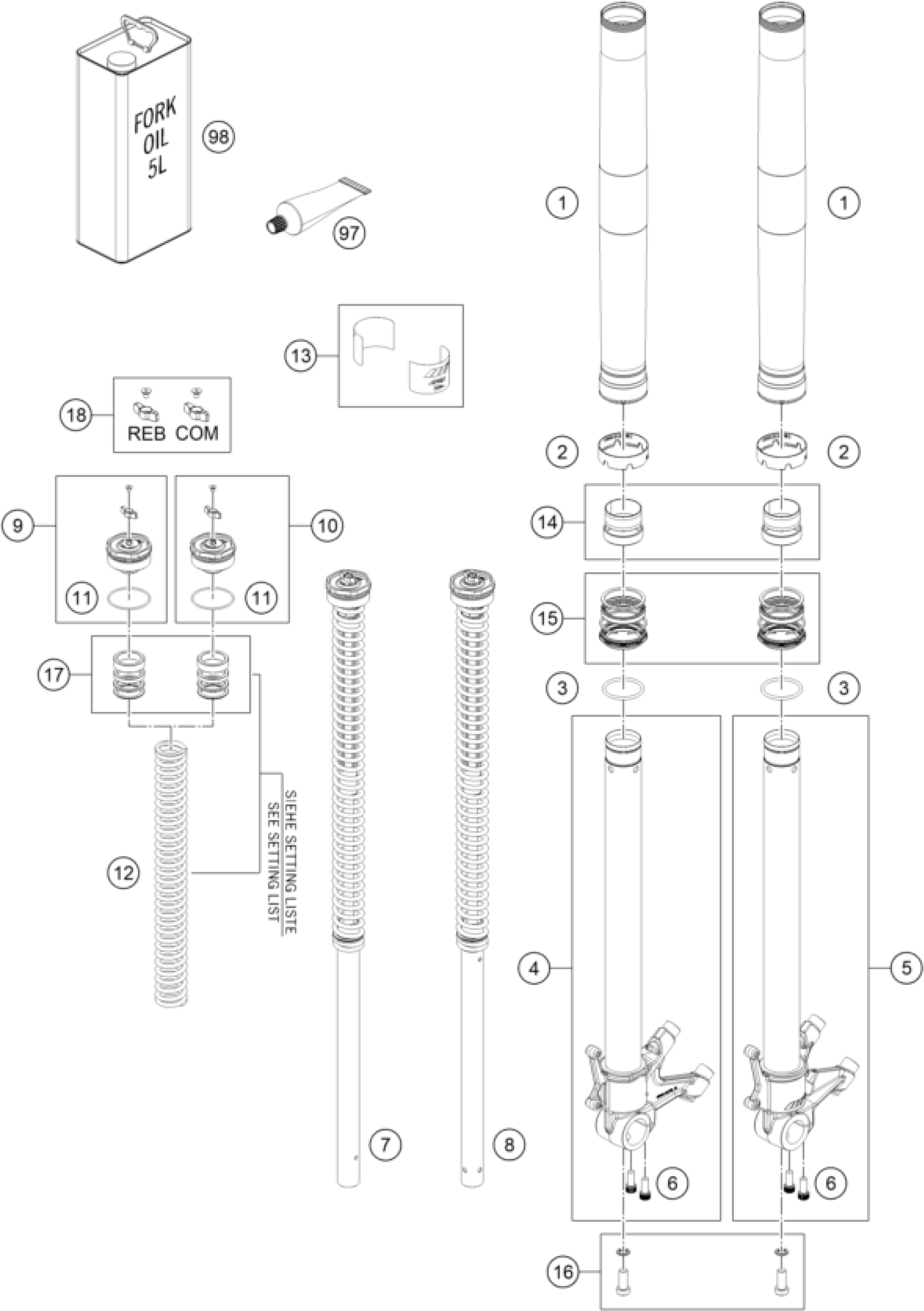

KTM 790 ADVENTURE, orange 2025 FRONT FORK DISASSEMBLED Diagram

Fork outer tube 44x560 dt54 db

Fork protection ring d43

O-ring 40x2,5 VMQ70 red ISO 36

axle clamp right d43mm black c

axle clamp left d43mm black cp

HH collar screw M8x20

Cartridge right 890 ADV 23 cpl

Cartridge left 890 ADV 23 cpl.

Screw cap M51x1.5 black right

Screw cap M51x1.5 black left c

O-ring 45x2 NBR70 siliconized

Mainspring (38,3) 6,5-480 fork

Sticker set, APEX PRO OC 90x40

GUIDE BUSHING SET

Fork sealing kit 43mm

AH bolt M10x25 set

Shim Kit Fork

Adjuster kit fork

Fuchs grease IPR (250g)

Fork Fluid Viscosity 4.0 5L
