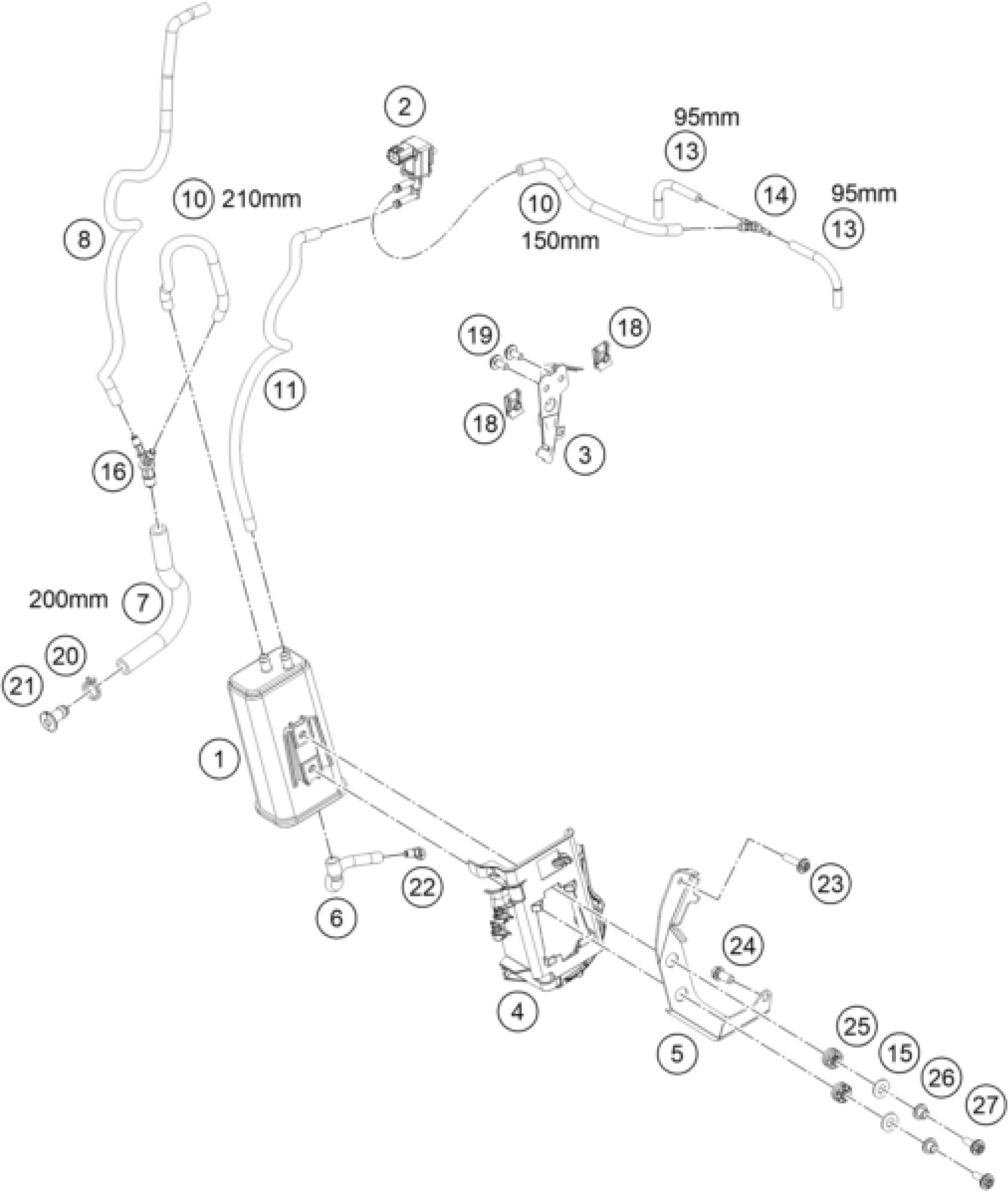

KTM 790 ADVENTURE, orange 2025 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

CARBON CANISTER

75015001200

Unavailable

2

Purge valve

A62415015000

Unavailable

3

Retaining bracket ACF valve cp

C66115015115C1

Unavailable

4

Hose clip ACF

C63515003010

Unavailable

5

Retaining bracket ACF

C63515002010C1

Unavailable

6

Hose ACF venting

C61015021000

Unavailable

7

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

8

hose tank vent 688mm

C63515024100

Unavailable

10

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

11

Hose ACF purge valve

C66115028000

Unavailable

13

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

14

Tube conector

C90015126000

Unavailable

15

shim

50337073000

Unavailable

16

Y-connector YS 6-10-6

C0610001100400

Unavailable

18

clip nut M6

54603048100

Unavailable

19

HH Collar screw M6x13 TX30

C0000240601300

Unavailable

20

YDNAC-clip 10173 (16mm)

C0310000801600

Unavailable

21

ACF plug

C90715026000

Unavailable

22

Angle piece for overrun

C63503098030

Unavailable

23

HH COLLAR SCREW M6X25 TX30

C0000240602500

Unavailable

24

HH collar screw M6x16 TX30

C0000250601600

Unavailable

25

DUMPER 40 SHORE

C62142041100

Unavailable

26

collar bushing 6.1x9.2x15x8.5x

C69014015000

Unavailable

27

special screw M6x18-8.8 ISA30

C0900000601800S

Unavailable
